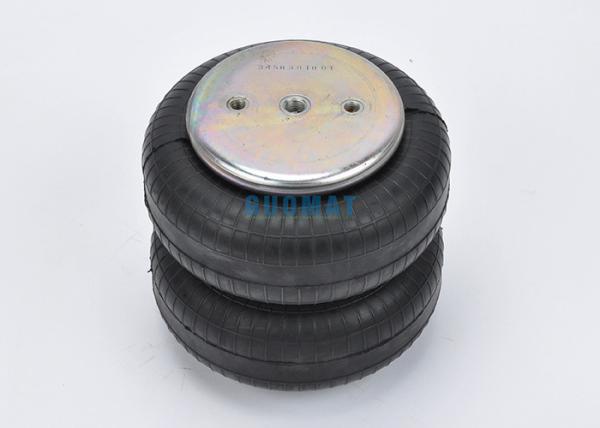

W01-358-8006 Firestone Industrial Air Spring For Truck Suspension Parts
W01-358-8006 Firestone Industrial Air Spring For Truck Suspension Parts
W01-358-8006 Firestone Industrial Air Spring For Truck Suspension Parts
W01-358-8006 Firestone Industrial Air Spring For Truck Suspension Parts
W01-358-8006 Firestone Industrial Air Spring For Truck Suspension Parts
W01-358-8006 Firestone Industrial Air Spring For Truck Suspension Parts
W01-358-8006 Firestone Industrial Air Spring For Truck Suspension Parts
W01-358-8006 Firestone Industrial Air Spring For Truck Suspension Parts
W01-358-8006 Firestone Industrial Air Spring For Truck Suspension Parts
W01-358-8006 Firestone Industrial Air Spring For Truck Suspension Parts
Specifications
Brand Name :
GUOMAT
Model Number :
3B12-304
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Product NO. :
3B12-304
Max Diameter :
330mm
Plate Diameter :
231mm
Working Stroke :
117mm~460mm
Quality :
100% Tested
Manufacturer :
GUOMAT
Warranty :
1 Year
Operation :
Gas-Filled
Description

Brand New W01-358-8006 Firestone Industrial Air Spring For Truck Suspension Parts

Product Introduction

Our high-performance actuator is expertly designed to provide unparalleled performance and remarkable versatility, catering to a diverse range of applications. At the core of its robust design lies a crimped assembly, engineered to deliver superior strength and reliability. Adding to its exceptional framework is a convoluted bellow that is meticulously manufactured using Natural Rubber.

Natural Rubber is esteemed for its outstanding dynamic performance and universal qualities, ensuring the actuator remains powerful and effective under various operating scenarios. This unique combination of materials and engineering precision ensures our actuator offers not only reliability but also adaptability across an array of demanding conditions.

Product Parameters

Screw Center Distance of Top Cover Plate:157.5mm
Screw Center Distance of Bottom Cover Plate:157.5mm
Top Cover Plate Diameter:231mm
Bottom Cover Plate Diameter:231mm
The Working Stroke:MAX 460 mm to MIN 117mm
Maximum Height : 460 mm
Minimum Height :117mm
Compression Height :343mm

OEM Number

Firestone

W01-358-8006, W01 358 8006, W013588006

WO1-358-8006, WO1 358 8006, WO13588006

Contitech

FT 330-29 430, FT 33029 430, FT 330 29 430

FT330-29 430, FT33029 430, FT330 29 430

Goodyear

3B12-304, ​3B12304, ​3B12 304

​3B 12-304, ​3B 12 304, ​3B 12304

Triangle

6334, 4430

Leland

Sc2132

Arvin Meritor

200620


Product Applications

  • Scissor lift
  • Hopper vibration and damping
  • Mechanical handling stop
  • Quick lock device
  • Reel tensioning
  • Machine isolation
  • Direct force
  • Impact absorbtion
  • Roller tensioning
  • Platform lift
  • Short stroke mechanical linkage
  • Hot foll stamping press

Product Detailed Pictures


W01-358-8006 Firestone Industrial Air Spring For Truck Suspension PartsW01-358-8006 Firestone Industrial Air Spring For Truck Suspension PartsW01-358-8006 Firestone Industrial Air Spring For Truck Suspension PartsW01-358-8006 Firestone Industrial Air Spring For Truck Suspension PartsW01-358-8006 Firestone Industrial Air Spring For Truck Suspension Parts
