Specifications
Brand Name :
GUOMAT
Model Number :
3B12-335
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Structure :
Triple Cylinder
Max Diameter :
330mm
Brand :
GUOMAT
Warranty :
1 Year
Type :
Gas-Filled
Material :
Rubber And Steel
OEM Number :
W01-358-7996
Description

Contitech Air Bellows FT 330-29 520 Air Ride Suspension For Machine Isolation

Product Details

Bottom Plate Alignment Parallel
Bottom Plate Center To Center Diameter 157.5 mm
Bottom Plate Diameter 231 mm
Bottom Plate Hole Quantity 1
Bottom Plate Type Steel
Top Plate Alignment Parallel
Top Plate Center To Center Diameter 157.5 mm
Top Plate Diameter 231 mm
Top Plate Hole Quantity 2
Top Plate Type Steel
Bellow Maximum Diameter 330 mm
Expanded Height 460 mm
Compressed Height 117 mm
Bellows Structure Triple Convoluted
Nut/Blind Nuts Type 3/8-16UNC
Air Inlet 1/4 NPTF

Goodyear Triple Bellow Air Spring

Contitech

FT 330-29 520, FT330-29 520, FT33029 520

FT330 29 520, FT 33029 520, FT 330 29 520

Firestone

W01-358-7996, W01 358 7996, W013587996

WO1-358-7996, WO1 358 7996, WO13587996

W01-358-7938, W01 358 7938, W013587938

WO1-358-7938, WO1 358 7938, WO13587938

Goodyear

3B12-335, 3B 12-335, 3B12335

3B12 335, 3B 12335, 3B 12 335, 578933100

Triangle

6334, 4520

Granning/Tuthill

8221


The Structure of GUOAMT Air Spring


1. Is a rubber component, which is formed by vulcanization of a cord layer, an inner and outer rubber layer or a steel wire ring to form a flexible body, and realizes an elastic function by filling the compressibility of air. Commonly known as air springs, rubber airbags, airbags, etc.
2. Assembled by the rubber air spring, the base, the base (piston), the overall shape of the mat assembled into a sealed cavity.
3. According to the shape is divided into three categories of capsules, film and sleeves. The sealing structure consists of four types: pressure self-forming, flange clamping, hoop sealing and mixing.
4. The load of the air spring shock absorber is mainly carried by the cord, the curtain layer is mainly composed of 2 layers, and the special requirements of the product are composed of 4 layers of cord. The inner glue mainly serves as a sealing function, and in addition to the sealing effect of the outer rubber, it also plays a protective role.

Triple Convoluted Air Actuator OEM Number

3B12-304 3B12-305 FT 330-29 CI SP2910
3B14-351 3B14-353 FT 430-32 CI SP2895
3B14-354 3B15-375 FT 530-32 CI SP2923
3B15-376 3B15-377 FT 530-35 CI SP2861
3B15-378 FT 960-34 CI SP2863
FT 1330-35 CI SP1539
SP1542
SP1558
SP2141

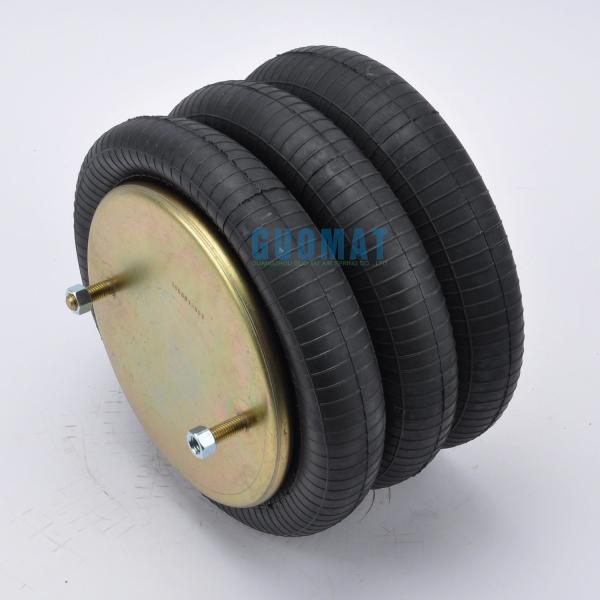

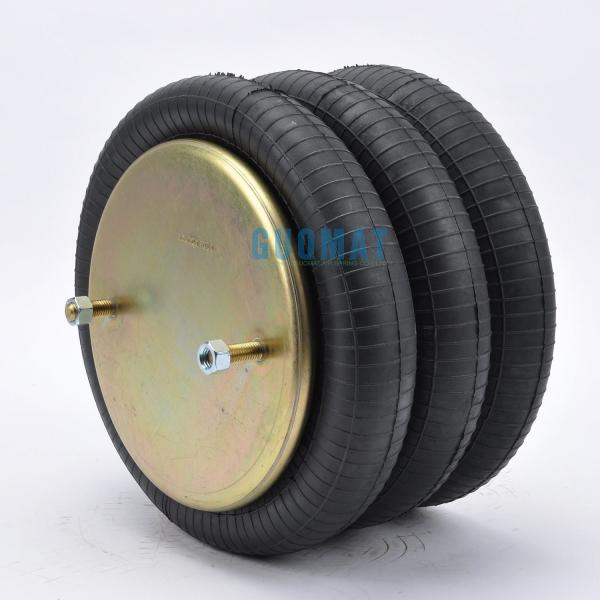

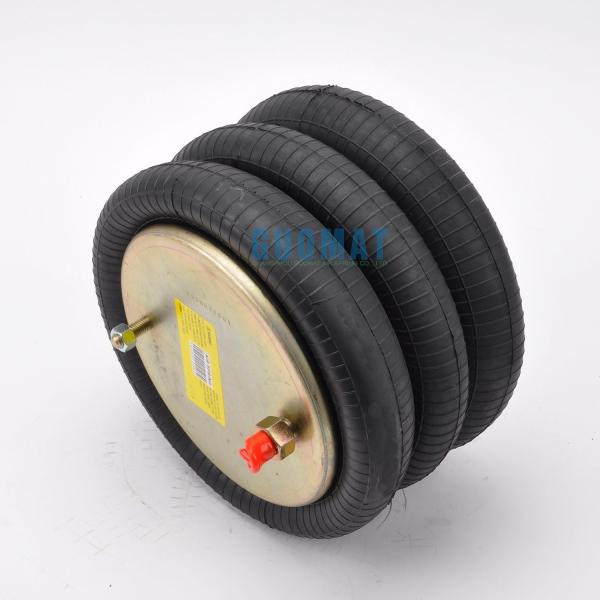

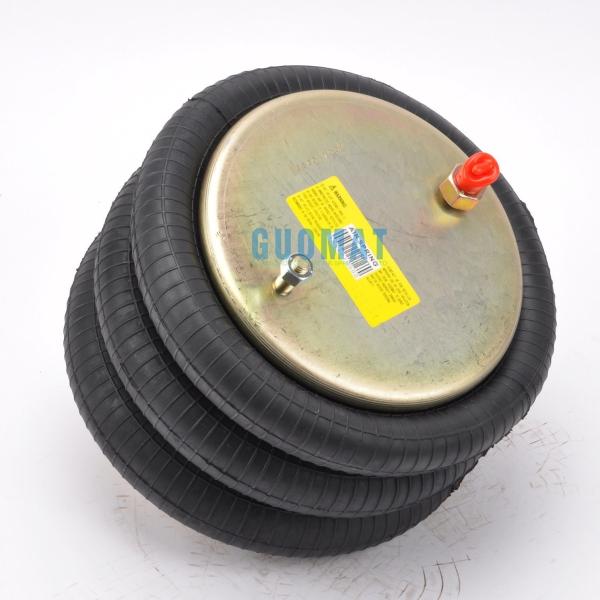

Product Images

Contitech Air Bellows FT 330-29 520 Air Ride Suspension For Machine IsolationContitech Air Bellows FT 330-29 520 Air Ride Suspension For Machine IsolationContitech Air Bellows FT 330-29 520 Air Ride Suspension For Machine IsolationContitech Air Bellows FT 330-29 520 Air Ride Suspension For Machine IsolationContitech Air Bellows FT 330-29 520 Air Ride Suspension For Machine IsolationContitech Air Bellows FT 330-29 520 Air Ride Suspension For Machine Isolation
