Specifications
Brand Name :
GUOMAT
Model Number :
1B6910
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
1B6910
Function :
Reduce Shock
Manufacturer :
GUOMAT
Warranty :
1 Year
Firestone :
W01-M58-6374
Nut Type :
2×M8
Total Storke :
89 MM
Production Process :
Vulcanization
Description

Suspension Air Spring FS200-10 Contitech Air Actuator For Pneumatic Lift Air Shock

Product Information

Top Cover Plate Diameter 161 mm
Screw Center Distance of Top Cover Plate 89 mm
Bottom Cover Plate Diameter 161 mm
Screw Center Distance of Bottom Cover Plate 89 mm
Top Cover Plate Screw(Nut) Tooth 2×M8
Bottom Cover Plate Screw(Nut) Tooth 2×M8
Gas Hole G 1/4
Rubber Bellow Max Dia 250 mm
Minimum Height 51 mm
Maximum Height 140 mm
Total Storke 89 mm

OEM Numbers

  • Contitech

FS 200-10, FS 200 10, FS200-10, FS20010, FS 20010, fs 200-10, fs 200 10, fs20010, fs 20010

  • Firestone

W01-M58-6374, W01 M58 6374, W01M586374, WO1-M58-6374, WO1 M58 6374, WO1M586374

  • Phoenix

SP 1B 12, SP1B 12, SP 1B12, SP1B12

  • Dunlop(FR)

9''x1/4x1 s09101, 9'x1/4x1 s09101, 9x1/4x1 s09101, 9''x1/4x1 S09101, 9'x1/4x1 S09101, 9x1/4x1 S09101

  • Bosch

822419004

  • Festo

EB-250-85, EB 250-85, EB 250 85, EB-250 85, EB25085

  • Norgren

PM/31091(8 1/4x1), PM31091(8 1/4x1), PM 31091(8 1/4x1)

Single Convoluted Air Spring Other Technical Data

Item code

Max. diameter

(mm)

Max. stroke

(mm)

Min. height

(kN)

Max. stroke

(kN)

Standard air

inlet

Force with p = 8 bar
FS 40-6 CI 145 60 6.9 2.4 G 1/8
FS 50-5 CI 150 44 9.0 2.2 G 1/4
FS 70-7 CI 165 64 9.9 5.2 G 1/4
FS 100-10 CI 210 94 14.7 1.6 G 3/4
FS 120-9 CI 215 85 17.7 6.6 G 3/4
FS 120-10 CI 231 99 19.5 4.6 G 3/4
FS 120-12 CI 235 119 18.7 7.2 G 3/4
FS 200-10 CI 250 89 23.8 9.1 G 3/4

Support and Services
The Suspension Air Springs product technical support and services include:

  • Expert troubleshooting assistance to diagnose and resolve technical issues
  • Guidance on proper installation and maintenance procedures
  • Product documentation, including user manuals and technical specifications
  • Product training and education for customers and service technicians
  • Warranty and repair services, including replacement parts and exchange programs
  • Customer support for urgent technical issues or service needs

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
Suspension Air Spring FS200-10 Contitech Air Actuator For Pneumatic Lift Air Shock

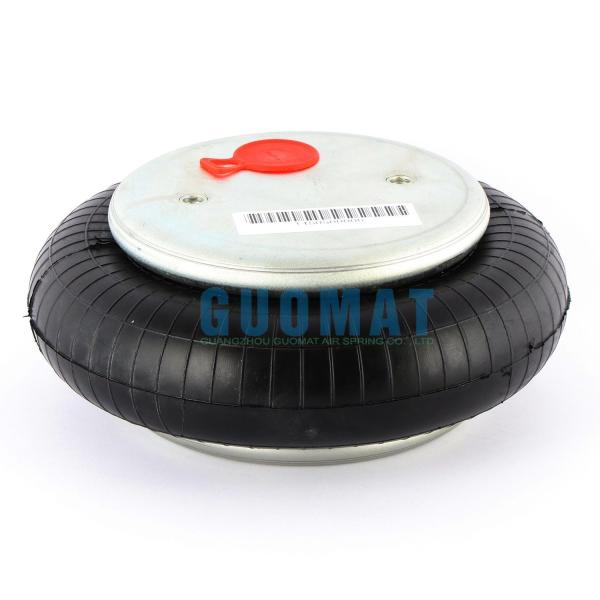

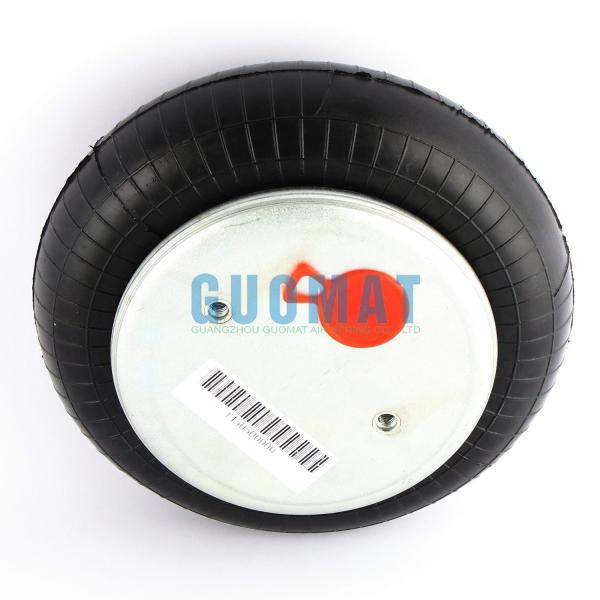

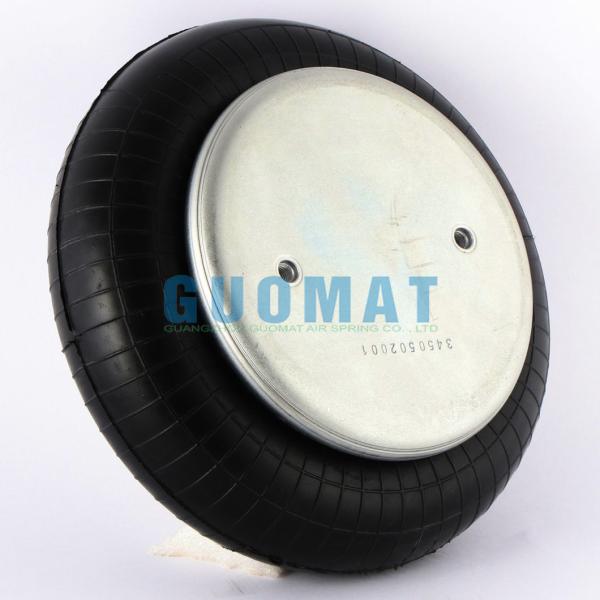

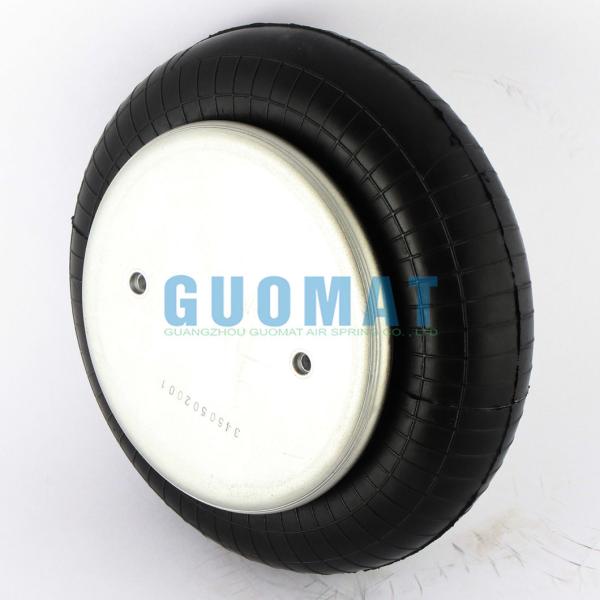

Product Images
