Specifications
Brand Name :
GUOMAT
Model Number :
2B12×2
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Product NO. :
2B12×2
Bellows Type :
Double Convoluted
Quality :
100 % Tested
Fuction :
Reduce Shock
Contitech :
FD 412-18 S
Trademark :
GUOMAT
Operation :
Gas-Filled
Custom Description :
Pneumatic Air Spring
Description

Flange Air Spring Dunlop FR SP256NB Air Shock Suspension Extend Service Life

Product Information

Rubber Bellow Diameter: 300mm

Design Height: 186mm

Bumper block: Without

Belt loop/Girdle Hoop: One piece

Screw Center Distance: 232 mm

Air Hole/Air Inlet/Gas Hole: Rp 1/2

Nut/Blind Nuts Type: M8

Min. pressure: 0 bar

Return force to min.height: ≤300N

Overall weight with clamped plates: 4.8kg

Product Technical Data Sheet

Force F[KN]

Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Height H[mm] 240 10.0 13.3 16.7 20.6 24.1 27.6 12.3
220 11.3 15.2 18.9 23.1 26.9 30.8 11.6
200 12.5 16.7 20.8 25.3 29.5 33.8 10.8
180 13.6 18.2 22.7 27.5 32.0 36.5 9.9
160 14.6 19.4 24.3 29.5 34.3 39.1 8.9
140 15.4 20.5 25.5 31.1 36.3 41.3 7.8
120 16.3 21.4 26.7 32.7 38.2 43.4 6.7
100 16.8 22.1 27.8 34.1 39.8 45.0

5.5

Cross References

Contitech FD 412-18S
Dunlop FR SP 256 NB, SP 1541 NB, SP 1025 NB, SP 2665 NB(12×2)
Firestone Fole 210 095.008
Airkraft 113301, 113300, 113305
Grat T291, 2B-300, 2B 300, 114300
Granning 15603
Kaiser A06030616

Product Applications

  1. Gate Valve Operator
  2. Glue Coating Machine
  3. Web Tightening Tool
  4. Stripper
  5. Tool Spring Driver
  6. Quenching Drain Driver
  7. Paper Mill
  8. Pickling Tank Driver

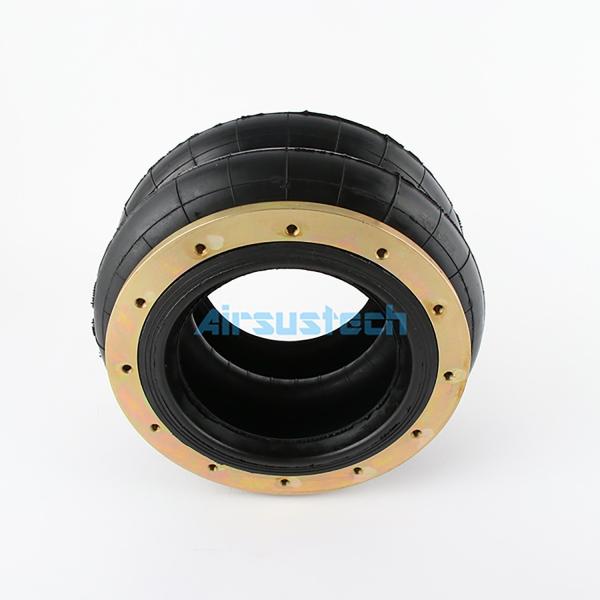

The Related Picture of 2B12×2


Flange Air Spring Dunlop FR SP256NB Air Shock Suspension Extend Service LifeFlange Air Spring Dunlop FR SP256NB Air Shock Suspension Extend Service Life
