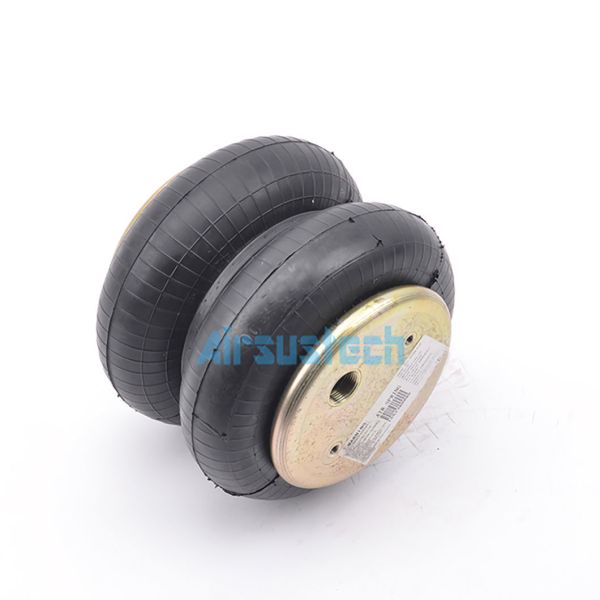

Contitech FD 200-19/2682045000 G3/4 Double Convoluted Rubber Air Spring

OEM NO.

Contitech : FD 200-19

Contitech : FD200-19

Contitech : FD 200 19

Contitech : FD200 19

Contitech : FD20019

Contitech 2682 045000

Contitech 2682045000

2B6910P34 Specifications and Tecnical Data

Nut/blind nut

Top plate screw (nut) teeth: 2 x M8×1.25

Top plate screw center distance: 89 mm

Bottom cover plate screw (nut) teeth: 2 x M8×1.25

Bottom plate screw center distance : 89 mm

Air hole/air inlet/air fitting

air hole/air inlet: G3/4

The distance between the screw center and the air inlet: 38mm

Cover plate

Top plate diameter (width): 160 mm

bottom cover diameter (width): 160 mm

bell-shaped rubber bellows

rubber bellows diameter: 224 mm

Max. rubber bellows diameter: 251mm

Height

Min. height: 75mm

Max. height: 260mm

Bumper block/bumper block

without bumper

Belt loop/Girdle hoop/Girdle ring

with one belt loop

Min. pressure: 0 bar

Return force to min.height: ≤200N

Overall weight with clamped plates: 3.2kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 220mm, minimum 205mm

Pneumatic application-static characteristic values

Force F[KN]

Air Springs

Rubber air springs use rubber elasticity and air pressure to obtain comprehensive shock absorption, shock absorption, shock isolation, noise prevention and cushioning performance. According to the sealing structure, it is divided into four categories: pressure self-sealing type, rim clamping type, hoop sealing type and hybrid type. The load of the rubber air spring is mainly borne by the cord, and the number of layers of the cord is mainly composed of 2 layers. The product is required to consist of 4 layers of cord. The inner layer of rubber is mainly used for sealing, and the outer layer of rubber is not only for sealing, but also for protection.

This rubber air spring can be used in vibration damping equipment. It can better achieve vibration isolation and ensure the safety and stability of the base and control system of the vibration equipment by utilizing the characteristics of high frequency vibration isolation, sound insulation and low natural vibration frequency. Such as vibration isolation of vibrating screens, vibration reduction of luxury vehicle seats and other equipment.
