Original Guomat 1H320124 Single Convoluted Piston Air Spring With Flange Connection
Original Guomat 1H320124 Single Convoluted Piston Air Spring With Flange Connection
Original Guomat 1H320124 Single Convoluted Piston Air Spring With Flange Connection
Original Guomat 1H320124 Single Convoluted Piston Air Spring With Flange Connection
Original Guomat 1H320124 Single Convoluted Piston Air Spring With Flange Connection
Original Guomat 1H320124 Single Convoluted Piston Air Spring With Flange Connection
Original Guomat 1H320124 Single Convoluted Piston Air Spring With Flange Connection
Original Guomat 1H320124 Single Convoluted Piston Air Spring With Flange Connection
Original Guomat 1H320124 Single Convoluted Piston Air Spring With Flange Connection
Original Guomat 1H320124 Single Convoluted Piston Air Spring With Flange Connection
Specifications
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Carton/Cartons
Brand Name :
GUOMAT
Model Number :
1H320124
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
Model NO. :
1H320124
Function :
Reduce Shock
Condition :
Brand New
Transport Package :
Cartons
Trademark :
GUOMAT
Origin :
Guangzhou
After-sales Service :
1 Year
Type :
Gas-Filled
Description

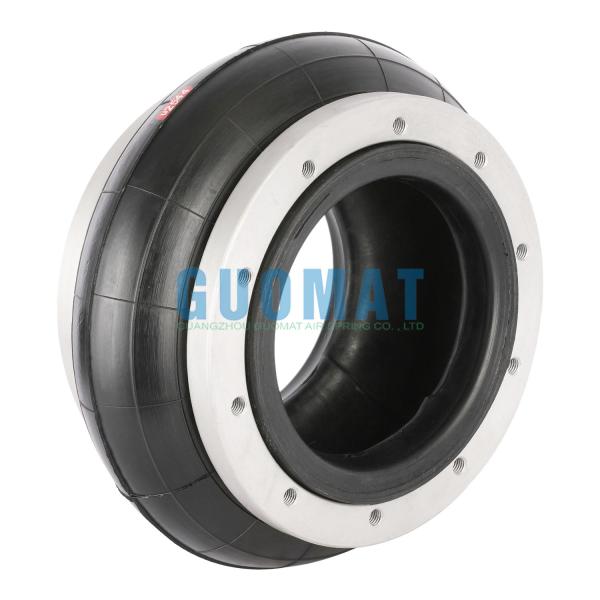

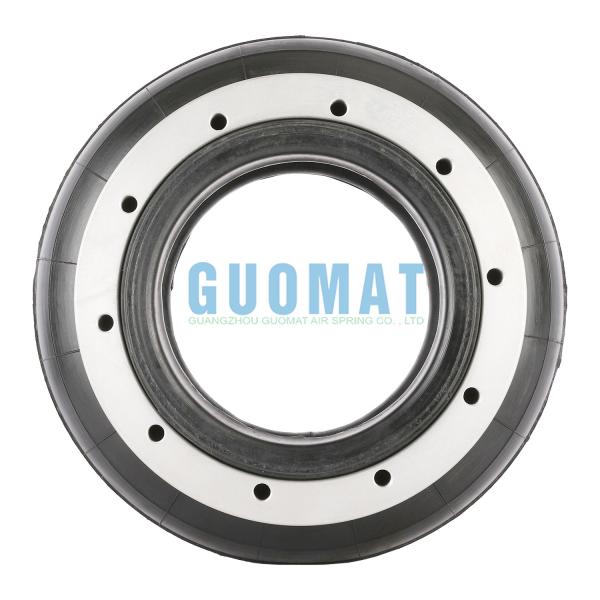

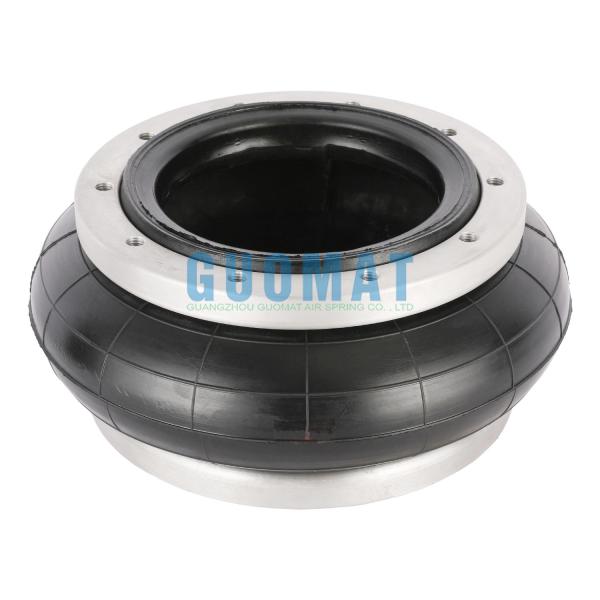

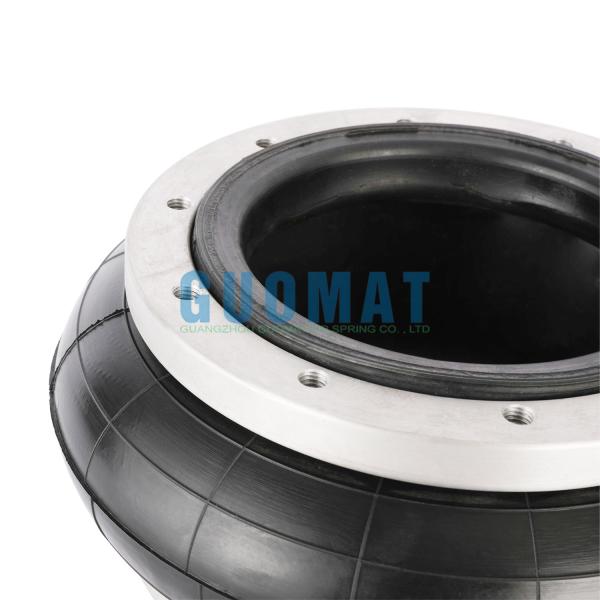

Original Guomat 1H320124 Single Convoluted Piston Air Spring with Flange Connection

About Air Spring

Air spring is a shock absorbing device that uses air as an elastic medium, with good adjustability and comfort. Its working principle is to absorb external vibrations through the compression and expansion of air, thereby playing a role in shock absorption and buffering. Compared with traditional metal springs, air springs can provide more uniform elastic response and higher adaptability.

1H320124 Technical Data

Diameter 230mm
Minimum Compression 52mm
Extend 142mm
Full Stroke 90mm
Rubber Bellows Max Diameter 340mm (At 0.7Mpa)
Natural Height 124mm
Cover Plate Diameter 235mm

Flange Connection Air Spring Advantages

  1. Significant shock absorption effect: It can effectively reduce equipment vibration and avoid equipment damage due to frequent vibration.
  2. Strong adjustability: By adjusting the air pressure, the stiffness of the spring can be adjusted according to different working conditions to achieve the ideal shock absorption effect.
  3. Extend equipment life: Reduce wear of mechanical parts, extend the service life of the equipment, and reduce maintenance costs.
  4. Easy installation: The flange design makes the installation and removal of the air spring easier and suitable for different models and types of equipment.

1B Style Air Spring OEM Number

GUOMAT NO. Cross References
1H5081 Torpress 89023
GART ARI.275
Pirelli Torpress 88540
Pirelli Torpress 88820
Pirelli Torpress 93079
Pirelli Torpress 89023
1K130070 Goodyear 1B5-500
Goodyear Rubber Bellows NO. 579-913-500
Air Lift 58218
Airkraft Style 1B120
ContiTech FS 50-5 CI 1/4 NPT
ContiTech Order No. 61388
Enidine YI 1B5 500
Enidine YI-FS50-5-000
Firestone No. W02-358-5000
Firestone W01-358-7609
Firestone Bellows No. 16-ST
Firestone No. W01-358-7001
Firestone Bellows No. 16
Firestone New Bellows No. 16B
Numatics ASNS1111
1B53014 Contitech FS 530-14
Triangle AS-4442
W01-358-7103
FleetPride AS7103
Goodyear 1B14-350
Goodyear Flex No. 578913351
Taurus 6326
TRP AS71030
Peerless 0550-00015
1B7070 Contitech FS 70-7
Phoenix SP 1B 05
Bosch 8224 19002
Festo EB-165-65
Weforma WBE 200-E1
Firestone W01-M58-6155
1B8×4 Firestone W01-358-7564
Goodyear 1B8-550
Contitech FS120-10


Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
