Specifications
Brand Name :
GUOMAT
Model Number :
F-120-2
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
F-120-2
Warranty :
One Year
Design High :
152 mm
Minimum Height :
82 mm
Stroke :
106 mm
Max Diameter :
180 mm
Function :
Reduce Vibration
Brand :
GUOMAT
Description

High Quality Air Spring S-120-2R by Yokohama Double Convoluted Rubber Bellows Only

Air Spring Introduction

Punch air springs are widely used in stamping and forming of electronics, communications, computers, household appliances, furniture, transportation, (automobiles, motorcycles, bicycles) hardware parts, etc. They are widely used in manufacturing industries such as precision machinery, instruments, computers, cameras, automobiles, motorcycles, computers, equipment, and household appliances.

F-120 items Detailed Parameter Table

GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-120-4 S-120-4 206 306 111 ±70 180
F-120-3 S-120-3 152 227 82 ±53 180
F-120-2 S-120-2 98 148 53 ±35 180

GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
F-120-4 M-120-4 113 3.4 5.2 69 1.8 0.88 2.9-3.9
F-120-3 M-120-3 113 2.1 5.2 98 2.2 0.88 2.9-3.9
F-120-2 M-120-2 113 1.25 5.2 157 2.7 0.88 2.9-3.9
F-100-4 M-100-4 79 1.95 3.9 59 1.9 0.88 2.9-3.9

Scope of Applications

  • Press
  • Punch
  • Mechanical punch
  • Pneumatic punch
  • Hydraulic punch
  • High-speed mechanical punch
  • High-frequency punch
  • CNC punch
  • Ordinary mechanical punch
  • Manual punch
  • Screw punch
  • Rack punch
  • Link punch
  • Cam punch
  • Papermaking equipment
  • Papermaking production line
  • Paper equipment

We Have Other Type Air Bellow Numbers

GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No. GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
F-600-1 S-600-1R S 600 1R F-240-4 S-240-4R S 240 4R
F-600-2 S-600-2R S 600 2R F-240-3 S-240-3R S 240 3R
F-600-3 S-600-3R S 600 3R F-240-2 S-240-2R S 240 2R
F-600-4 S-600-4R S 600 4R F-240-1 S-240-1R S 240 1R
F-600-5 S-600-5R S 600 5R F-220-4 S-220-4R S 220 4R
F-550-2 S-550-2R S 550 2R F-220-3 S-220-3R S 220 3R
F-550-3 S-550-3R S 550 3R F-220-2 S-220-2R S 220 2R
F-500-2 S-500-2R S 500 2R F-200-2 S-200-2R S 200 2R
F-500-3 S-500-3R S 500 3R F-200-3 S-200-3R S 200 3R
F-500-4 S-500-4R S 500 4R F-200-4 S-200-4R S 200 4R
F-500-5 S-500-5R S 500 5R F-160-1 S-160-1R S 160 1R
F-450-1 S-450-1R S 450 1R F-160-2 S-160-2R S 160 2R
F-450-2 S-450-2R S 450 2R F-160-3 S-160-3R S 160 3R
F-450-3 S-450-3R S 450 3R F-160-4 S-160-4R S 160 4R
F-450-4 S-450-4R S 450 4R F-120-4 S-120-4R S 120 4R
F-450-5 S-450-5R S 450 5R F-120-3 S-120-3R S 120 3R
F-400-2 S-400-2R S 400 2R F-120-2 S-120-2R S 120 2R
F-400-3 S-400-3R S 400 3R F-100-4 S-100-4R S 100 4R
F-400-4 S-400-4R S 400 4R F-90-3 S-90-3R S 90 3R
F-400-5 S-400-5R S 400 5R F-90-2 S-90-2R S 90 2R
F-350-1 S-350-1R S 350 1R F-90-1 S-90-1R S 90 1R
F-350-2 S-350-2R S 350 2R F-300-1 S-300-1R S 300 1R
F-350-3 S-350-3R S 350 3R F-300-2 S-300-2R S 300 2R
F-350-4 S-350-4R S 350 4R F-300-3 S-300-3R S 300 3R
F-300-4 S-300-4R S 300 4R

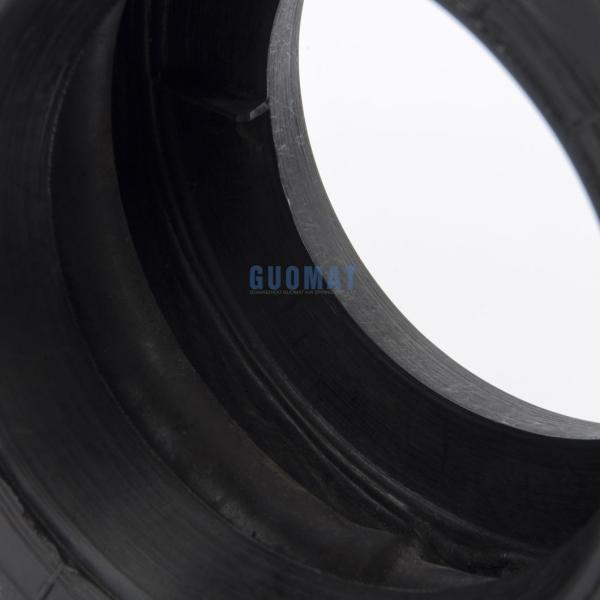

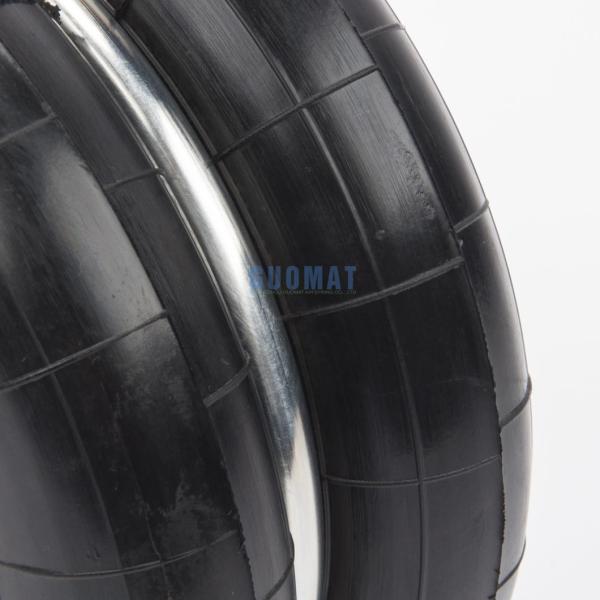

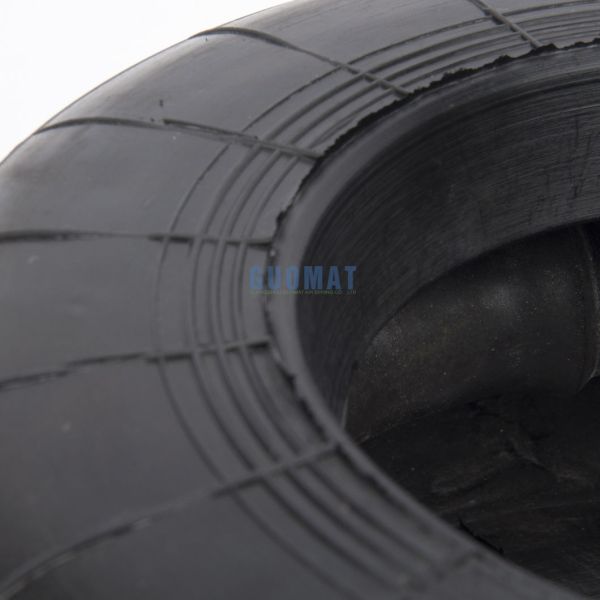

Details Pictures of Air spring F-120-2

High Quality Air Spring S-120-2R By Yokohama Double Convoluted Rubber Bellows Only
High Quality Air Spring S-120-2R By Yokohama Double Convoluted Rubber Bellows Only
High Quality Air Spring S-120-2R By Yokohama Double Convoluted Rubber Bellows Only
