Specifications
Brand Name :
GUOMAT
Model Number :
F-400-3
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Warranty :
One Year
Design High :
160 mm
Bumper Block :
Without
Minimum Height :
90 mm
Stroke :
136 mm
Max Diameter :
460 mm
Transport Package :
Cartons
Description

Punch Press Rubber Air Spring Yokohama S-400-3 Triple Type Air Rubber Bellow

F-400-3 Air Spring Description

This F-400-3 punch air spring is produced by the GUOMAT factory. The model of the YOKOHAMA punch air spring is S-400-3, the size is the same, they can be common. This GUOMAT NO.F-400-3 punch air spring warranty time for one year. Our product quality is guaranteed. We are exported to all over the world, the customer response is very good. Made in China air springs can be used with confidence, we are also very competitive in terms of price.

F-400-3 Air Bellow Specifications

GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-400-3 S-400-3 160 260 90 ±68 460

Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
1260 19.5 61.6 834 1.8 0.69 3.9-4.9

Air Spring Applications

  • Expanded Metal Machine
  • Concrete Brick Machine
  • Rotating Table with the Air Spring
  • Crushing Machine
  • Concrete Screening Machine
  • Carpet Extraction Machine
  • Commercial Laundry Machines
  • Coordinate Measuring Tables and Machinery
  • Centrifugal Separators
  • Large Drying Machines
  • Vibratory Conveyors
  • Electronic Equipment
  • Compressors
  • Conveyor Loading Points
  • Textile Looms
  • Rotary Shaft Actuators

GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below

GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No. GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
F-600-1 S-600-1R S 600 1R F-240-4 S-240-4R S 240 4R
F-600-2 S-600-2R S 600 2R F-240-3 S-240-3R S 240 3R
F-600-3 S-600-3R S 600 3R F-240-2 S-240-2R S 240 2R
F-600-4 S-600-4R S 600 4R F-240-1 S-240-1R S 240 1R
F-600-5 S-600-5R S 600 5R F-220-4 S-220-4R S 220 4R
F-550-2 S-550-2R S 550 2R F-220-3 S-220-3R S 220 3R
F-550-3 S-550-3R S 550 3R F-220-2 S-220-2R S 220 2R
F-500-2 S-500-2R S 500 2R F-200-2 S-200-2R S 200 2R
F-500-3 S-500-3R S 500 3R F-200-3 S-200-3R S 200 3R
F-500-4 S-500-4R S 500 4R F-200-4 S-200-4R S 200 4R
F-500-5 S-500-5R S 500 5R F-160-1 S-160-1R S 160 1R
F-450-1 S-450-1R S 450 1R F-160-2 S-160-2R S 160 2R
F-450-2 S-450-2R S 450 2R F-160-3 S-160-3R S 160 3R
F-450-3 S-450-3R S 450 3R F-160-4 S-160-4R S 160 4R
F-450-4 S-450-4R S 450 4R F-120-4 S-120-4R S 120 4R
F-450-5 S-450-5R S 450 5R F-120-3 S-120-3R S 120 3R
F-400-2 S-400-2R S 400 2R F-120-2 S-120-2R S 120 2R
F-400-3 S-400-3R S 400 3R F-100-4 S-100-4R S 100 4R
F-400-4 S-400-4R S 400 4R F-90-3 S-90-3R S 90 3R
F-400-5 S-400-5R S 400 5R F-90-2 S-90-2R S 90 2R
F-350-1 S-350-1R S 350 1R F-90-1 S-90-1R S 90 1R
F-350-2 S-350-2R S 350 2R F-300-1 S-300-1R S 300 1R
F-350-3 S-350-3R S 350 3R F-300-2 S-300-2R S 300 2R
F-350-4 S-350-4R S 350 4R F-300-3 S-300-3R S 300 3R
F-300-4 S-300-4R

S 300 4R

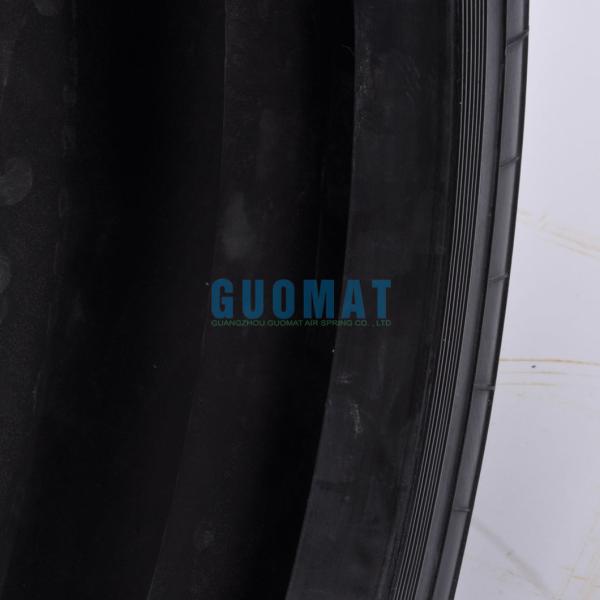

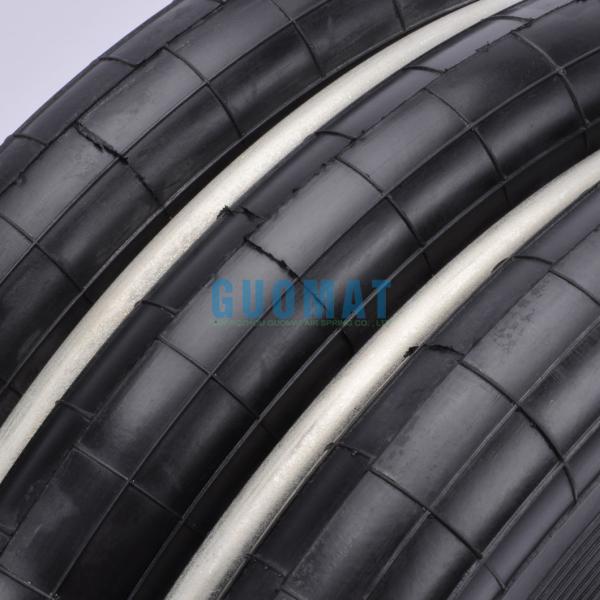

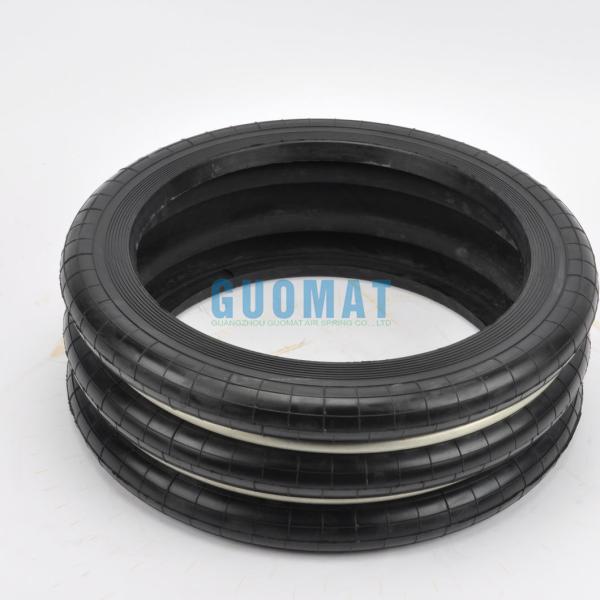

The Real Pictures of F-400-3


Punch Press Rubber Air Spring Yokohama S-400-3 Triple Type Air Rubber Bellow
Punch Press Rubber Air Spring Yokohama S-400-3 Triple Type Air Rubber Bellow
Punch Press Rubber Air Spring Yokohama S-400-3 Triple Type Air Rubber Bellow
