Yokohama Punch Press S-450-3 Triple Convoluted Rubber Air Spring for Reduce Shock
Yokohama Punch Press S-450-3 Triple Convoluted Rubber Air Spring for Reduce Shock
Yokohama Punch Press S-450-3 Triple Convoluted Rubber Air Spring for Reduce Shock
Yokohama Punch Press S-450-3 Triple Convoluted Rubber Air Spring for Reduce Shock
Yokohama Punch Press S-450-3 Triple Convoluted Rubber Air Spring for Reduce Shock
Yokohama Punch Press S-450-3 Triple Convoluted Rubber Air Spring for Reduce Shock
Yokohama Punch Press S-450-3 Triple Convoluted Rubber Air Spring for Reduce Shock
Yokohama Punch Press S-450-3 Triple Convoluted Rubber Air Spring for Reduce Shock
Yokohama Punch Press S-450-3 Triple Convoluted Rubber Air Spring for Reduce Shock
Yokohama Punch Press S-450-3 Triple Convoluted Rubber Air Spring for Reduce Shock
Specifications
Brand Name :
GUOMAT
Model Number :
F-450-3
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
F-450-3
Quality :
100 % Tested
Yokohama :
S-450-3R
Transport Package :
Strong Cartons
Trademark :
GUOMAT
After-sales Service :
12 Months
Type :
Gas-Filled
Sample :
Available | Customized Request
Description

Yokohama Punch Press S-450-3 Triple Convoluted Rubber Air Spring for Reduce Shock

Product Introduction

GUOMAT rubber pneumatic tire is an indispensable accessory for self-powered type. Its main function is to reduce the working pressure of the pneumatic valve and stabilize it at a value, so that the door can obtain a stable pneumatic valve output power for adjustment and operation.

Other OEM Number

GUOMAT Part No.: F-450-3

YOKOHAMA S-450-3R

YOKOHAMA S 450 3R

YOKOHAMA S4503R

YOKOHAMA S-450-3

YOKOHAMA S 450 3

YOKOHAMA S450-3

F-450-3 Detailed Datas

Model Size Height H(mm) Common Maximum Travel(mm) Compression Max. Outside Diameter (mm) Standard height, approximate value at 0.49MPA internal pressure Maximum Internal Pressure (MPA) Internal Pressure Failure(MPA)
Design Height Max. Height Min Height Effective Area(cm2) Volume(L) Load(KN) Dynamic Spring Constant(n/mm) Natural Vibration Frequency(Hz)
S-450-5R 276 456 156 ±113 510 1590 43.6 80.0 588 1.4 0.69 3.9-4.9
S-450-4R 218 363 123 ±90 510 1590 33.9 80.0 755 1.6 0.69 3.9-4.9
S-450-3R 160 270 90 ±68 510 1590 24.3 80.0 1040 1.8 0.69 3.9-4.9
S-450-2R 102 172 57 ±45 510 1590
14.7		 80.0 1687 2.3 0.69 3.9-4.9
S-450-1R 72 117 40 ±30 550 1590 11.9 80.0 2295 2.7 0.69 2.9-3.9

Other F Series Industrial Rubber Bellows

GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No. GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
F-600-1 S-600-1R S 600 1R F-240-4 S-240-4R S 240 4R
F-600-2 S-600-2R S 600 2R F-240-3 S-240-3R S 240 3R
F-600-3 S-600-3R S 600 3R F-240-2 S-240-2R S 240 2R
F-600-4 S-600-4R S 600 4R F-240-1 S-240-1R S 240 1R
F-600-5 S-600-5R S 600 5R F-220-4 S-220-4R S 220 4R
F-550-2 S-550-2R S 550 2R F-220-3 S-220-3R S 220 3R
F-550-3 S-550-3R S 550 3R F-220-2 S-220-2R S 220 2R
F-500-2 S-500-2R S 500 2R F-200-2 S-200-2R S 200 2R
F-500-3 S-500-3R S 500 3R F-200-3 S-200-3R S 200 3R
F-500-4 S-500-4R S 500 4R F-200-4 S-200-4R S 200 4R
F-500-5 S-500-5R S 500 5R F-160-1 S-160-1R S 160 1R
F-450-1 S-450-1R S 450 1R F-160-2 S-160-2R S 160 2R
F-450-2 S-450-2R S 450 2R F-160-3 S-160-3R S 160 3R
F-450-3 S-450-3R S 450 3R F-160-4 S-160-4R S 160 4R
F-450-4 S-450-4R S 450 4R F-120-4 S-120-4R S 120 4R
F-450-5 S-450-5R S 450 5R F-120-3 S-120-3R S 120 3R
F-400-2 S-400-2R S 400 2R F-120-2 S-120-2R S 120 2R
F-400-3 S-400-3R S 400 3R F-100-4 S-100-4R S 100 4R
F-400-4 S-400-4R S 400 4R F-90-3 S-90-3R S 90 3R
F-400-5 S-400-5R S 400 5R F-90-2 S-90-2R S 90 2R
F-350-1 S-350-1R S 350 1R F-90-1 S-90-1R S 90 1R
F-350-2 S-350-2R S 350 2R F-300-1 S-300-1R S 300 1R
F-350-3 S-350-3R S 350 3R F-300-2 S-300-2R S 300 2R
F-350-4 S-350-4R S 350 4R F-300-3 S-300-3R S 300 3R
F-300-4 S-300-4R

S 300 4R

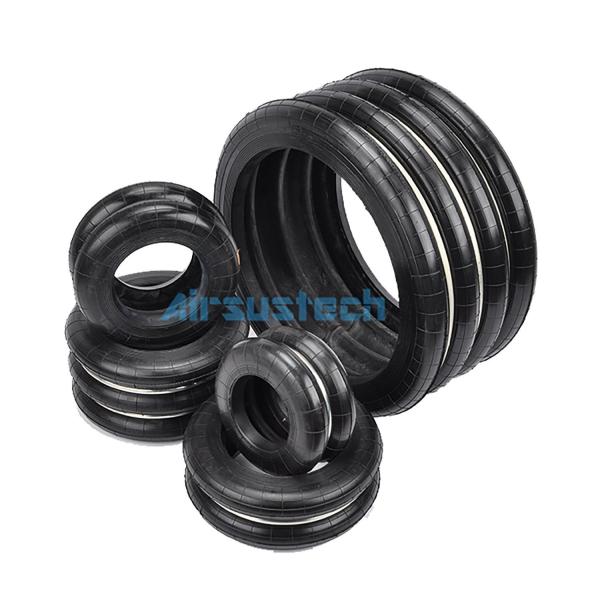

The Related Photos of F-450-3


Yokohama Punch Press S-450-3 Triple Convoluted Rubber Air Spring for Reduce Shock

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
