Specifications
Brand Name :
GUOMAT
Model Number :
F-200-2
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
F-200-2
Bellows Type :
Triple Convoluted
Quality :
100 % Tested
Fuction :
Reduce Shock
Yokohama :
S-200-2R
Transport Package :
Strong Cartons
Trademark :
GUOMAT
After-sales Service :
12 Months
Description

Yokohama S-200-2R Air Spring Suspension for Automatic CNC Punching Machine

OEM Cross reference

AIRSUSTECH Part No.: F-200-2

YOKOHAMA S-200-2R

YOKOHAMA S 200 2R

YOKOHAMA S-200-2

Specifications and Detailed Technical Parameters: F-200-2

Model Size

Height

(mm)

 Standard height, approximate value at 0.49MPA internal pressure Maxi inner Pressure Limited(Mpa) Burst Inner Pressure(Mpa) Max stroke (mm) Max. Dia.(mm)
Design Height Max. Height Min Height Effective Area(cm2) Volume(L) Load(KN) Dynamic Spring Constant(n/mm) Natural Vibration Frequency(Hz)
S-200-4 206 311 111 315 7.2 15.4 177 1.7 0.88 2.9-3.9 ±70 315
S-200-3 152 232 82 315 5.2 15.4 235 2.0 0.88 2.9-3.9 ±53 315
S-200-2 98 148 53 315 3.2 15.4 373 2.5 0.88 2.9-3.9 ±35 315

Features of F-200-2 Air Spring

1. Long service life, self-sealing type has excellent durability due to less rubber deformation during expansion and contraction.

2. The maintenance is very simple, there is no friction sliding part, so there is no need to add lubricating oil.

3. The installation height can be reduced. Compared with other springs, the installation height can be reduced and the stroke can be effectively increased.

4. The elastic and soft spring parameters can be obtained, the load is large and the elasticity is soft, and the anti-vibration performance is excellent.

Other types of Punch Air Spring

GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No. GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
F-600-1 S-600-1R S 600 1R F-240-4 S-240-4R S 240 4R
F-600-2 S-600-2R S 600 2R F-240-3 S-240-3R S 240 3R
F-600-3 S-600-3R S 600 3R F-240-2 S-240-2R S 240 2R
F-600-4 S-600-4R S 600 4R F-240-1 S-240-1R S 240 1R
F-600-5 S-600-5R S 600 5R F-220-4 S-220-4R S 220 4R
F-550-2 S-550-2R S 550 2R F-220-3 S-220-3R S 220 3R
F-550-3 S-550-3R S 550 3R F-220-2 S-220-2R S 220 2R
F-500-2 S-500-2R S 500 2R F-200-2 S-200-2R S 200 2R
F-500-3 S-500-3R S 500 3R F-200-3 S-200-3R S 200 3R
F-500-4 S-500-4R S 500 4R F-200-4 S-200-4R S 200 4R
F-500-5 S-500-5R S 500 5R F-160-1 S-160-1R S 160 1R
F-450-1 S-450-1R S 450 1R F-160-2 S-160-2R S 160 2R
F-450-2 S-450-2R S 450 2R F-160-3 S-160-3R S 160 3R
F-450-3 S-450-3R S 450 3R F-160-4 S-160-4R S 160 4R
F-450-4 S-450-4R S 450 4R F-120-4 S-120-4R S 120 4R
F-450-5 S-450-5R S 450 5R F-120-3 S-120-3R S 120 3R
F-400-2 S-400-2R S 400 2R F-120-2 S-120-2R S 120 2R
F-400-3 S-400-3R S 400 3R F-100-4 S-100-4R S 100 4R
F-400-4 S-400-4R S 400 4R F-90-3 S-90-3R S 90 3R
F-400-5 S-400-5R S 400 5R F-90-2 S-90-2R S 90 2R
F-350-1 S-350-1R S 350 1R F-90-1 S-90-1R S 90 1R
F-350-2 S-350-2R S 350 2R F-300-1 S-300-1R S 300 1R
F-350-3 S-350-3R S 350 3R F-300-2 S-300-2R S 300 2R
F-350-4 S-350-4R S 350 4R F-300-3 S-300-3R S 300 3R
F-300-4 S-300-4R

S 300 4R

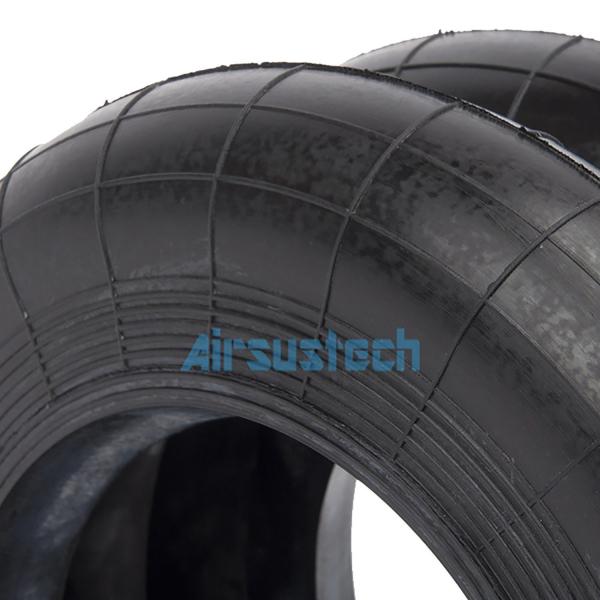

F-200-2 Detailed Pictures
