Specifications
Brand Name :
GUOMAT
Model Number :
360306H-3
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
360306H-3
Material :
Rubber And Steel
Quality :
100 % Tested
Fuction :
Reduce Shock
Trademark :
GUOMAT
Warranty :
12 Months
Design Height :
306 MM
Tooth Type :
16-M10
Description

GUOMAT NO. 360306H-3 Industrial Air Spring For Heavy Duty Air Suspension

Product Introduction

In the field of precision sieving, the standard test sieve is the core equipment to ensure the accuracy of material particle size distribution, and its operation stability and accuracy are crucial. For this reason, our carefully designed airbag shock absorber 360306H-3 is cleverly attached to the standard test sieve, as if putting a soft "shock-absorbing armor" on this precision instrument.

Product Specification

Top Cover Plate Screw (Nut) Tooth: 16×M10
Bottom Cover Plate Screw (Nut) Tooth :16×M10
Gas Hole / Air inlet : G1/2
Top Cover Plate Diameter: 347mm
Bottom Cover Plate Diameter: 347mm
Rubber Bellows Natural Diameter: 380mm
Rubber Bellows Natural Diameter: 306 mm
Without Bumper Block
Without Girdle Hoop

Product Technical Data Sheet

Bearing load Power(kg) Inflation
pressure		 0.2MPA 0.3MPA 0.4MPA 0.5MPA 0.6MPA 0.7MPA 0.8MPA 0.7MPA
Volume(dm3)
Installation
height
115(mm) 1915 2720 3632 4633 5604 6560 7545 9.06
173(mm) 1654 2527 3374 4235 5146 6023 6909 13.72
231(mm) 1425 2140 2961 3697 4496 5313 6071 18.67
289(mm) 1295 1981 2640 3374 4057 4746 5507 22.28
306(mm) 1211 1840 2514 3136 3825 4491 5163 23.62
347(mm) 1058 1640 2225 2812 3430 4074 4702 26.53
360(mm) 1014 1470 2139 2716 3286 3877 4500 27.8
390(mm) 861 1336 1840 2342 2871 3405 3956 28.45
Stiffness and frequency at design height Vertical stiffness(kg/cm) 147 201 260 280 300 327 371
Vertical stiffness(Hz) 1.74 1.65 1.61 1.5 1.4 1.35 1.34
Vertical stiffness(cpm) 104 99 97 90 84 81 80



Other types of Flange Air Suspensions

Model Size Nominal diameter The largest diameter(0.7MPA) Bearing capacity at design height Natural frequency(0.7MPA) Stroke Weight
0.2MPA 0.5MPA 0.7MPA Minimum compression height Height of safe elongation
086060H-1 50 110 44 123 175 5.18 42 90 1
120060H-1 80 130 122 313 444 3.79 42 65 1.6
150076H-1 104 160 164 435 621 3.5 46 85 1.4
188102H-1A 120 210 208 587 862 3.05 52 115 2.25
215120H-1 125 233 294 768 1109 2.83 42 140 2.9
235118H-1 180 260 474 1185 1684 2.52 60 136 2.6
235150H-1 180 260 441 1205 1740 2.29 65 172 3.1
260135H-1 170 290 425 1150 1670 2.4 55 155 2.95
280126H-1 195 300 643 1662 2370 2.46 50 144 3.75
320124H-1 230 340 798 2071 2965 2.28 52 142 3.9
130142H-2 80 150 80 219 314 3.12 72 162 4.4
156130H-2 118 170 70 146 3.15
160166H-2 100 175 149 413 593 2.3 82 190 2.35
168132H-2 120 185 229 589 832 2.53 72 151 2.2
200142H-2 150 220 326 843 1195 2.02 78 162 3.05
220200H-2 148 250 354 920 1310 1.89 90 229 3.22
230214H-2 150 255 388 1023 1457 1.93 88 246 4.05
235152H-2 180 250 461 1180 1667 1.91 80 174 3.25
235210H-2 180 250 80 245
250180H-2 185 270 520 1345 1904 1.74 84 206 3.95
252163H-2 192 275 422 1142 1644 1.73 82 238 4.2
260230H-2 170 290 374 1036 1506 1.78 90 263 4.85
280214H-2 200 305 668 1741 2480 1.68 88 246 5.57
290265H-2 205 320 440 1250 1800 1.19 90 303 6.55
300170H-2 240 320 849 2156 3045 1.74 85 195 5.35
310214H-2 230 330 813 2078 2992 1.89 88 245 7
330214H-2 250 355 1064 2749 3897 1.65 88 246 7.75
330254H-2 230 355 861 2222 3166 1.75 88 290 7.24
350255H-2 250 380 1095 2851 4098 1.45 90 295 8.2
360214H-2 280 380 1250 3220 4570 1.36 88 246 7.9
380221H-2 300 405 1432 3765 5352 1.34 90 255 8.5
400217H-2 320 430 1753 4450 6300 1.66 90 249 11.1
400255H-2 300 430 1465 3752 5256 1.55 90 295 10.4
430255H-2 330 460 1760 4526 6427 1.43 90 295 10.2
480217H-2 400 510 2723 6850 9700 1.27 88 249 13.8
520217H-2 440 550 3070 7850 11094 1.41 90 249 14.5
580214H-2 500 600 3978 10137 14293 1.65 88 246 13.3
630262H-2 530 660 4371 10585 15801 1.48 90 300 19.9
680262H-2 580 710 5278 13596 19313 1.35 90 302 18.6
200206H-3 150 220 229 634 888 1.68 116 236 3.75
250260H-3 185 270 507 1344 1924 1.7 116 299 5.5
255230H-3 200 280 566 1460 2070 1.3 116 264 5.55
255322H-3 200 290 116 400 5.85
310306H-3 230 330 861 2239 3170 1.3 120 354 7.3
330306H-3 250 355 1035 2730 3892 1.4 120 354 8.69
380316H-3 300 405 1401 3672 5235 1.32 122 370 10.95
400312H-3 320 430 1724 4436 6308 1.19 122 360 11.8
430370H-3 330 460 1716 4435 6333 1.20 122 430 13.8
480312H-3 400 510 2650 6883 9768 1.17 122 360 16.5
520312H-3 400 550 3046 7932 11262 1.32 122 360 20.1
580306H-3 500 600 3950 10181 14409 1.22 118 354 19.16
630376H-3 530 660 4243 11045 45612 0.94 122 436 24.1
680376H-3 580 710 5259 13620 19339 1.27 122 436 27.6

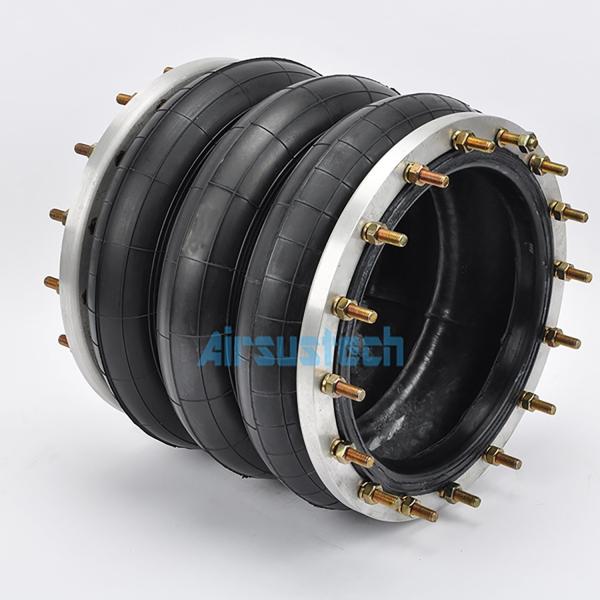

The Related Picture of 360306H-3


GUOMAT NO. 360306H-3 Industrial Air Spring For Heavy Duty Air SuspensionGUOMAT NO. 360306H-3 Industrial Air Spring For Heavy Duty Air Suspension
