Specifications
Brand Name :
GUOMAT
Model Number :
3B10X3
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Pressure Ability :
0.2-0.8 M PA
Bellows Diameter :
254 mm
Bellows Type :
Triple Convoluted
Hoop :
Yes
Sample :
Available
OEM NO. :
FT 210-32DS
Fitment Type :
Direct Replacement
Description

Dunlop Industrial Air Rubber Spring 10''X3 Phoenix SP1539 Triple Convoluted Bellow

Product Description

Carefully designed curled air actuators to meet diverse industrial needs. Our curled air actuators are carefully designed to provide excellent performance and outstanding versatility. At its core is a sturdy crimping assembly that greatly improves strength and durability. The bellows made of natural rubber is known for its excellent dynamic capabilities and superior general performance, enabling the actuator to perform well under various operating conditions. At the same time, both the top and bottom plates are crimped and zinc-plated, which provides excellent corrosion resistance and ensures that the equipment can maintain high-quality performance for a long time. With unique dynamic performance, excellent adaptability and excellent durability, our curled air actuators are a reliable choice to meet various industrial needs.

Product Details

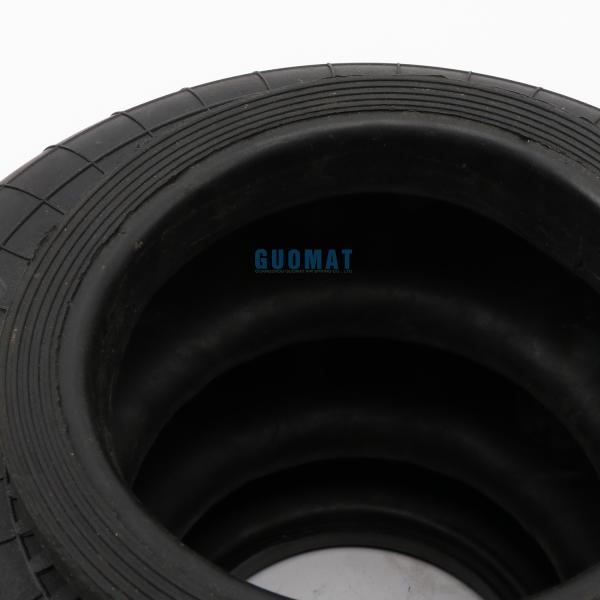

Rubber Bellows

In 0.7 M pa, Rubber Bellows Diameter : 256 mm

Rubber Bellows Natural Height :230 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With 2 Girdle Hoop

Technical Data

Pneumatic applications - static characteristics
Force F [kN]

Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Height H [mm] 350 5,62 7,66 9,75 11,8 14 16,3 11
300 7,1 9,56 12 14,5 17,1 19,8 9,5
250 8,62 11,6 14,6 17,6 20,7 24 8,2
200 10,3 13,8 17,3 20,8 24,4 28,3 6,6
150 12,1 16,1 20,1 24,2 28,3 32,6 4,7

Cross Part Number

Manufacturer: Complete Numbers
Airkraft 115056
Contitech FT 210-32DS
FT 210 32DS
FT21032DS
Dunlop SP1539(10X3)
SP1539
10X3
Weforma WBD-G450
WBD G450
Stroke 230mm
Condition New


We Also Have Other Type Air Springs

Flange connection type of air spring model comparison table
GUOMAT NO. Contitech NO. GUOMAT NO. Contitech NO.
FS22-3DICR FS 22-3 DI CR FS960-12RS FS 960-12 RS
FS44-5DICR FS 44-5 DI CR FS1330-11RS FS 1330-11 RS
FS76-7DICR FS 76-7 DI CR FS1710-12RS FS 1710-12 RS
FS76-7DSCR FS 76-7 DS CR FS2870-16RS FS 2870-16 RS
FS138-8DS FS 138-8 DS FS5450-16RS FS 5450-16 RS
FS210-10DS FS 210-10 DS FD960-22RS FD 960-22 RS
FS412-10DS FS 412-10 DS FD1120-30RI FD 1120-30 RI
FS614-13DS FS 614-13 DS FD1330-25RS FD 1330-25 RS
FS816-15DS FS 816-15 DS FD1710-25RS FD 1710-25 RS
FD22-4DICR FD 22-4 DI CR FD1730-40RI FD 1730-40 RI
FD44-10DICR FD 44-10 DI CR FD2380-24RS FD 2380-24 RS
FD76-14DICR FD 76-14 DI CR FD2470-40RI FD 2470-40 RI
FD76-14DSCR FD 76-14 DS CR FD2870-30RS FD 2870-30 RS
FD138-18DS FD 138-18 DS FD5450-28RS FD 5450-28 RS
FD209-21DS FD 209-21 DS FT960-34RS FT 960-34 RS
FD210-22DS FD 210-22 DS FT1330-35RS FT 1330-35 RS
FD412-18DS FD 412-18 DS FT1710-38RS FT 1710-38 RS
FD614-26DS FD 614-26 DS FT2870-45RS FT 2870-45 RS
FD816-30DS FD 816-30 DS FT5450-44RS FT 5450-44 RS
FT22-6DICR FT 22-6 DI CR
FT44-15DICR FT 44-15 DI CR
FT76-20DICR FT 76-20 DI CR
FT76-20DSCR FT 76-20 DS CR
FT138-26DS FT 138-26 DS
FT210-32DS FT 210-32 DS
FT412-32DS FT 412-32 DS
FT614-36DS FT 614-36 DS
FT816-40DS FT 816-40 DS
