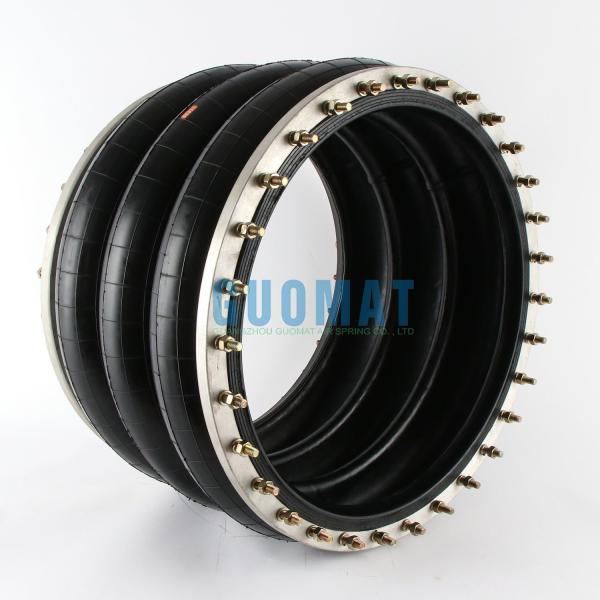

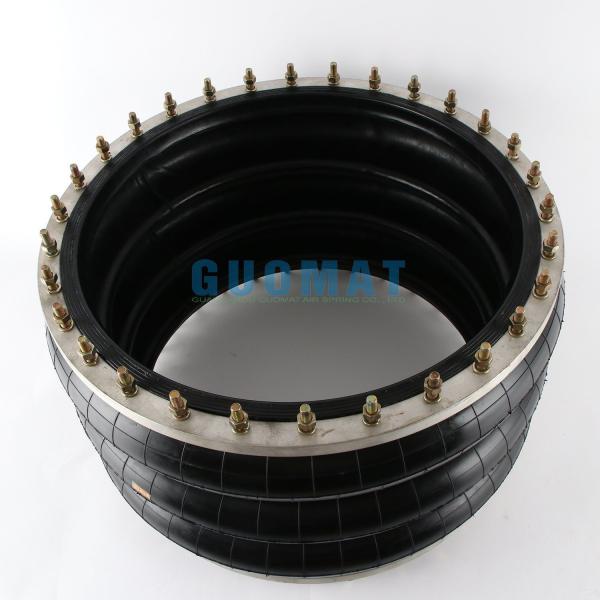

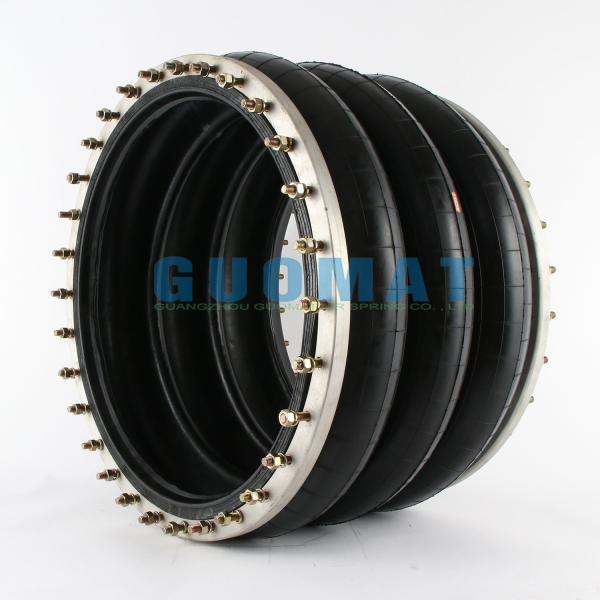

GUOMAT 3H630376 Industrial Tripled Convoluted Type Air Spring with Flange Ring
GUOMAT 3H630376 Industrial Tripled Convoluted Type Air Spring with Flange Ring
GUOMAT 3H630376 Industrial Tripled Convoluted Type Air Spring with Flange Ring
GUOMAT 3H630376 Industrial Tripled Convoluted Type Air Spring with Flange Ring
GUOMAT 3H630376 Industrial Tripled Convoluted Type Air Spring with Flange Ring
GUOMAT 3H630376 Industrial Tripled Convoluted Type Air Spring with Flange Ring
GUOMAT 3H630376 Industrial Tripled Convoluted Type Air Spring with Flange Ring
GUOMAT 3H630376 Industrial Tripled Convoluted Type Air Spring with Flange Ring
GUOMAT 3H630376 Industrial Tripled Convoluted Type Air Spring with Flange Ring
GUOMAT 3H630376 Industrial Tripled Convoluted Type Air Spring with Flange Ring
GUOMAT 3H630376 Industrial Tripled Convoluted Type Air Spring with Flange Ring
GUOMAT 3H630376 Industrial Tripled Convoluted Type Air Spring with Flange Ring
Specifications
Brand Name :
GUOMAT
Model Number :
3H630376
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
3H630376
After-Sales Service :
1 Year
Quality :
100% Tested
Trademark :
GUOMAT
Function :
Reduce Shock
Shape :
Convoluted Type
Compatibility :
Universal
Max. Diameter :
720 MM
Description

GUOMAT 3H630376 Industrial Tripled Convoluted Type Air Spring with Flange Ring

Air Spring Introduction


For nearly a century, air springs have been integral to heavy-duty vehicle suspension systems, leveraging the compressed air already used for braking systems. They offer significant advantages over traditional mechanical leaf or coil springs. One key benefit is enhanced comfort—adjusting air pressure within the spring alters the spring rate, improving ride quality. Additionally, this variable air pressure control allows for deck or trailer height adjustment, enabling seamless alignment with loading docks even without dock plates.


3H630376 Industrial Air Spring Technical Data

Rubber Bellow Diameter: 720mm (0.7 Mpa)

Bottom and Top Diameter: 642mm

The Screw: M10

Number of Screw: 32 pieces
Pass Through: 580 mm

Minimal Compression: 122 mm

Elongation: 436 mm

The Working Stroke: 314 mm

We Can Offer Other Triple Convoluted Air Bellows
3B12-304 3B12-305 FT 330-29 CI SP2910
3B14-351 3B14-353 FT 430-32 CI SP2895
3B14-354 3B15-375 FT 530-32 CI SP2923
3B15-376 3B15-377 FT 530-35 CI SP2861
3B15-378 FT 960-34 CI SP2863
FT 1330-35 CI SP1539
SP1542
SP1558
SP2141

Versatile Applications of Air Springs


- Off-highway vehicles: Enhance suspension, ride comfort, and stability in construction, agricultural, and mining equipment.
- Press equipment: Serve as actuators for part extraction and operations.
- Testing systems: Act as vibration isolators in motion simulators, reducing shock and noise.
- Precision machinery: Isolate vibrations and ensure leveling in equipment like printing presses.
- Textile machinery: Deliver smooth operation, improve product quality, and reduce equipment wear.
- Paper mill machinery: Provide suspension, leveling, and vibration isolation to ensure efficiency.
- Cheese and dairy equipment: Offer stability and performance tailored to industry-specific needs.


Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
