Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation
Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation
Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation
Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation
Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation
Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation
Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation
Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation
Specifications
Brand Name :
GUOMAT
Model Number :
2B7400
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6PCS
Price :
$59.9-69.9/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Material :
Rubber+Steel
Warranty :
12 months
Quality :
100% Tested
Convolutions :
Double Convoluted
Interface Type :
Threaded Interface
Temperature Range :
-40℃~+70℃
Contitech :
FD 330-22 313
Firestone :
W01-358-7400
Description

Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation

Product Information

Brand: GUOMAT

GUOMAT number: 2B7400

Article status: Normal

Warranty: 12 Months

Color: Black

Other Name: Air Spring,Air Bags

2B7400 Cross Reference Numbers

Firestone Number: W01-358-7400 / W01 358 7400 / W013587400

Firestone Number: WO1-358-7400 / WO1 358 7400 / WO13587400

Firestone Style Number: 22

FleetPrice Number: AS7400

Goodyear Number: 2B12-309 / 2B 12-309

Goodyear Flex Number: 578923309 / 578 92 3 309 / 578-92-3-309

Taurus Number: 6316

Triangle Number: AS-4313

Vibracoustic Number: V SP 2 B 22 R-7400 / VSP2B22R-7400

TRP Number: AS74000

Automann Number: SP2B22R-7400 / SP 2 B 22 R-7400

Road Choice Number: AS7400

OE Manufacturer/Part NO.

Manufacturer Original Part No.
Fab Tek 04-0080
Dayton 354-7400
Chevrolet 693230
Taurus AS214-7400
SAF Holland 90557016
Ridewell 1003587400C
R&S Truck 1027519
Navistar/Fleetrite 554788C1
Loadguard SC2020
Hendrickson S-1013
GMC 693230
Watson & Chalin AS-0003
Granning 2726
Tuthill 2726
SAF Holland 90557018
Volvo 3130488
Scania 670199
Brake & Wheel M3506
Freightliner 16-10796-000
HDA PMABG-740

Contitech FD 330-22 313 Air Suspension Technical Data

Top Cover Plate Diameter:Ø9.00
Bottom Cover Plate Diameter:Ø9.00
Air Inlet :1/4-18NTPF
Screw Center Distance Of Top Cover Plate:6.20
Screw Center Distance Of Bottom Cover Plate:6.20
Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Rubber Bellow Rubber Bellow MAX Diameter:Ø12.80
Max.Height: 12.50
Min.Height: 4.10

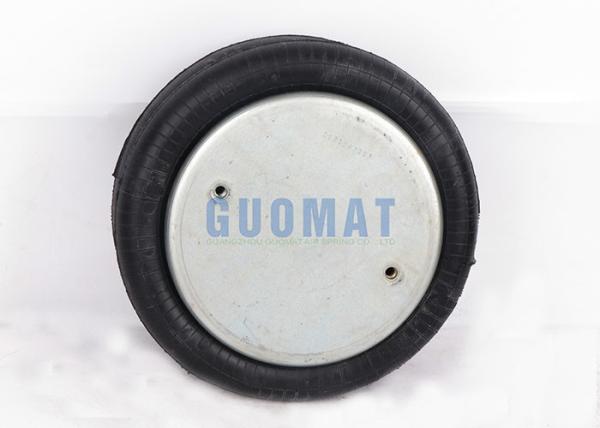

Product Image

Rubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration IsolationRubber Pneumatic Air Spring FD 330-22 313 Contitech Air Balloon Machinery Vibration Isolation
