Mild Steel Hot Dip Cable Tray Thickness 2.5mm / 3mm Chemicals Resistance
Mild Steel Hot Dip Cable Tray Thickness 2.5mm / 3mm Chemicals Resistance
Mild Steel Hot Dip Cable Tray Thickness 2.5mm / 3mm Chemicals Resistance
Mild Steel Hot Dip Cable Tray Thickness 2.5mm / 3mm Chemicals Resistance
Specifications
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
45 days usually
Packaging Details :
Carton then Pallet, or pallet directly
Item Name :
Galvanized Cable Tray
Type :
Ladder Tray
Material :
Mild Steel
Color :
Grey, Blue, Yellow, Red, other customized colors
Finished :
Hot Dip Galvanize
Accessories :
Horizontal/ Verticle Tee, Bend, Reducer, Elbow, Coupler Plate, Hardware, Mounting Support etc.
Brand Name :
Wisdom
Certification :
ISO
Description

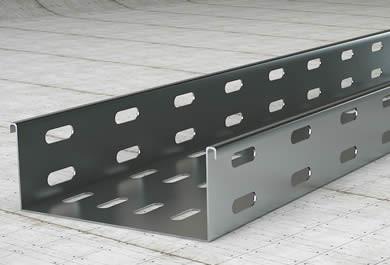

Mild Steel Hot Dip Galvanized Building Cable Tray , Thickness 2.5 MM / 3 MM

Description:

Cable tray bend used for connecting cable trays when transform branch. It has horizontal, vertical, straight, reducing bend etc and including elbow bend, tee bend, cross bend.

  • Lightweight, higher strength, easily worked, cut and drilled on site
  • Corrosion and weather resistant
  • Resistant to most chemicals
  • Do not conduct heat or electricity and also protects the cables
  • Gives added fire protection to the cables in case of external fire
  • Excellent mechanical properties

Specification:

Size(mm) Thickness(mm) Thickness(mm)
50×25 1.2 1.5
75×50 1.2 1.5
100×50 1.2 1.5
100×75 1.2 1.5
100×100 1.2 1.5
150×50 1.2 1.5
150×75 1.2 1.5
150×100 1.2 1.5
200×100 1.5 2
250×100 1.5 2
300×100 1.5 2
300×150 1.5 2
400×100 1.5 2
400×150 1.5 2
500×100 1.5 2
500×150 1.5 2
600*100 2 2.5
600×150 2 2.5
600×200 2 2.5
700×100 2 2.5
700×150 2 2.5
800×100 2 2.5
800×200 2.5 3
1000×200 2.5 3
1000×250 2.5 3

The material of cable tray

  • Mild Steel
  • Pre Galvanized Sheet
  • Stainless Steel
  • Aluminium
  • FRP

Advantages:

1. Close to the electrical wiring bigger space to meet the high-density cable

2. Approved by EU Rohs,Compliant with US UL 94V-0,good inflaming

3. Smooth edges in duct slots and at top of duct fingers

4. Will not slide easily when installed on duct base

5. Cover sits flush with sidewall

6. Smooth adge after punching

7. with or without the cover being installed

8. Suitable to different environments using
