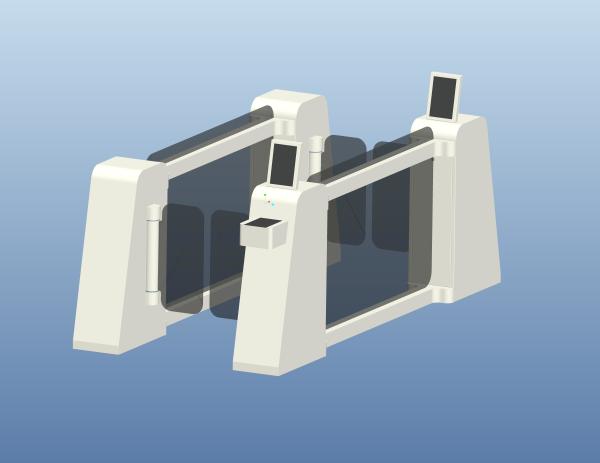

SUS316 Swing Barrier Gate Turnstile For Airport or Sunway Use

Introduction:
1) Optical turnstile is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.
2) The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment.
3) It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
4) In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
5) Optical Turnstiles are suited for elegant and luxury entrance solutions.
6) The whole system runs smoothly. Long-life performance, high operation dependability and fast response.
7) Alarm function, in case of illegal intrusion and reverse intrusion.
8) Infrared sensor to prevent pedestrians from getting clamped.
9) Anti-breakthrough function: The gate is locked automatically until opening signal received.
10) Anti-trailing function: the turnstile will lock if there is forced entry without swiping the RFID card.
11) LED indicator.
12) When power is off, optical turnstile will open automatically, which complies with fire safety requirements.

Spotlights:

1. Innovative design and exquist maching to meet the high end access control solution

2. Fast pass speed Turnstile to ensure an orderly access of 35-45 people per minute

3. Easy operation and free maintenance

Main Functions:

1. Wide integration with all kinds of access control and identification systems,

2. Unidirectional or bidirectional access control can be achieved via external button or remote control.
3. Auto –reset, swing arm will auto close within certain time(multi grade time adjusting) after open,
4. Mechanical anti-jam, the swing arm will not close if it detects people or objects inside the aisle.
5. All-round humanized self-protection.
When people or objects blocks it’s movement ,system will continuously detect 1-5 times( each time of 5s )and stay in normal close state, part opponents are under dormant state.
When system cannot detect reset signal(arm hits the housing),system will auto detect1-5times(each time of 5s),by then, arm return auto back to normal lock state(note :even if the reset optocoupler is
damaged, system still works , motor or circuit won’t get burnt. )
6. Open and close speed can be adjusted from 0.8-2s with 16 grades.
7. Normal open and normal close can be controlled by external button. (for group pass)
8. High brightness indicator, clearly show even in daytime or under sunshine.
9. Humanized passing indicator :flashing green arrow for authorized passing, dark under normal state.
10. Arm drop when power off to evacuate crowd in case of emergency.
11. Can be set synchronously for turnstiles with double movements

Optional function of Fast past Access control Turnstile gate:
1. Sound and Light alarm (including illegal infiltration and anti-jam alarm)
2. Infrared anti-jam
3. Logical judge ,auto reset
4. Passenger counting(add for forward direction, substract for reverse direction)
5. Arm length is adjustable

Our Services & Strength
Material: 316 stainless steel or as per your request
Surface treatment: Raw finish or as per your request
1.Sample is always welcome.
2.Small order also acceptable
3.Design for clients' ideas.

Applications:
Banks and insurance companies ,airports
Government buildings and instituations
Office buildings,head offices,administrative sites
Schools ,universities and colleges

FAQ:

1) Why choose KOMAI as your supplier?

We are a leading manufacturer of turnstile and speed gate in China.
We focus on pedestrian turnstile gates.
We keep stock for regular products and we can support small orders. Usually, our lead time is just 3 days.
Design products according to customers’ requirements.
Credibility: We are SGS certificated Supplier. Our customers are located over 50 countries
Gratitude: We cherish the business chance you give us and return you with quality products and good service.
Professional: We have been in this business for more than 8 years. We have a strong professional team with various experiences.
We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
Price:Competitive price and good quality products
Quality: we do 100% inspection before the shipment.
Promise: we are always ready to take the responsibility if any loss caused to our customer due to our mistakes.

2) What is the Lead time?
1-3days for sample in stock;7-15days for special sample order. 7-30days for bulk order.

3) What is the Payment term?
30% deposit and the outstanding payment should be cleared before shipment.(Notify us if you have special requirements)

4) How is your Packaging?
International standard seaworthy plywood case

5) Do you provide OEM service?
Yes.we accept both OEM and ODM.
