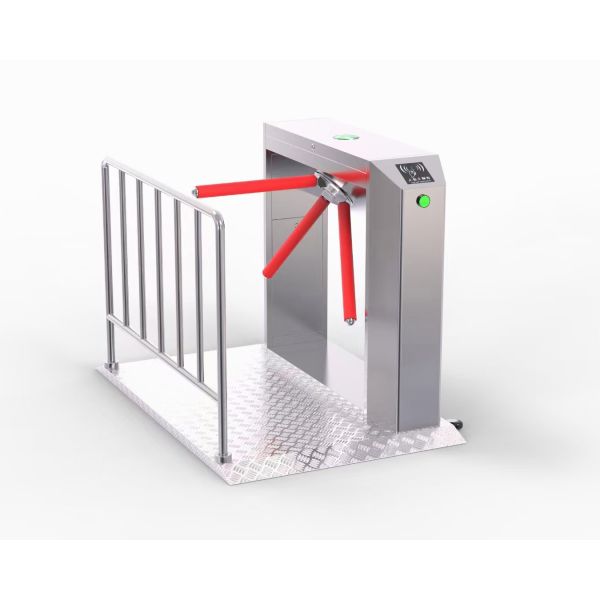

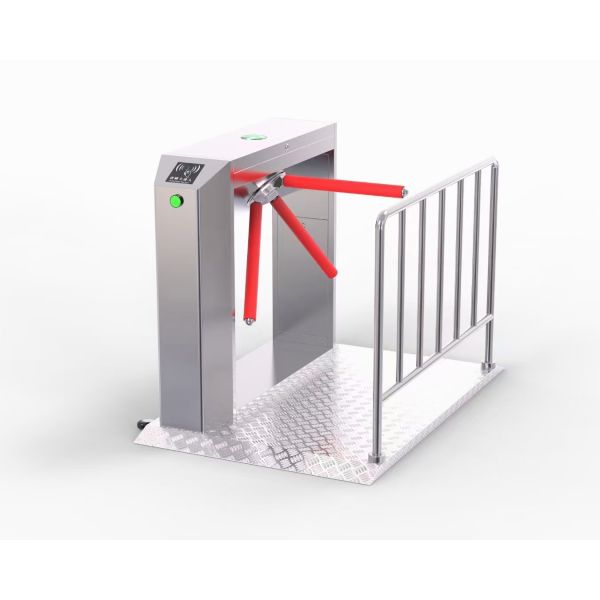

Fingerprint RS485 Communication 304 Stainless Steel Tripod Turnstile
Fingerprint RS485 Communication 304 Stainless Steel Tripod Turnstile
Fingerprint RS485 Communication 304 Stainless Steel Tripod Turnstile
Fingerprint RS485 Communication 304 Stainless Steel Tripod Turnstile
Specifications
Brand Name :
KOMAI
Model Number :
KM-TR15P
Certification :
CE,ROHS,FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
Wooden Box
Material :
SUS304 Stainless Steel
Dimension :
1200*280*980mm
Lane Width :
550-650mm
Power Supply :
AC220V/110V, 50/60Hz
Input :
12v Dry contact Or Relay
Communication :
RS485, TCP/IP, Relay
Description

Fingerprint RS485 Communication 304 Stainless Steel Tripod Turnstile

Introduction:

Tripod turnstile series are intelligent passage management equipment researched, developed and produced by our company.The equipment is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.

The outline of the product is formed after bending the stainless steel plate. The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers.

Parameter:

Model
KM-TRI15P
Size
1200*280*980mm
Material
1.2/1.5/2.0mm SUS304
Pass Width
550-650mm
Passage direction
Bi-directional
Pass rate
30-35 persons/minute
Operating time
0.2 seconds
Power input
AC100-240V,50/60HZ
Working voltage
24V
Working humidity
30%~95%
Working temperature
-40℃~+70℃
Working environment
Indoor/outdoor
Communication interface
RS485, 12v Dry contact, Relay
Mechanism
Mould machine core+mould bracket+Domestic solenoid

Features:

Tripod turnstiles are compact and cost-effective entrance solutions.
The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
Tripod turnstile is ideal for both indoor and outdoor settings.
It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
In case of emergency, the turnstile horizontal arm will drop down to allow free passage when power off.
It is suitable for areas with high traffic.

Long-life performance, high operation dependability and fast response.
The whole system runs smoothly, low noise, no mechanical impact.
Self-test function, when power on, system restoration automatic.
Single directional or Bi-directional is selectable.
LED indicator.
Automatic reset function: when tripod turnstile receives an open single, but passenger do not pass through the hallway within a specific time (default 5s), turnstile arm will lock automatically.
When power off, tripod turnstile arms will drop down automatically, which is complying with fire safety requirements.

FAQ:

1. Can we use our own access control system?

Yes, it is workable, it can be easily integrated with other access control system

2. what is your warranty time for your products:

It is one year from its delivery, but for our high speed gate brushless turnstile, it is 3-year.
