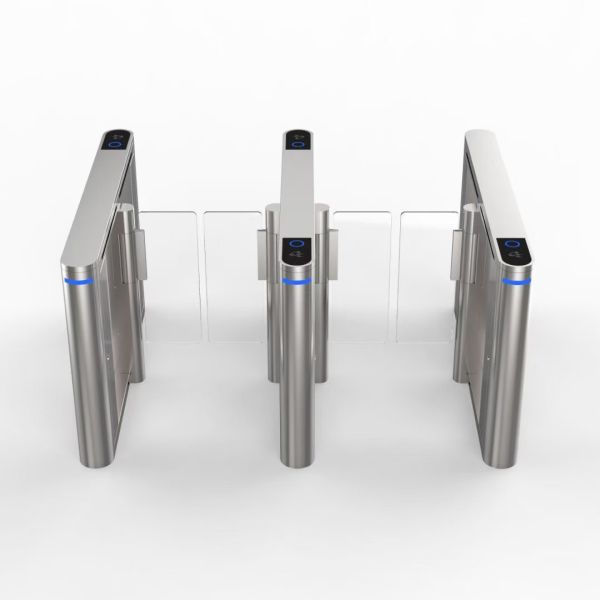

SS304 Servo Motor Control Pedestrian Fastlane Waist High Turnstile

Introduction:

Swing gate technology allows for an extremely narrow and open pedestal design. The glass barriers swing down the length of the pedestal, closing behind an authorized person, thereby deterring any authorized entry or tailgating. The swing gate technology puts a premium on aesthetics and ease of use.

1) Medium to high security
2) Fast throughput (up to 40 people per minute)
3) State-of-the-art tailgate detection
4) Highly customize with a wide range of design options
5) Barrier heights available up to 1800mm to prevent climb-over attempts

FEATURES:

1.The electric control adopts Servo motor to drive stable and reliable, and has low failure rate. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;

2.In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.

3.The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.

4.Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.

5.The bicycle delay function: prevent the gate from hitting the bicycle;

6.Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people.

7.The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass.

8.Various control functions: external button, remote control, bar code, IC or ID, etc.

9.Remote control function: the RS485 can be connected to RS485 by computer and the RS485 remote control brake machine.

10.Automatic reset function: after the credit card has not passed in the specified time, the lock will return the lock to cancel the pass, time 1-60 seconds.

Functions:

1.working method can be set by the buttons on the main panel
2.Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a
default delay, the force 2Kg.
3.Anti-illegal in, anti-intrusion, auto close for reverse direction.
4.Anti-collision, gate closes when no valid signal is given.
5.Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.
6.Gates can be synchronous
7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8.Reset function by photocells, 4 or 6 pairs.
9.Anti-pinch function by photocells, 4 pairs
10.Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
11.One way or two way control
12.Unit can be controlled and administered by remote control
13.Led lamp indicator

FAQ:

1. Can you install RFID card reader on the turnstile?

Yes,except the RFID card reader system,we also can install fingerprint reader system,token system,esd system,etc.

2. How about the guarantee and after sale service?

We have 12 month quality guarantee, We own well-trained and passional sales & after- sale services who can speak fluent English language

3. How long is the leading time?

For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer

4. How about the payment terms?

TT,western union,L/C,our company already joined the trade assurance,it will highly protect your order security.

5. How do you send the product to me,how long?

For sample,normaly send by air or express,about 3-5 days

For quantity purchase,normally by sea, it normally takes 7-60 days depend on different countries.

6. Can you do OEM service?

We offer below OEM services:

1)We can make custom design turnstile,or you tell me your requirements ,we can make a design for you.

2)Can print your logo on turnstiles, can customize the retail box packing and other things.

7. How can we contact with you immediately?

We got several kinds of communicate ways, just hope to keep good touch with you.
