Specifications
Brand Name :
Huawei
Model Number :
CE-L48GT-EA
Place of Origin :
Beijing, China
MOQ :
1
Price :
US$3,000-US$3,051/per set
Payment Terms :
D/A, T/T, Western Union
Supply Ability :
200 pieces per day
Delivery Time :
within 2 days
Packaging Details :
We will package it by using carton.The size is 53.08X43.3X4.57 cm.
Products Status :
Stock
Function :
LACP, POE, QoS, SNMP, Stackable, VLAN Support
Certification :
ce
DDR3 :
Standard 2 GB
Weight :
5.3 kg (11.68 lb)
Maximum Power Consumption :
127W
Maximum Heat Dissipation :
433 BTU/hour
Relative humidity :
5% RH to 95% RH
Ports :
36
Communication Method :
Full-Duplex & Half-Duplex
CPU :
Quad-core, 1.2 GHz clock speed
Dimensions :
433.0 mm x 530.8 mm x 45.7 mm
Typical power consumption :
104 W
Typical heat dissipation :
355 BTU/hour
Operating temperature :
0°C to 40°C (32°F to 104°F)
Description
CE-L48GT-EA 48-Port Interface Card CE12800
CE-L48GT-EA 48-Port 10/100/1000BASE-T Interface Card (EA, RJ45)
CE-L48GT-EA card:
The CE-L48GT-EA card provides 48 GE electrical ports for data access and processing.
The CE-L48GT-EA can be installed in:
* Slots 1 to 4 of the CE12804 chassis, as shown in Slot layout in the CE12804 chassis
* Slots 1 to 8 of the CE12808 chassis, as shown in Slot layout in the CE12808 chassis
* Slots 1 to 12 of the CE12812 chassis, as shown in Slot layout in the CE12812 chassis
* Slots 1 to 16 of the CE12816 chassis, as shown in Slot layout in the CE12816 chassis
* Slots 1 to 4 of the CE12804S chassis, as shown in Slot layout in the CE12804S chassis
* Slots 1 to 8 of the CE12808S chassis, as shown in Slot layout in the CE12808S chassis

CPU Quad-core, 1.2 GHz clock speed
DDR3 Standard 2 GB
Flash Standard 64 MB
Physical specifications * Dimensions (W x D x H): 433.0 mm x 530.8 mm x 45.7 mm (17.05 in. x 20.90 in. x 1.80 in.)
* Weight: 5.3 kg (11.68 lb)
* Typical power consumption: 104 W
* Maximum power consumption: 127 W
* Typical heat dissipation: 355 BTU/hour
* Maximum heat dissipation: 433 BTU/hour
Environment parameters * Operating temperature: 0°C to 40°C (32°F to 104°F)
* Storage temperature: -40°C to +70°C (-40°F to +158°F)
* Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification * Safety standards compliance
* EMC standards compliance
* Environmental standards compliance
Details Images

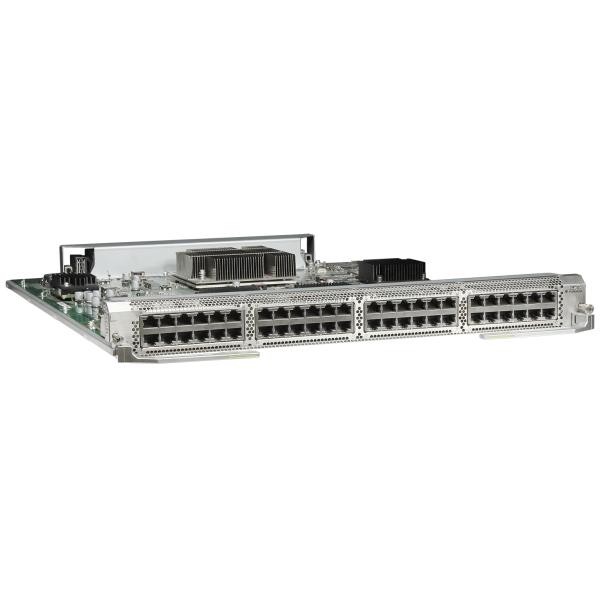

CE-L48GT-EA 48-Port Interface Card CE12800

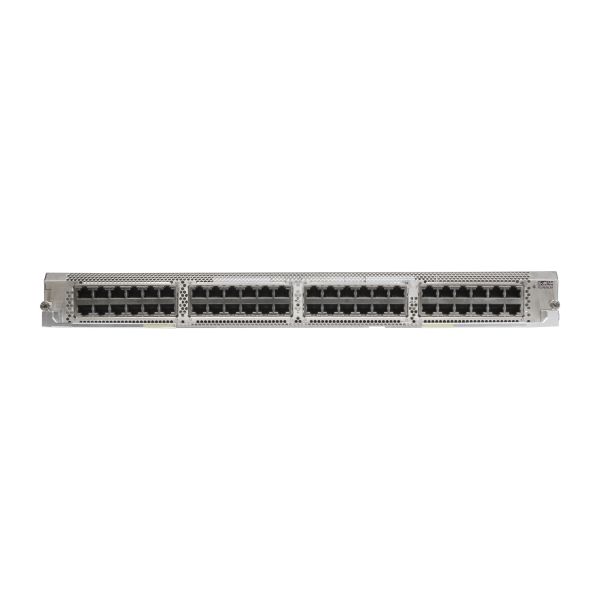

CE-L48GT-EA 48-Port Interface Card CE12800

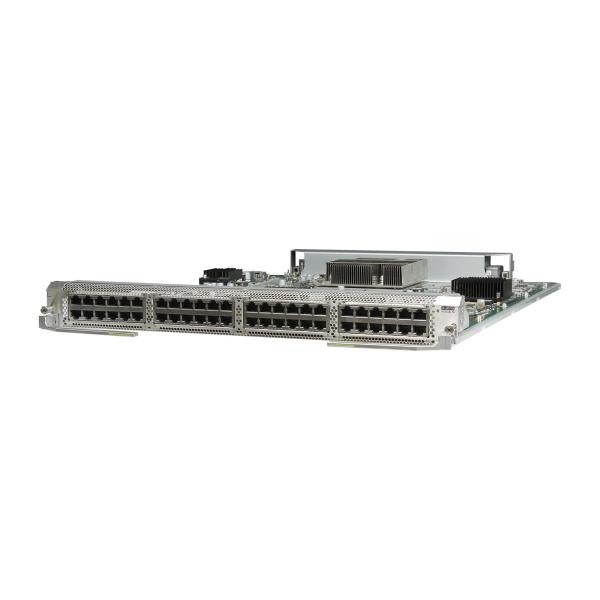

CE-L48GT-EA 48-Port Interface Card CE12800

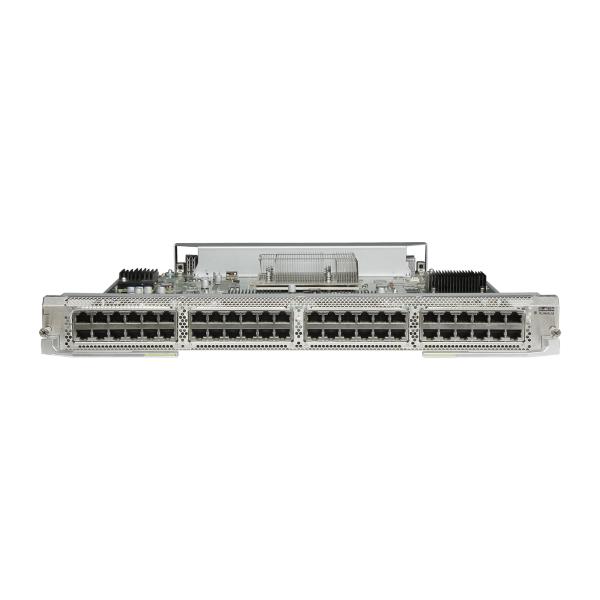

CE-L48GT-EA 48-Port Interface Card CE12800
Product Selling Points
CE-L36LQ-FD
Card Name
CE12804 Chassis Supported in V100R002C00 and later versions
CE12808 Chassis Supported in V100R002C00 and later versions
CE12812 Chassis Supported in V100R002C00 and later versions
CE12816 Chassis Supported in V100R003C00 and later versions
CE12804S Chassis Supported in V100R005C00 and later versions
CE12808S Chassis Supported in V100R005C00 and later versions
