Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Specifications
Brand Name :
OEM
Model Number :
S7703
Place of Origin :
Beijing, China
Packaging Details :
box
Supply Ability :
10000 Set/Sets per Month
MOQ :
2 sets
Price :
$200.00 - $1,500.00/sets
Products Status :
Stock
Ports :
24
Transmission Rate :
10/100/1000Mbps
Function :
LACP, SNMP, Stackable, VLAN Support, LACP, Stackable, VLAN Support
Communication Mode :
Full-Duplex & Half-Duplex
Switch Capacity :
1.92 Tbps, 1.92 Tbps
Product Name :
China Supplier High-end Brand Network Switches s7703
Products Status: :
Stock
color :
black or any
Condition: :
100% Original Brand
Dimensions (H x Wx D mm) :
175,4U *442*517.4
MPU Slot :
2
Forwarding performance :
1440Mpps
chassis weight :
10kg
Port :
Beijing
Description
Seamless Networking Made Easy with Stocked LACP Function Network Switches s7703
Products Description
S7700 Series Smart Routing Switches
The S7700 series provide service optimization features like wired and wireless convergence, unified user management, quality
awareness (iPCA), H-QoS, and united security. They provide 100 GE ports, support SVF 2.0, and have superb scalability and
reliability.
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
CloudEngine S6730-H Series 10 GE Switches
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Item
S7703
S7703 PoE
S7706/S7706 PoE
S7712
Switching capacity
1.92 Tbps
4.8 Tbps
4.32 Tbps
4.64Tbps
Forwarding performance
1440 Mpps
3600 Mpps
3240 Mpps
3480 Mpps
Wireless Network Management
Native AC
AP access control, AP region management, and AP profile management
Radio profile management, uniform static configuration, and centralized dynamic management
Basic WLAN services, QoS, security, and user management
Deployment of ACs on different network layers
User Management
Unified user management
802.1x, MAC address, and Portal authentication
Traffic-based and time-based accounting
User authorization based on user groups, domains, and time ranges
Routing
IPv4 static routes, RIP, OSPF, IS-IS, and BGP4
IPv6 static routes, RIPng, OSPFv3, IS-ISv6, and BGP4+
IPv4/IPv6 equal-cost routes, policy routing, and route policy
IPv4 and IPv6 stack
Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, and ICMPv6
IPv4-to-IPv6 transition technologies, such as IPv6 manual tunnel, 6 to 4 tunnel, ISATAP tunnel, GRE tunnel, and IPv4-compatible
automatic tunnel
iPCA
Adds marks on service packets in order to measure the number of lost packets and packet loss ratios in real time with zero payload
Measures the number of lost packets and packet loss ratios at the network and device levels on Layer 2 and Layer 3 networks
SVF
Up to 256 clients (access switches) and 4,096 APs virtualized into a single device
2-level AS structure
Unified management on Huawei and non-Huawei devices
Buffer Capacity
Up to 200 ms per port
Interoperability
VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)
Link-type Negotiation Protocol (LNP) (similar to DTP)
VLAN Central Management Protocol (VCMP) (similar to VTP)
Optional Module
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function

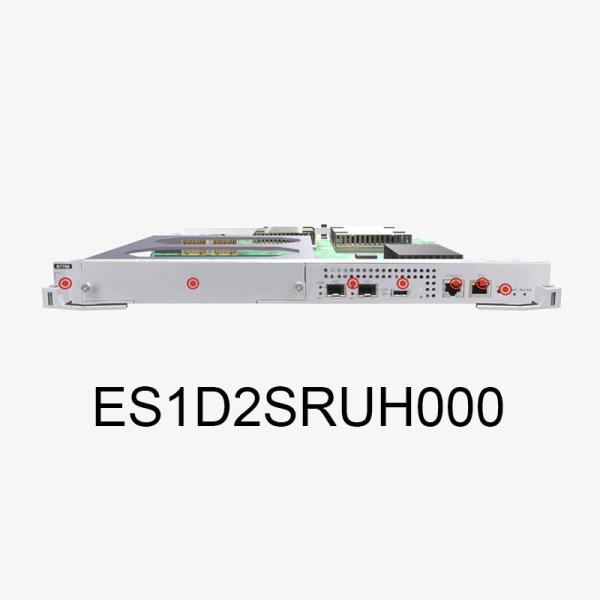

SRU
* A main control unit, installed in slot 13 or 14 of an S7712
* S7712's core component for system control and management, integrating main control, clock, and system maintenance units
* Supports hot swapping and redundancy
LPU
* Service interface card for S7712, installed in any of slots 1 to 12
* Supports LAN/WAN switchover
* Supports hot swapping
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
* Service interface card for S7712, installed in any of slots 1 to 12
* Supports hot swapping
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
* Service interface card for S7712, installed in any of slots 1 to 12
* Supports hot swapping
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Power Module
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Others
* 2200 W AC power module, a maximum of 2200 W power output, 3 U high standard structure
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Customer Reviews
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
More Products
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Company Profile
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Certifications
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Product packaging
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
VR
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
Seamless 24 Port Poe Switch S7703 With Stocked LACP Function
FAQ
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.

Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.

Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.

Q4: What's your warranty terms?
A: We supply 12 months warranty time.

Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
