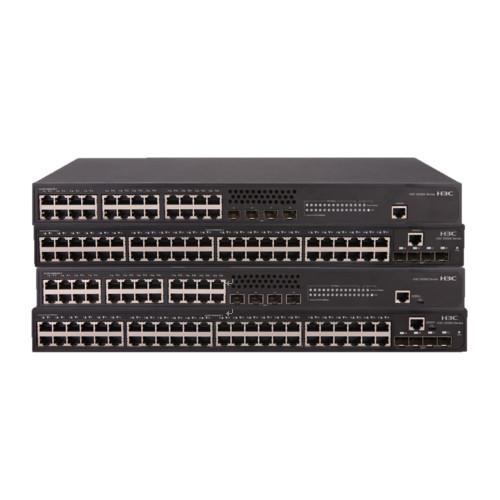

24 * 10/100/1000Base-T Ports H3C LS-5560S-28S-SI Network Switch for Fast Connectivity
24 * 10/100/1000Base-T Ports H3C LS-5560S-28S-SI Network Switch for Fast Connectivity
Specifications
Products Status :
Stock
Ports :
24
Transmission Rate :
10/100/1000Mbps
Function :
LACP, Stackable, VLAN Support
Communication Mode :
Full-Duplex & Half-Duplex
Switch Capacity :
128Gbps
Brand Name :
jytch
Model Number :
H3C LS-5560S-28S-SI
Place of Origin :
Beijing, China
Product Name :
H3C LS-5560S-28S-SI 24 Gigabit electrical ports Network switch
Switching capacity :
128Gbps
Packet forwarding rate :
96Mpps
Operating temperature :
0°C to 45°C (32°F to 113°F)
Dimensions (H * W * D) :
43.6 * 440 * 160 mm
Weight :
< 2.5 kg
Management Ethernet ports :
1 console port
SDRAM/Flash :
512MB/256MB
Maximum stacking num :
9
Service ports :
24 * 10/100/1000Base-T
Packaging Details :
box
Port :
Beijing
Supply Ability :
10000 Set/Sets per Month
Price :
$500.00 - $800.00/sets
Description
Products Description


H3C S5560S-SI is the latest development of Gigabit Layer 3 access switch. It’s the second generation intelligent managed switches designed for networks requiring high performance, high port density, high uplink bandwidth and easy to deploy.
H3C S5560S-SI series switch offers Gigabit connectivity with10/100/1000 autosensing ports and 1G or 10G optical uplink.
H3C S5560S-SI series switch includes four models as follows:
S5560S-28P-SI: 24*10/100/1000TX Ethernet ports + 4*SFP ports;
S5560S-52P-SI: 48*10/100/1000TX Ethernet ports + 4*SFP ports;
S5560S-28S-SI: 24*10/100/1000TX Ethernet ports + 4*SFP+ ports;
S5560S-52S-SI: 48*10/100/1000TX Ethernet ports +4*SFP+ ports;
24 * 10/100/1000Base-T Ports H3C LS-5560S-28S-SI Network Switch for Fast Connectivity
Item
S5560S-28P-SI
S5560S-52P-SI
S5560S-28S-SI
S5560S-52S-SI
Switching capacity
56Gbps
104Gbps
128Gbps
176Gbps
Packet forwarding rate
42Mpps
78Mpps
96Mpps
132Mpps
Dimensions (H × W × D)
43.6 × 440 × 160 mm
43.6 × 440 × 230 mm
43.6 × 440 × 160 mm
43.6 × 440 × 230 mm
Weight
< 2.5 kg
< 3.5 kg
< 2.5 kg
< 3.5 kg
Management Ethernet ports
1 console port
SDRAM/Flash
512MB/256MB
Maximum stacking num
9
Stacking bandwidth
16Gbps
80Gbps
Service ports
24 × 10/100/1000Base-T autosensing Ethernet ports 4 × SFP ports
48 × 10/100/1000Base-T autosensing Ethernet ports
4 × SFP ports
24 × 10/100/1000Base-T autosensing Ethernet ports
4 × 10G SFP+ ports
48× 10/100/1000Base-T autosensing Ethernet ports
4 × 10G SFP+ ports
Power consumption
MIN: AC 9W MAX: AC 23W
MIN: AC 18W MAX: AC 41W
MIN: AC 10W MAX: AC 24W
MIN: AC 19W
MAX: AC 44W
Operating temperature
0ºC to 45ºC (32°F to 113°F)
Operating humidity
10% RH to 90% RH, non-condensing
Link aggregation
1G/10G port aggregation Static aggregation Dynamic aggregation Multichassis link aggregation
