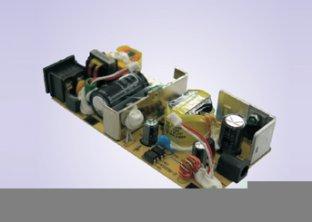

36W 180V - 264V 50hz / 60hz USB port Open Frame Power Supplies for Set-top-box
36W 180V - 264V 50hz / 60hz USB port Open Frame Power Supplies for Set-top-box
36W 180V - 264V 50hz / 60hz USB port Open Frame Power Supplies for Set-top-box
36W 180V - 264V 50hz / 60hz USB port Open Frame Power Supplies for Set-top-box
Specifications
Place of Origin :
Guangdong, China (Mainland)
Model Number :
KSOP036
Certification :
US,CCC,UL,CUL,CCC,GS,CE,FCC,EMC,BEAB,SAA,KETI
Output Type :
AC
Usage :
Switching
MOQ :
1000 Piece/Pieces
Delivery Time :
20days
Payment Terms :
T/T
Supply Ability :
1000000 Piece/Pieces per Month
Port :
Hong Kong Shenzhen
Description
Key Features of KO36-2
●Green power, full complies with CEC level V, MEPS V EUP2011
●Extremely low no-load standby power
●Completed OCP OVP OTP protect function
●Ambient temperature up to 80℃

Key Applications of KO36-2
●Set-top-box

Input

●Input Voltage : 180 to 264 VAC
●Frequency : 47-50/60-63hz

●Inrush Current : 45A Max 230VAC at max Load

●Leakage Current : 0.25mA Max

Output

●Over voltage protection

●Over current protection

●Over temperature protection

●Electronic short circuit protection

●Operatingtemperature 0~80℃Free convection

●Operating humidity 10-90% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment
IEC/EN 60950-1

Certificates and approvals

●Applied with customer’s products

EMI Emission

●Radiation Test&Conduction Test: EN 55022/FCC Part 15
●Harmonic Test: EN 61000-3-2

EMS immunity

●E S D Test : EN 61000-4-2
●S u r g e Test : EN 61000-4-5

Mechanical SPEC

Dimension L*W*H (mm) :117x58x25.3mm
Product tables for 36W

Packing & shipping

Down Load
Product tags

open frame ac dc power supply

,

open frame power supply

,

external desktop power supply
