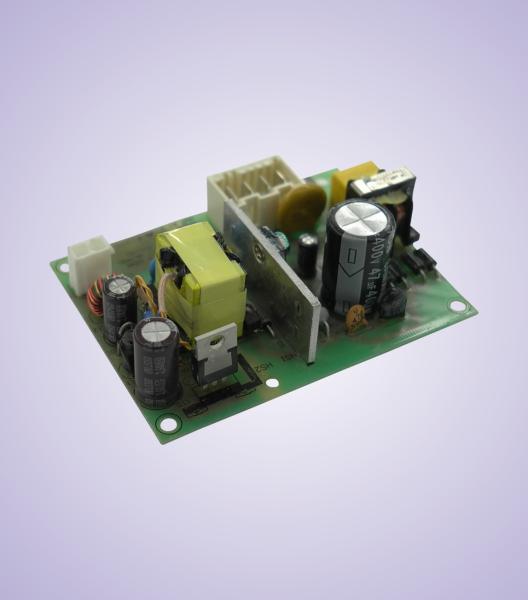

25W Open Frame Power Supplies
25W Open Frame Power Supplies
25W Open Frame Power Supplies
25W Open Frame Power Supplies
25W Open Frame Power Supplies
25W Open Frame Power Supplies
Specifications
Place of Origin :
Guangdong, China (Mainland)
Model Number :
KSOP025
Certification :
US,CCC,UL,CUL,CCC,GS,CE,FCC,EMC,BEAB,SAA,KETI
Output Type :
AC
Usage :
Switching
MOQ :
1000 Piece/Pieces
Delivery Time :
20days
Payment Terms :
T/T
Supply Ability :
1000000 Piece/Pieces per Month
Port :
Hong Kong Shenzhen
Description

25W Open Frame Power Supplies

Key features of KSOP0251400180

●Light, extra slim, sleek, compact design

●Green power, full complies with CEC level V MEPS V EUP2011

●High power density

●Extra safe design, have got their respective safety approvals

●ompleted protect function

Key Applications of KSOP0251400180

It’s suit for an extremely wide range of applications including:

●Set-top-box

●ADSL

●Hard disk drive

●Audio & Video product

●Household applianec

●Washing machine

Input

●Input Voltage : 100 to 120 VAC

●Frequency : 47-50/60-63hz

●Input current : 0.8A(Max) 120 /240VAC

●Inrush current : 50AMax.120VAC at max. Load

●Leakage current: 0.25 mA Max

Output

●Over voltage protection

●Over current protection

at 110-200% of lo and Auto-recovery

●Electronic short circuit protection

●Operatingtemperature 0~75℃Free convection

●Operating humidity 10-80% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment

●UL1310

Certificates and approvals

●UL1310 SAFETY

EMI Emission

●Radiation Test&Conduction Test: EN 55022/FCC Part 15

●Harmonic Test : EN 61000-3-2

●Flicker Test : EN 61000-3-3

EMS immunity

●ESD Test: EN 61000-4-2

●RS Test: EN 61000-4-3

●EFT Test: EN 61000-4-4

●Surge Test: EN 61000-4-5

●CS Test: EN 61000-4-6

●DIP Test: EN 61000-4-11

Mechanical SPEC

Dimension L*W*H(mm): 89*67*28

Product tables for 25W

Packing & shipping

Down Load
