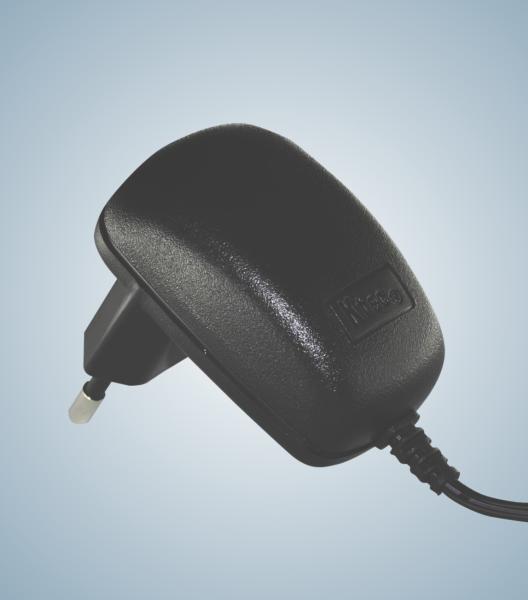

1W 0.15A 110v, 220v, 250v Hybrid AC DC Switching Power Supply for MP3 / MP4 With 2 Pin
1W 0.15A 110v, 220v, 250v Hybrid AC DC Switching Power Supply for MP3 / MP4 With 2 Pin
1W 0.15A 110v, 220v, 250v Hybrid AC DC Switching Power Supply for MP3 / MP4 With 2 Pin
1W 0.15A 110v, 220v, 250v Hybrid AC DC Switching Power Supply for MP3 / MP4 With 2 Pin
1W 0.15A 110v, 220v, 250v Hybrid AC DC Switching Power Supply for MP3 / MP4 With 2 Pin
1W 0.15A 110v, 220v, 250v Hybrid AC DC Switching Power Supply for MP3 / MP4 With 2 Pin
Specifications
Place of Origin :
Guangdong, China (Mainland)
Model Number :
KSAP001
Certification :
US,CCC,UL,CUL,CCC,GS,CE,FCC,EMC,BEAB,SAA,KETI
MOQ :
1000PCS
Payment Terms :
T/T
Supply Ability :
1M/Month
Price :
Negotiable
Packaging Details :
PE bag+ white box
FOB :
Shenzhen Hongkong
Description


1W 0.15A 110v, 220v, 250v Hybrid AC DC Switching Power Supply for MP3 / MP4 With 2 Pin

Key Features of KSAP001

Products highlights

●High Power Density

●Full EN60950 ITE Safety Approval

●MTBF 50K hours@25℃ (MIL-HDBK-217F)

●ESD: ±8KV/±15KV, contact discharging±8KV

●Operating temp Range ( 0℃ to 50℃)

Key Applications of KSAP001

It’s suitable for an extremely wide Range of applications, including:

●General Adapter Use

●Charger for MP3/MP4

Input

●Input Voltage: 90 to 264 VAC

●Frequency : 47-50/60-63hz

●Input current : 0.15A(Max) 100 /240VAC

●Inrush current : 50AMax. 120VAC at max Load

●Leakage current : 0.25 mA Max

Output

●Over voltage protection

●Over current protection

at 110-200% of lo and Auto-recovery

●Electronic short circuit protection

●Ripple&noise 20MHz bandwidth: 200mV

●Efficiency 52.9% Measured at 25℃

●Operating temperature 0~40℃free convection

●Sea level Non-operating temperature-20~80℃

●Operating humidity 10-90% RH NonCondensing

Safety standards

●Information technology equipment

●EN60950

Certificates and approvals

●Test report for IEC 60950-1

EMI Emission

●FCC Part 15 Class B

●EN55022 class B EN55024 Class B

●AS/NZS CISPR 22

EMS immunity

●ESD Test:EN 61000-4-2

●RS Test:EN 61000-4-3

●EFT Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS Test:EN 61000-4-6

●DIP Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 57*35*22

Product tables for 1W

Packing & shipping

Down Load
Product tags

mp3 power supply

,

power amplifier 2400w

,

output charger
Send your message to this supplier
Send Now

1W 0.15A 110v, 220v, 250v Hybrid AC DC Switching Power Supply for MP3 / MP4 With 2 Pin

Ask Latest Price
Product Detail
Place of Origin :
Guangdong, China (Mainland)
Model Number :
KSAP001
Certification :
US,CCC,UL,CUL,CCC,GS,CE,FCC,EMC,BEAB,SAA,KETI
MOQ :
1000PCS
Payment Terms :
T/T
Supply Ability :
1M/Month
Contact Supplier
1W 0.15A 110v, 220v, 250v Hybrid AC DC Switching Power Supply for MP3 / MP4 With 2 Pin
1W 0.15A 110v, 220v, 250v Hybrid AC DC Switching Power Supply for MP3 / MP4 With 2 Pin
1W 0.15A 110v, 220v, 250v Hybrid AC DC Switching Power Supply for MP3 / MP4 With 2 Pin

HONG KONG BESTWAY CO.LTD (SHENZHEN ALL-KEY TECHNOLOGY CO. LTD)

Active Member
17 Years
guangdong, shenzhen
Since 2001
Business Type :
Manufacturer
Main Products :
Universal AC Power Adapter, Switching Power Adapters, AC DC Switching Power Supply
Total Annual :
500 Million-700Million
Employee Number :
6000~7000
Certification Level :
Active Member
