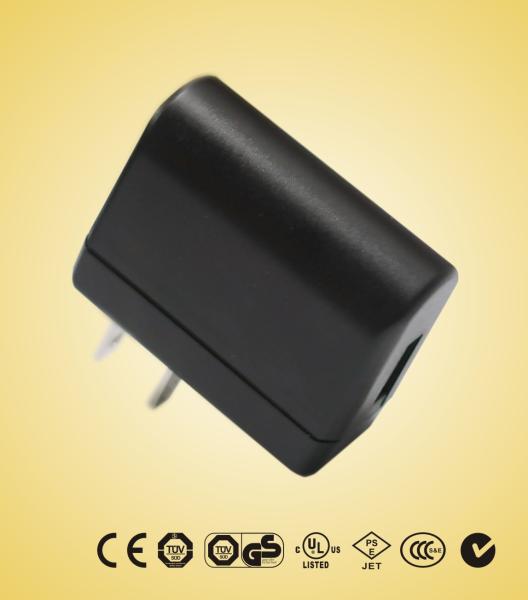

Mobile Phone 47hz - 50hz / 60hz - 63hz Auto 5W Universal USB Power Adapter by CEC level V
Mobile Phone 47hz - 50hz / 60hz - 63hz Auto 5W Universal USB Power Adapter by CEC level V
Mobile Phone 47hz - 50hz / 60hz - 63hz Auto 5W Universal USB Power Adapter by CEC level V
Mobile Phone 47hz - 50hz / 60hz - 63hz Auto 5W Universal USB Power Adapter by CEC level V
Specifications
Place of Origin :
Guangdong China
Model Number :
KSAS006
Certification :
US,UK,EU,AU
MOQ :
1000PCS
Payment Terms :
T/T
Supply Ability :
Shenzhen HongKong
Price :
negotiable
Packaging Details :
PE+ white box
FOB :
Shenzhen Hongkong
Description

Key Features of KSAS006 series

●Green power, full complies with CEC level V, MEPS V EUP2011

●High power density

●Extra safe design, have got their respective safety approvals

●Completed protect function

Key Applications of KSAS006 series

It’s suitable for an extremely wide range of applications, including:

●Mobile Devices

●Set-top-box

●ADSL

●Audio & Video product

●Household appliance

●Charger

Input

●Input Voltage : 90 to 264 VAC

●Frequency : 47-50/60-63hz

●Input current : 0.18A(Max) 100 /240VAC

●Inrush current : 15AMax. 120VAC at max. Load

30AMax.240VAC at max. Load

●Leakage current : 0.25 mA Max

Output

●Over voltage protection

●Over current protection

at 110-200% of lo and Auto-recovery

●Electronic short circuit protection

●Operatingtemperature 0~40℃Free convection

●Operating humidity 10-90% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment

●IEC/EN 60950-1, UL 60950-1, CSA C22.2

No. 60950-1-03, GB4943, UL60065

Certificates and approvals

●CB , GS , CE , TUV, UL , CCC , FCC, PSE, C-TICK

EMI Emission

●Radiation Test&Conduction Test: EN 55022/FCC Part 15

●Harmonic Test:EN 61000-3-2

●Flicker Test:EN 61000-3-3

EMS immunity

●ESD Test:EN 61000-4-2

●RS Test:EN 61000-4-3

●EFT Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS Test:EN 61000-4-6

●DIP Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 54.0 * 24* 40.5

Product tables for 6W

Packing & shipping

Down Load
Product tags

samsung notebook power adapter

,

samsung laptop power adapter

,

samsung power adapter
