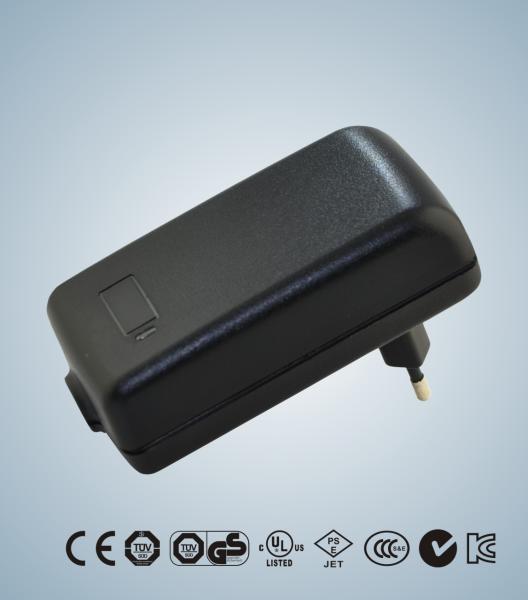

45W single pin 1.2A 90V to 264V AC DC Switching Power Supply
45W single pin 1.2A 90V to 264V AC DC Switching Power Supply
45W single pin 1.2A 90V to 264V AC DC Switching Power Supply
45W single pin 1.2A 90V to 264V AC DC Switching Power Supply
Specifications
Place of Origin :
Guangdong, China (Mainland)
Model Number :
KSAS045
Certification :
US,CCC,UL,CUL,CCC,GS,CE,FCC,EMC,BEAB,SAA,KETI
MOQ :
1000PCS
Payment Terms :
T/T
Supply Ability :
1M/Month
Price :
Negotiable
Packaging Details :
PE bag+ white box
FOB :
Shenzhen Hongkong
Description

Key Features of KSAS045 series

●Light, extra slim, sleek, compact design

●Green power, full complies with CEC level V, MEPS V EUP2011

●High power density

●Extra safe design, have got their respective safety approvals

●Completed protect function

Key Applications of KSAS045 series

It’s suitable for an extremely wide range of applications, including:

●Mobile Devices

●Laptop

●Printer

●Pos

●Hard disk drive

●Set-top-box

Input

●Input Voltage : 90 to 264 VAC

●Frequency : 47-50/60-63hz

●Input current : 1.2A(Max) 120 /240VAC

●Input current : 50AMax. 120VAC at max Load

80AMax.240VAC at max Load

●Leakage current:0.25 mA Max

Output

●Over voltage protection

●Over current protection

at 110-200% of lo and Auto-recovery

●Electronic short circuit protection

●Operatingtemperature 0~35℃Free convection

●Operating humidity 10-90% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment

●IEC/EN 60950-1, UL 60950-1, CSA C22.2

No. 60950-1-03, GB4943, K60950

Certificates and approvals

●CB , GS , CE , TUV , UL , CCC , FCC, PSE, C-TICK

EMI Emission

●Radiation Test&Conduction Test :EN 55022/FCC Part 15

●Harmonic Test : EN 61000-3-2

●Flicker Test : EN 61000-3-3

EMS immunity

●ESD Test:EN 61000-4-2

●RS Test:EN 61000-4-3

●EFT Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS Test:EN 61000-4-6

●DIP Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H(mm): 107*51.5*33.5

Product tables for 45W

Packing & shipping

Down Load
