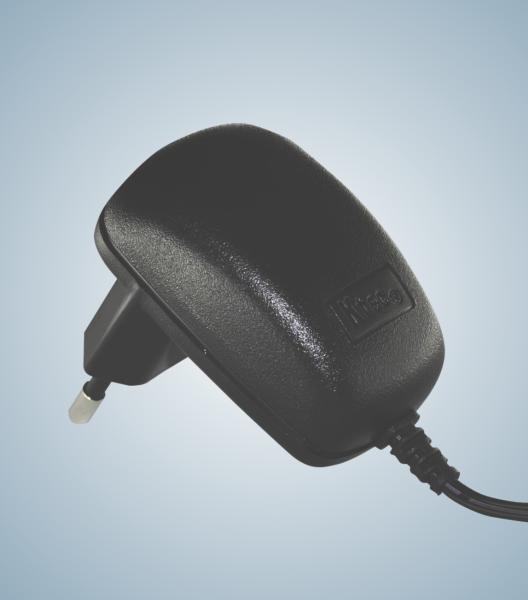

1W KSAP001 Switching Power Adapters with 5VDC 2A EN60950 ITE Safety Approval Charger for MP3/MP4
1W KSAP001 Switching Power Adapters with 5VDC 2A EN60950 ITE Safety Approval Charger for MP3/MP4
Specifications
Place of Origin :
China Mainland
Certification :
IEC 60950-1
Model Number :
1W KSAP001
MOQ :
1000pcs
Price :
Negotiable
Packaging Details :
PE bag + White box
Delivery Time :
35days
Payment Terms :
T/T
Supply Ability :
1Million/Month
Description

1W KSAP001 Switching Power Adapters with 5VDC 2A EN60950 ITE Safety Approval Charger for MP3/MP4 and general adapter use

Brand Name: •
Input: •Input Voltage: 90 to 264 VAC
•Frequency : 47-50/60-63HZ
•Input current : 0.15A (Max) 100 /240VAC
•Inrush current : 50A Max. 120VAC at max Load
•Leakage current: 0.25 mA Max
Output: •Over voltage protection
•Over current protection
at 110-200% of lo and Auto-recovery
•Electronic short circuit protection
•Ripple&noise 20MHz bandwidth: 200mV
•Efficiency 52.9% Measured at 25℃
•Operating temperature 0~40℃ free convection
•Sea level Non-operating temperature-20~80℃
•Operating humidity 10-90% RH NonCondensing
Safety standards: •Information technology equipment
•EN60950
Certificates and approvals: •Test report for IEC 60950-1
EMI Emission: •FCC Part 15 Class B
•EN55022 class B EN55024 Class B
•AS/NZS CISPR 22
EMS immunity: •ESD Test:EN 61000-4-2
•RS Test:EN 61000-4-3
•EFT Test:EN 61000-4-4
•Surge Test:EN 61000-4-5
•CS Test:EN 61000-4-6
•DIP Test:EN 61000-4-11
Key Applications: Key Features of KSAP001
•Products highlights
•High Power Density
•Full EN60950 ITE Safety Approval
•MTBF 50K hours@25℃ (MIL-HDBK-217F)
•ESD: ±8KV/±15KV,contact discharging±8KV
•Operating temp Range ( 0℃ to 50℃)

Key Applications of KSAP001
•It’s suitable for an extremely wide Range of applications, including:
•General Adapter Use
•Charger for MP3/MP4
Payment Details: •Payment Terms: T/T,negotiable for OEMs
Main Export Markets: • Eastern Europe
• North America
• Mid East/Africa
• Central/South America
• Asia
• Western Europe
• Australasia
