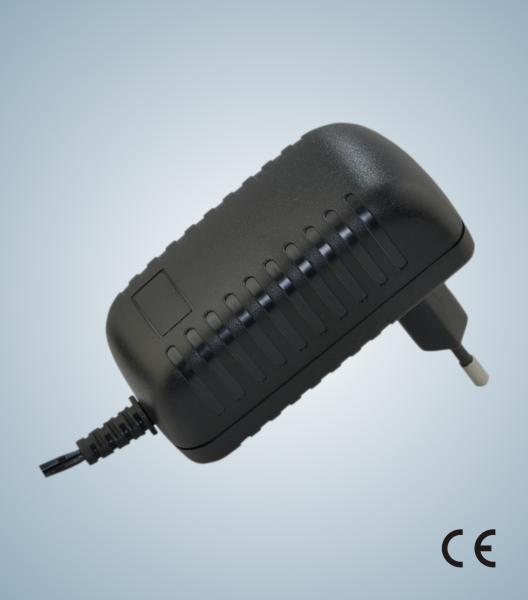

12W KSAP0121200100HE-H Switching Power Adapters with 12VDC 1A CB , CE Safety Approval for Mobile Devices ADSL Pos
12W KSAP0121200100HE-H Switching Power Adapters with 12VDC 1A CB , CE Safety Approval for Mobile Devices ADSL Pos
Specifications
Place of Origin :
China Mainland
Certification :
CB , CE
Model Number :
12W KSAP0121200100HE-H
MOQ :
1000pcs
Price :
Negotiable
Packaging Details :
PE bag + White box
Delivery Time :
35days
Payment Terms :
T/T
Supply Ability :
1Million/Month
Description

12W KSAP0121200100HE-H Switching Power Adapters with 12VDC 1A CB , CE Safety Approval for Mobile Devices ADSL Pos IEC60950 approval

Brand Name: •
Input: •Input Voltage: 90 to 264 VAC
•Frequency : 47-50/60-63hz
•Input current :0.4A (Max) 120 /240VAC
•Inrush current: 60A Max. 120VAC at max Load
100A Max 240VAC at max Load
•Leakage current : 0.25 mA Max
Output: •Over voltage protection
•Over current protection
at 250% of lo and Auto-recovery
•Electronic short circuit protection
•Operating temperature 0~40℃ Free convection
•Operating humidity 10-90% RH Non Condensing
•Sea level Non-operating temperature -20~ 80℃
Safety standards: •Information technology equipment
•IEC/EN 60950-1, UL 60950-1, CSA C22.2
No. 60950-1-03
Certificates and approvals: •Test report for EN60601
EMI Emission: •Radiation Test&Conduction Test:EN 55022/FCC Part 15
•Harmonic Test : EN 61000-3-2
•Flicker Test : EN 61000-3-3
EMS immunity: •ESD Test:EN 61000-4-2
•RS Test:EN 61000-4-3
•EFT Test:EN 61000-4-4
•Surge Test:EN 61000-4-5
•CS Test:EN 61000-4-6
•DIP Test:EN 61000-4-11
Key Applications: Key features of KSAP0121200100HE-H
Light, extra slim, sleek, compact design
Green power, full complies with CEC level V, MEPS IV EUP2011
High power density
Extra safe design, have got their respective safety approvals
Completed protect function

Key Applications of KSAP0121200100HE-H
It’s suitable for an extremely wide range of applications, including:
Mobile Devices
ADSL
Pos
Audio & Video product
Household appliance
Set-top-box
Payment Details: •Payment Terms: T/T,negotiable for OEMs
Main Export Markets: • Eastern Europe
• North America
• Mid East/Africa
• Central/South America
• Asia
• Western Europe
• Australasia
