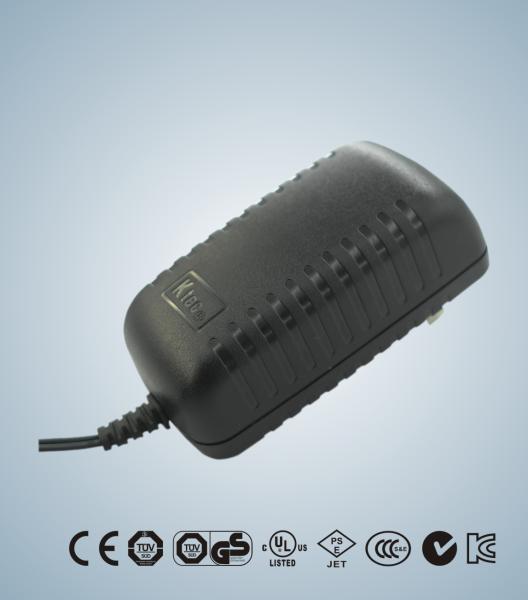

25W KSAFF Series Switching Power Adapters with 3-24VDC 1.25-4A OTP,OVP,SCP for Laptop,Mobile Devices
25W KSAFF Series Switching Power Adapters with 3-24VDC 1.25-4A OTP,OVP,SCP for Laptop,Mobile Devices
Specifications
Place of Origin :
China Mainland
Certification :
CB , GS , CE , TUV, UL , CCC , FCC, C-TICK, PSE,KC
Model Number :
25W KSAFF Series
MOQ :
1000pcs
Price :
Negotiable
Packaging Details :
PE bag + White box
Delivery Time :
35days
Payment Terms :
T/T
Supply Ability :
1Million/Month
Description

25W KSAFF Series Switching Power Adapters with 3-24VDC 1.25-4A OTP,OVP,SCP for Laptop,Mobile Devices,printer,UL60950 approval

Brand Name: •
Input: •Input Voltage: 90 to 264 VAC
•Frequency : 47-50/60-63HZ
•Input current : 0.8A (Max) 120 /240VAC
•Inrush current : 30A Max. 120VAC at max Load
60A Max.240VAC at max Load
•Leakage current: 0.25 mA Max
Output: •Over voltage protection
•Over current protection
at 110-200% of lo and Auto-recovery
•Electronic short circuit protection
•Operating temperature 0~35℃ Free convection
•Operating humidity 10-90% RH Non Condensing
•Sea level Non-operating temperature -20~ 80℃
Safety standards: •Information technology equipment
•IEC/EN 60950-1, UL 60950-1, CSA C22.2
No. 60950-1-03,GB4943,K60950
Certificates and approvals: •CB , GS , CE , TUV, UL , CCC , FCC, C-TICK, PSE,KC
EMI Emission: •Radiation Test&Conduction Test:EN 55022/FCC Part 15
•Harmonic Test:EN 61000-3-2
•Flicker Test:EN 61000-3-3
EMS immunity: •ESD Test:EN 61000-4-2
•RS Test:EN 61000-4-3
•EFT Test:EN 61000-4-4
•Surge Test:EN 61000-4-5
•CS Test:EN 61000-4-6
•DIP Test:EN 61000-4-11
Key Applications: Key Features of KSAFF series
•Light, extra slim, sleek, compact design
•Green power, full complies with CEC level IV, MEPS IV EUP2010
•High power density
•Extra safe design, have got their respective safety approvals
•Completed protect function

Key Applications of KSAFF series
•It’s suitable for an extremely wide range of applications, including:
•Mobile Devices
•Laptop
•Printer
•Pos
•ADSL
•Hard disk drive
Payment Details: •Payment Terms: T/T,negotiable for OEMs
Main Export Markets: • Eastern Europe
• North America
• Mid East/Africa
• Central/South America
• Asia
• Western Europe
• Australasia
