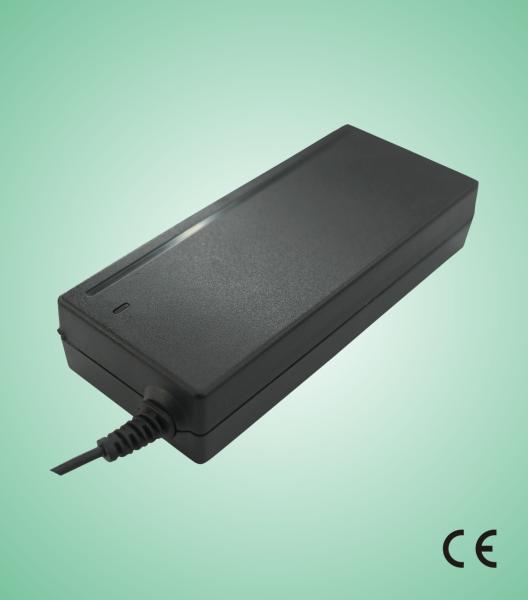

90W 40V - 120V AC Desktop Switching Power Supply by CEC level V, MEPS V, EUP2011
90W 40V - 120V AC Desktop Switching Power Supply by CEC level V, MEPS V, EUP2011
Specifications
Place of Origin :
Guangdong, China (Mainland)
Certification :
UL,CCC,GS,TUV,C-Tick
Output Type :
DC
Usage :
Laptop
Connection :
Desktop
MOQ :
1000 Piece/Pieces
Payment Terms :
T/T
Supply Ability :
300000 Piece/Pieces per Day
FOB :
Shenzhen HK
Model Number :
KSAP0901900474M2
Price :
Negotiable
Packaging Details :
PE bag+ white box
Delivery Time :
35 days
Description


90W 40V - 120V AC Desktop Switching Power Supply by CEC level V, MEPS V, EUP2011
Key features of KSAP0901900474M2
●Light, extra slim, sleek, compact design
●Green power, full complies with CEC level V, MEPS V EUP2011
●High power density
●Extra safe design, have got their respective safety approvals
●Completed protect function
Key Applications of KSAP0901900474M2
It’s suitable for an extremely wide range of applications, including:
●Laptop
●Set-top-box
●ADSL
●Hard disk drive
●Audio & Video product
●Household appliance

Input

●Input Voltage: 90 to 264 VAC
●Frequency : 47-50/60-63hz
●Input current : 1.2A(Max)
●Inrush current : 60AMax 120VAC at max Load
60AMax 40VAC at max Load
●Leakage current :0.25 mA Max

Output

●Over voltage protection
●Over current protection
at 110-200% of lo and Auto-recovery
●Over temperature protection
●Electronic short circuit protection
●Operatingtemperature 0~35 ℃Free convection
●Operating humidity 10-90% RH Non Condensing
●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment
●IEC/EN 60950-1

Certificates and approvals

●CE

EMI Emission

●Radiation Test&Conduction Test:EN 55022
●Harmonic Test : EN 61000-3-2
●Flicker Test : EN 61000-3-3

EMS immunity


●ESD Test:EN 61000-4-2
●RS Test:EN 61000-4-3
●EFT Test:EN 61000-4-4
●Surge Test:EN 61000-4-5
●CS Test:EN 61000-4-6
●DIP Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 149*63.5*31.8

90W 40V - 120V AC Desktop Switching Power Supply by CEC level V, MEPS V, EUP2011

Product tables for 90W

90W 40V - 120V AC Desktop Switching Power Supply by CEC level V, MEPS V, EUP2011

Packing & shipping

90W 40V - 120V AC Desktop Switching Power Supply by CEC level V, MEPS V, EUP2011

Down Load
90W 40V - 120V AC Desktop Switching Power Supply by CEC level V, MEPS V, EUP2011
