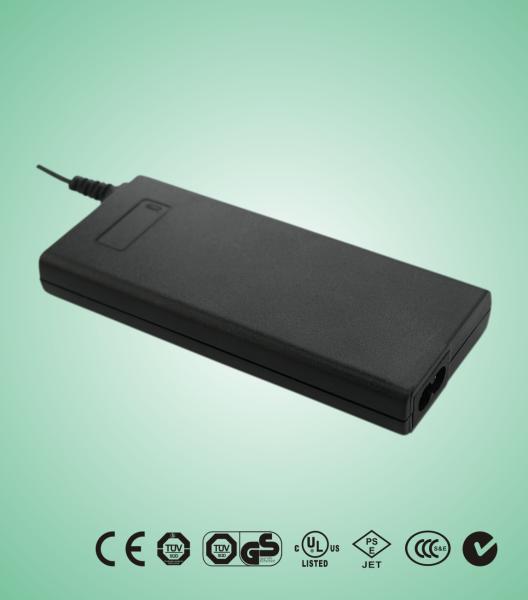

Green 2 / 3 prong 120v - 240v 45W usb port Desktop Switching Power Supply
Green 2 / 3 prong 120v - 240v 45W usb port Desktop Switching Power Supply
Specifications
Place of Origin :
Guangdong, China (Mainland)
Certification :
UL,CCC,GS,TUV,C-Tick
Output Type :
DC
Usage :
Laptop
Connection :
Desktop
MOQ :
1000 Piece/Pieces
Payment Terms :
T/T
Supply Ability :
300000 Piece/Pieces per Day
FOB :
Shenzhen HK
Model Number :
KSUS045
Price :
Negotiable
Packaging Details :
PE bag+ white box
Description

Key Features of KSUS045 series

●Light, extra slim, sleek, compact design

●Green power, full complies with CEC level V, MEPS V EUP2011

●High power density

●Extra safe design, have got their respective safety approvals

●Completed protect function

Key Applications of KSUS045 series

It’s suitable for an extremely wide range of applications, including:

●Mobile Devices

●Laptop

●Printer

●Pos

●Set-top-box

●ADSL

●Hard disk drive

●Audio & Video product

●Household appliance

Input

●Input Voltage : 90 to 264 VAC

●Frequency : 47-50/60-63hz

●Input current : 1.2A(Max) 100 /240VAC

●Inrush current : 40AMax 120VAC at max Load

80AMax 240VAC at max Load

●Leakage current:0.25 mA Max

Output

●Over voltage protection

●Over current protection

at 110-200% of lo and Auto-recovery

●Over temperature protection

●Electronic short circuit protection

●Operatingtemperature 0~40℃Free convection

●Operating humidity 10-90% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment

●IEC/EN 60950-1, UL 60950-1, CSA C22.2

No. 60950-1-03, GB4943

Certificates and approvals

●CB , GS , CE , TUV, UL , CCC , FCC, PSE, C-TICK

EMI Emission

●Radiation Test&Conduction Test: EN 55022/FCC Part 15

●Harmonic Test : EN 61000-3-2

●Flicker Test : EN 61000-3-3

EMS immunity

●ESD Test:EN 61000-4-2

●RS Test:EN 61000-4-3

●EFT Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS Test:EN 61000-4-6

●DIP Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 120.0 * 52.0 * 17

Green 2 / 3 prong 120v - 240v 45W usb port Desktop Switching Power Supply
Product tables for 45W

Green 2 / 3 prong 120v - 240v 45W usb port Desktop Switching Power Supply

Packing & shipping

Green 2 / 3 prong 120v - 240v 45W usb port Desktop Switching Power Supply

Down Load
Green 2 / 3 prong 120v - 240v 45W usb port Desktop Switching Power Supply
