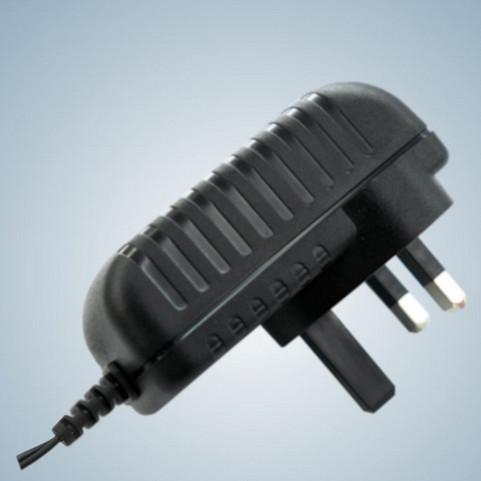

24W Wall Mount Universal AC Power Adapter EN60950 / EN60065 for Electronics KSAS024 Series KTEC
24W Wall Mount Universal AC Power Adapter EN60950 / EN60065 for Electronics KSAS024 Series KTEC
Specifications
Place of Origin :
China Mainland
Certification :
CE GS BS UL CUL SAA AU UK KO PSE
Model Number :
24W KSAS024 Series
MOQ :
1000
Price :
Negotiable
Packaging Details :
PE bag + White box
Delivery Time :
30 days
Payment Terms :
T/T
Supply Ability :
1 Million / Month
Description

24W Wall Mount Universal AC Power Adapter EN60950 / EN60065 for Electronics KSAS024 Series KTEC

Brand Name: •ktec
Input: •Input Voltage: 90 to 264 VAC
•Frequency : 47-50/60-63HZ
•Input current : 0.6A (Max) 120 /240VAC
•Inrush current : 60A Max.240VAC at max Load
•Leakage current: 0.25 mA Max
Output: •Over voltage protection
•Over current protection
at 110-200% of lo and Auto-recovery
•Electronic short circuit protection
•Operating temperature 0~40℃ Free convection
•Operating humidity 10-90% RH Non Condensing
•Sea level Non-operating temperature -20~ 80℃
Safety standards: •Information technology equipment
•IEC/EN 60950-1
•IEC/EN 60065
•UL 60950-1, CSA C22.2
•No. 60950-1-03,GB4943,GB8898
Certificates and approvals: •CB , GS , CE , UL,FCC,3C,PSE,PSB,TUV,C-TICK
EMI Emission: •Radiation Test&Conduction Test:EN 55022/FCC Part 15
•Harmonic Test:EN 61000-3-2
•Flicker Test:EN 61000-3-3
EMS immunity: •ESD Test:EN 61000-4-2
•RS Test:EN 61000-4-3
•EFT Test:EN 61000-4-4
•Surge Test:EN 61000-4-5
•CS Test:EN 61000-4-6
•DIP Test:EN 61000-4-11
Key Applications: Key Features of KSAS024 series
•Light, extra slim, sleek, compact design
•Green power, full complies with CEC level V, MEPS V EUP2011
•High power density
•Extra safe design, have got their respective safety approvals
•Completed protect function

Key Applications of KSAS024 series
It’s suitable for an extremely wide range of applications, including:
•Mobile Devices
•Pos
•Hard disk drive
•Set-top-box
Payment Details: •Payment Terms: T/T,negotiable for OEMs
Main Export Markets: • Eastern Europe
• North America
• Mid East/Africa
• Central/South America
• Asia
• Western Europe
• Australasia
