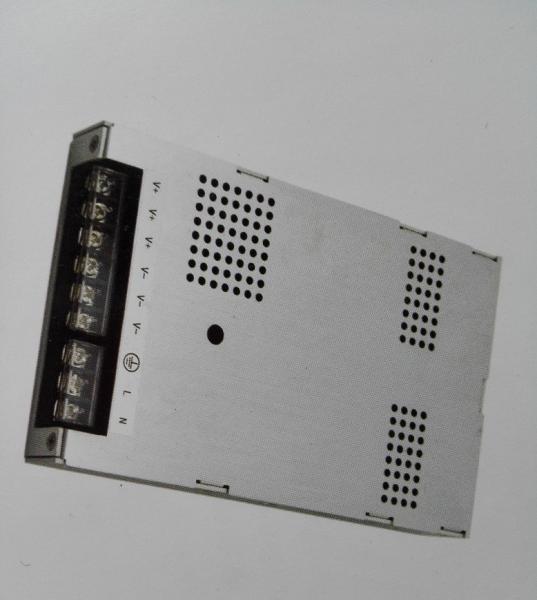

Durable High Voltage Slim Industrial Power Source High Power
Durable High Voltage Slim Industrial Power Source High Power
Specifications
Model Number :
300W slim power supply
Certification :
UL GS FCC CCC CE
Place of Origin :
China Mainland
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A
Delivery Time :
35 days
Packaging Details :
PE bag + White box
Size :
188*115*26MM
Standard :
UL GS FCC CCC CE
Usage :
LED Advertisement display
Name :
300W slim power supply
Description

Durable High Voltage Slim Industrial Power Source High Power

Features :

•Universal AC input:90-264VAC

•Leakage current < 1mA

•PFC built-in,PF>0.95

•LED indicator for power on

•Withsand 300VAC surge input for 10S

•Cooling by air

•Moistureproof Processing

•Protection: short circuit/ over voltage/ over current / over temperature

•Compliance to UL GS FCC CCC CE etc.safety standard

•Size:188*115*26mm

Specifications :

MODEL PS 300-3.3 PS 300-4.2 PS 300-4.6 PS 300-5
Output DC Voltage/DC 3.3V 4.2V 4.6V 5.0V
Current Range 0~60A 0~60A 0~60A 0~60A
Rated Power 300W 300W 300W 300W
Ripple & Noise 150mV 150mV 200mV 200mV
Voltage Tolerance ±3% ±3% ±3% ±3%
Input Voltage Range 90-264VAC 90-264VAC 90-264VAC 90-264VAC
Surge Current 30A 30A 30A 30A
Efficiency 86% 87% 87% 88%
PF Factor ≧0.95 ≧0.95 ≧0.95 ≧0.95
Protection Overload 120%-150% rated output current.Auto recovery after fault condition is removed
Short Circuit Auto recovery after fault condition is removed
Over Voltage Latch off
Over Temperature Recoverable
Envitonment Working Temperature -20℃-70℃
Storage Temperature -40℃-80℃
Safety & EMC Safety Standards UL60950/EN60950
EMC EN55022 Class B, FCC part15 class B
Note All parameters Not specially mentioned are measured at 220VAC input,rated load, 25℃ 70%RH ambient temperature

Quality:

The quality management is strict according to ISO9001 quality management system! All materials and production process completely compliance to Rohs Directive.
