Specifications
Model Number :
MP Series
Certification :
CE/ UL
Place of Origin :
Denmar/kChina
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
1000pcs per month
Delivery Time :
3-7 working days
Packaging Details :
Carton box
Material :
Brass
Refrigerant :
R22 R134A R404A R507 R407C
Type :
orifice assembly
Application :
Refrigeration Parts
Weight :
0.72kg
Pressure difference :
0.65bar
Function :
Oil Pressure Control
Time :
0 second
Size :
2mm
Description

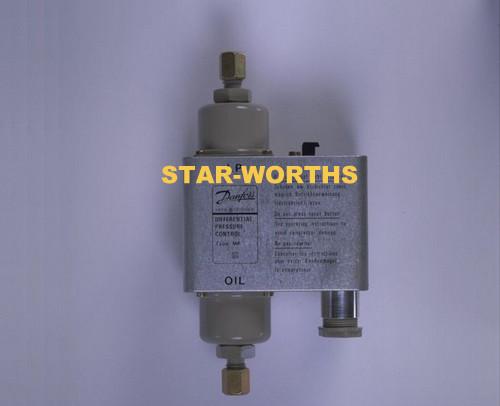

HVAC Oil Differential Pressure Control MP Series MP Oil Differential controller

MP54 and MP55 oil differential pressure controls are used as safety switches to protect refrigeration compressors against low lubricating oil pressure.

If the oil pressure fails the oil differential pressure controls stops the compressor after a certain time period.

MP 54 and 55 are used in refrigerating systems using flourinated refrigerants.

MP 55A is used in refrigerating systems with R717 (NH3), MP 55A can also be used in systems with flourinated refrigerant.

MP 54 has fixed differential pressure setting. It also incorporates a thermal time relay with a fixed release time setting.

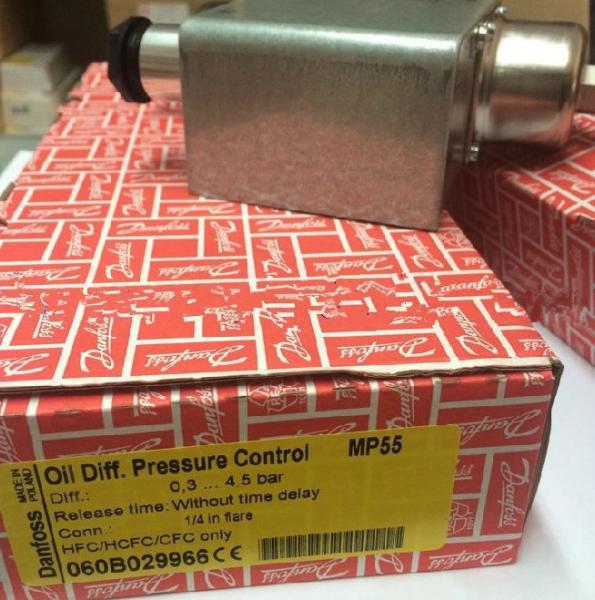

MP 55 and 55A have adjustable differential pressure and are available both with and without thermal time delay.


Specifications

MP 54 and MP 55 oil differential pressure controls are used as sefety switches to protect refrigeration compressors.

MP 54 differential pressure control, fixed differential, low differential pressure

Control voltage: 230 V or 115 V a. C. Or d. C.

Permissible voltage variation: +10 - -15%.

Max. Working pressure = 17 bar.

Max. Test pressure = 22 bar.

Operation range, LP side: -1 - 12 bar PE.

Temperature compensation: The time relay is temperature-compensated in the range -40 - +60° C.

Screwed cable entry: Pg 13.5.

Max. Bellows temperature: 100° C.

Enclosure: IP 20 to IEC 529.

Code Type
MP 　
060B029766 differential pressure control MP 54
060B016666
060B016766
060B016866
060B016966
060B013366 differential pressure control MP 55
060B013466
060B013666
060B017066
060B017166
060B017266
060B017366
060B017866
060B018866
060B029466
060B029566
060B029966
060B017466 differential pressure control MP 55A
060B017566
060B017666
060B017766
060B017966
060B018266
060B018366
060B018466
060B018566
060B029666
060B029866

Type
 Pressure Max pressure Agjust Relay 　 Code No.
(bar) p (bar) (s) Connection
　 (bar) 　 　 ¼in./6mm 1m Cappliary Cut
　 　 　 　 SAE ¼in.ODF 6mm
　 　 　 　 　 ODF 　
MP54 0.65 0.2 -1 ~ +12 0 B 060B0297 　 　
0.65 0.2 -1 ~ +12 45 A 060B0166 　 　
0.9 0.2 -1 ~ +12 60 A 060B0167 　 　
0.65 0.2 -1 ~ +12 90 A 060B0168 　 　
0.65 0.2 -1 ~ +12 120 A 060B0169 　 　
MP55 0.3 ~ 4.5 0.2 -1 ~ +12 45 A 060B0170 060B0133 　
0.3 ~ 4.5 0.2 -1 ~ +12 60 A 060B0171 060B0134 060B0188
0.3 ~ 4.5 0.2 -1 ~ +12 60 A 060B0178 　 　
0.3 ~ 4.5 0.2 -1 ~ +12 90 A 060B0172 　 　
0.3 ~ 4.5 0.2 -1 ~ +12 120 A 060B0173 060B0136 　
0.3 ~ 4.5 0.2 -1 → +12 0 B 060B0299 　 060B0295
0.65 ~ 4.5 0.4 -1 ~ +12 0 C 060B0294 　 　
