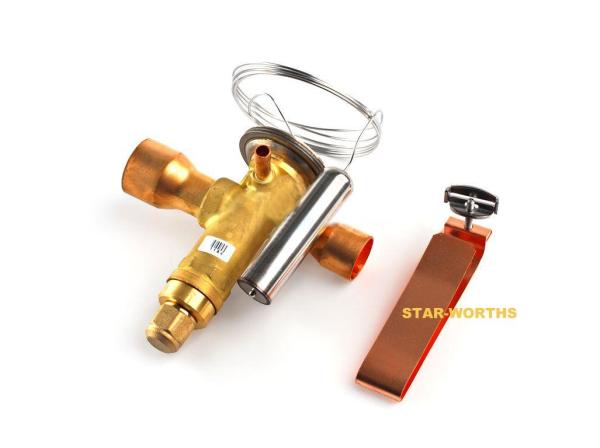

HVAC Thermostatic Expansion Valves TGE series TGEL R410/-25℃/ -40℃with or without MOP
HVAC Thermostatic Expansion Valves TGE series TGEL R410/-25℃/ -40℃with or without MOP
HVAC Thermostatic Expansion Valves TGE series TGEL R410/-25℃/ -40℃with or without MOP
HVAC Thermostatic Expansion Valves TGE series TGEL R410/-25℃/ -40℃with or without MOP
HVAC Thermostatic Expansion Valves TGE series TGEL R410/-25℃/ -40℃with or without MOP
HVAC Thermostatic Expansion Valves TGE series TGEL R410/-25℃/ -40℃with or without MOP
HVAC Thermostatic Expansion Valves TGE series TGEL R410/-25℃/ -40℃with or without MOP
HVAC Thermostatic Expansion Valves TGE series TGEL R410/-25℃/ -40℃with or without MOP
HVAC Thermostatic Expansion Valves TGE series TGEL R410/-25℃/ -40℃with or without MOP
HVAC Thermostatic Expansion Valves TGE series TGEL R410/-25℃/ -40℃with or without MOP
HVAC Thermostatic Expansion Valves TGE series TGEL R410/-25℃/ -40℃with or without MOP
HVAC Thermostatic Expansion Valves TGE series TGEL R410/-25℃/ -40℃with or without MOP
Specifications
Model Number :
TGEL Series
Certification :
UL,CSA
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
1000pcs per month
Delivery Time :
3-7 working days
Packaging Details :
Carton box
Refrigerant :
R410
Material :
Brass
Valve type :
Thermostatic Expansion Valves
flow direction :
two-way flow
maximum working pressure :
46bar
maximum test pressure :
51 bar
Application :
Air Conditioning System/ Heat pump/Chillers/ Freezer (Cabinet) /Traditional refrigeration systems
Description

HVAC Thermostatic Expansion Valves TGE series TGEL R410/-25℃/ -40℃with or without MOP

TGE-type thermal expansion valve is the use of a number of innovative technologies designed specifically for thermal expansion valve series for all commonly used refrigerants (including R410A),

mainly used in the following occasions:
- Air Conditioning System
- Heat pump
- Chillers
- Freezer (Cabinet)
- Traditional refrigeration systems
Fully sealed tightly designed to meet current and future environmental needs, cooling capacity from 3.5 to 46TR (12kW to 161kW) (R410A)


Product Features:


◆ Refrigerants: R22, R134a, R404A, R507, R407C and R410A
◆ not affected by the pressure head
◆ Provide MOP design (maximum operating pressure)
◆ Through-type design
◆ balanced flow port design (BP)
◆ low degree of reaction lag
Maximum open superheat degree (OSH) 4K
◆ maximum working pressure of 46bar
◆ long life in heat pump system
◆ new column-type temperature sensor package and fixed clip design
◆ Two-way flow design
◆ superheat adjustable
◆ Laser welding, stainless steel temperature sensing package and capillary
◆ provide a variety of installation connections (welding, trumpet, MIO, ORFS)

Technical Parameters:
Maximum operating temperature
- Temperature sensing element
N Series Charge: 100 ° C (410A)
K Series Charge: 150 ℃ (410A)
Body: 110 ℃
The maximum working pressure is 46 bar
The maximum test pressure is 51 bar
The TGE valve is designed with a two-way flow
Quick selection: the liquid temperature before the valve is 41 ℃

R410A:
Model No.
 Cooling Capacity(R410A)kW
-10℃/45℃ 0℃/45℃ 10℃/45℃
TGEL3.5 10.3 12.2 13.6
TGEL4.5 13.9 16.4 18.3
TGEL6.5 20.1 23.8 26.6
TGEL9 26.7 31.5 35
TGEL13 40.7 46.7 49.7
TGEL15 42.6 51.9 60
TGEL19 52.8 64.8 75.3
TGEL23 63.1 76.7 88.5
TGEL31 83.6 103 122
TGEL35 94.6 117 138
TGEL46 119 152 182

R410A:
Model No. Welding size (English) Code No.
Without MOP Function With MOP Function
TGEL3.5 3×5 067N3150 067N3000
4×5 067N3151 067N3001
TGEL4.5 4×7 067N3152 067N3002
TGEL6.5 4×5 067N3153 067N3003
4×7 067N3154 067N3004
5×7 067N3155 067N3005
TGEL9 5×7 067N3156 067N3006
TGEL13 5×7 067N3157 067N3007
5×9 067N3158 067N3008
TGEL15 5×7 067N3159 067N3009
5×9 067N3160 067N3010
TGEL19 5×9 067N3161 067N3011
7×9 067N3162 067N3012
TGEL23 7×9 067N3163 067N3013
7×11 067N3164 067N3014
TGEL31 7×11 067N3165 067N3015
9×11 067N3166 067N3016
TGEL35 7×11 067N3167 067N3017
9×11 067N3168 067N3018
TGEL46 9×11 067N3169 067N3019

Type
 Orifice cap.[kW] Connection ODF*ODF(inch) Code No.
R410A With MOP Point Without MOP Point
TGEL3.5 12,00kw 3/8*5/8*1/4 067N3000 067N3150
12,00kw 1/2*5/8*1/4 067N3001 067N3151
TGEL4.5 16,00kw 1/2*7/8*1/4 067N3002 067N3152
TGEL6.5 24,00kw 1/2*5/8*1/4 067N3003 067N3153
24,00kw 5/8*7/8*1/4 067N3005 067N3155
TGEL9 32,00kw 5/8*7/8*1/4 067N3006 067N3156
TGEL13 45,00kw 5/8*7/8*1/4 067N3007 067N3157
45,00kw 5/8*11/8*1/4 067N3008 067N3158
TGEL15 54,00kw 5/8*7/8*1/4 067N3009 067N3159
54,00kw 5/8*11/8*1/4 067N3010 067N3160
TGEL19 68,00kw 5/8*11/8*1/4 067N3011 067N3161
68,00kw 7/8*11/8*1/4 067N3012 067N3162
TGEL23 79,00kw 7/8*11/8*1/4 067N3013 067N3163
79,00kw 7/8*13/8*1/4 067N3014 067N3164
TGEL31 110,00kw 7/8*13/8*1/4 067N3015 067N3165
110,00kw 11/8*13/8*1/4 067N3016 067N3166
TGEL35 125,00kw 11/8*13/8*1/4 067N3018 067N3168
TGEL46 161,00kw 11/8*13/8*1/4 067N3019 067N3169
