capacity regulators are used to adapt compressor capacity to actual evaporator load by supplying a replacement capacity in the form of hot/cool gas.

They are installed in a bypass line between the high and low-pressure sides of the refrigeration system and are designed for direct gas injection into the suction line.

693723 imposes a lower limit on the compressor suction pressue by supplying the low pressure side with replacement capacity in the form of hot gas/cool gas from the high pressure side.

◆ KVC energy regulator is used to adjust the compressor cooling capacity, so that it is compatible with the evaporator load
◆ KVC energy regulator installed in the cooling system between the high / low side of the bypass pipeline
◆ KVC through the bypass line of high-pressure side of the hot air into the low side instead of part of the load, so that the compressor suction pressure is not less than the minimum limit

Product Features:

◆ to achieve precise and variable pressure regulation
◆ Application cooling capacity and wide operating range
◆ pulsation damping design
◆ Stainless steel to bellows
◆ "closed" brazing structure
◆ compact angle form of design, easy to install in any location
◆ provide a wide range of size of the bell mouth and outer diameter welding interface
◆ can be used for CFC, HCFC and HFC refrigerant

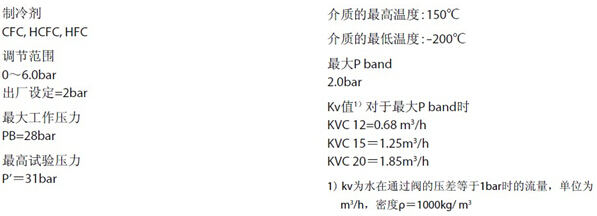

Regulating range 0.2 - 6.0 bar, factory setting 2 bar, max. working pressure 28 bar.

KVC type energy regulator is for regulating capacity of the compressor, to adapt to the evaporator load.

KVC type energy regulator is mounted on the refrigeration system of high / low pressure side of the road between the bypass pipe.

KVC helps to send the heat from high pressure side into the lower pressure side through the bypass line, to replace part of the load, so that the compressor suction pressure is not less than the minimum limit.

Flare:

034L0141
KVC 12 0,2 - 6,0 bar 12 mm 1/2 in 12 mm 1/2 in None 0,68

034L0142
KVC 15 0,2 - 6,0 bar 16 mm 5/8 in 16 mm 5/8 in None 1,25

welding/Solder:

034L0143
KVC 12 0,2 - 6,0 bar - 1/2 in - 1/2 in None 0,68 2,00 bar

034L0144
KVC 22 0,2 - 6,0 bar 22 mm 7/8 in 22 mm 7/8 in None 1,85 2,00 bar

034L0146
KVC 12 0,2 - 6,0 bar 12 mm - 12 mm - none 0,68 2,00 bar

034L0147
KVC 15 0,2 - 6,0 bar 16 mm 5/8 in 16 mm 5/8 in None 1,25 2,00 bar
