Specifications
Brand Name :
JISHUI
Model Number :
HYRO-40FT
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1
Price :
USD 12000-15000
Supply Ability :
300
Delivery Time :
4-6 weeks
Packaging Details :
plywood packing
Description

Containerized bore hole large scale salty water seawater desalination machine sea well water desalination machine for irrigation

Salted water is not always the same. Depending on whether they come from warm or cold oceans, closed or open seas, their salt content will vary. This is a short comparison between samples:

Brackish water:0,5 to 10 g/l, (TDS range: 500ppm to 10000ppm)
Northern Sea close to estuaries :21 g/l (TDS range: 10000ppm to 21000ppm)
Atlantic Ocean :35 g/l (TDS 35000ppm)
Mediterranean Sea :38 g/l (TDS 38000ppm)
Arabian Sea :45 g/l (TDS45000ppm)
Red sea: 41g/L (TDS 41000ppm)
Dead Sea :300 g/l. (TDS 300,000ppm)


Different Water TDS(Total Dissolved Solids) compare and usage

Raw water/Application Bottled water,
Bag water		 City tap water Brackish water Seawater
TDS Range 2-10ppm 100-1000ppm 2000-20000ppm 20000-40000ppm
Direct Drinking Yes Yes/No No No
Cooking, human
consumption, washing		 Yes Yes No No
Irrigation, Industry,
Animal Drinking		 Yes Yes No No

Containerized Bore Hole Salt Water Seawater Desalination Machine Sea Well Water Desalination Machine for Irrigation

Containerized Bore Hole Salt Water Seawater Desalination Machine Sea Well Water Desalination Machine for IrrigationContainerized Bore Hole Salt Water Seawater Desalination Machine Sea Well Water Desalination Machine for Irrigation


SWRO Process steps introduction

Pre-treatment Feed water pump, Stainless steel 316L Provide pressure for filters;
Quartz sand filter Remove suspended particle and large impurity. In this system;
Active Carbon Filter (option) Remove the color, free chloride, organic matter, harmful matter, ect;
Anti-scalant system To add chemicals to remove some impurities and prolong thememebranes using/washing time(prevent membrane blocking)
Manual/Auto control valves Flushing sand/carbon filter after some time
5micron filter Remove larger than 5 micro colloids in the water. In this system
1micron filter Remove larger than 1 micro colloids in the water. In this system
Seawater RO Main Part High pressure pump, Stainless steel 316L Provide the high pressure to RO membrane;
Ro membranes More than 98% desalination rate, can remove ions except H2O.
CIP system To washing the membranes when it is blocked after using for long time
Electronic control panel PC controller or PLC and HMI controller


SWRO Process steps introduction

Containerized Bore Hole Salt Water Seawater Desalination Machine Sea Well Water Desalination Machine for Irrigation

​

Below is 20GP container capacity paramete
Model Membrane model*qty Capacity m3/D Weight/kg Operating Pressure/Mpa Power
HYSW-20GP-20 4040*8 20 2800 4.0-6.5 220V-440V/
50Hz-60Hz
HYSW-20GP-26 4040*10 26 2860 4.0-6.5
HYSW-20GP-30 4040*12 30 2920 4.0-6.5
HYSW-20GP-40 4040*16 40 3030 4.0-6.5

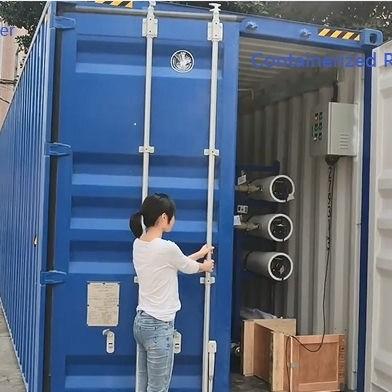

20GP Container-frame:
20 ft according to ISO- standard (5.85x2.23x2.15 meter).
·suit for long-distance transport
·easy installation
·save space for customers
More detail need customized according user requirement.
Containerized Bore Hole Salt Water Seawater Desalination Machine Sea Well Water Desalination Machine for IrrigationContainerized Bore Hole Salt Water Seawater Desalination Machine Sea Well Water Desalination Machine for IrrigationContainerized Bore Hole Salt Water Seawater Desalination Machine Sea Well Water Desalination Machine for IrrigationContainerized Bore Hole Salt Water Seawater Desalination Machine Sea Well Water Desalination Machine for Irrigation

​​

Below is 40HGP container capacity paramete
Model Membrane model*qty Capacity m3/D Weight/kg Operating Pressure/Mpa Power
HYSW-40HGP-60 8040×6 60 4900 4.0-6.5 380V-440V
/50Hz-60Hz
HYSW-40HGP-80 8040×8 80 5050 4.0-6.5
HYSW-40HGP-100 8040×10 100 5150 4.0-6.5
HYSW-40HGP-120 8040×12 120 5230 4.0-6.5
HYSW-40HGP-150 8040×16 150 5530 4.0-6.5
Container-frame:
40 ft according to ISO- standard (12,4 x 2,4 x 2,8 meter).
·suit for long-distance transport
·easy installation
·save space for customers
More detail need customized according user requirement.

Guying Guides

To find the most appropriate desalination for you, please advise following information.

1. Product/Clean/output water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)

2· Product water purpose(industry process/driking water or others)

3 . Power (220/380V/415V/460V, 50 or 60 Hz) 3 phase.

4. If source water is tap water no need analysis report(We will make design as per TDS less than 1500ppm)

5. Source water from borehole/salt/brackish/lake water It is necessary to make water analysis report( TDS,Iron, Manganese, TSS, SDI or related parameter)

6. Any other detail requirement.please tell me as more as you know.

Contact us WAP+8613922972795, or+8613532836525
