Specifications
Model NO. :
HY-1000L to 50m3/hr
Capacity :
1000lph-50m3/Hr
Recovery :
35%-70% Based on Difference Water Qualty
Flow Rea :
Can Customized
Product Water Tdsr :
Less Than 700ppm.
Source Water :
Borehole/Sea Water 35000ppm or Other
Transport Package :
Seaworth
Specification :
customzied
Trademark :
JISHUI
Origin :
Guangdong, China
HS Code :
842121
Supply Ability :
5000
Shipping Cost :
To be negotiated| Freight Cost Calculator
Certification :
ISO9001, CE
Salt Rejection Rate :
99.5%
Application :
Drinking Agriculture or Process Water
Samples :
US$ 3000/Piece 1 Piece(Min.Order) |
Description

Product Description

Underground Borehole Well Salt water Seawater Desalination System Water Water Treatment Equipment


Product Description

Different source water have diffent TDS for compare and usage.

Raw water/
Application		Bottled water,
Bag water		City tap waterBrackish waterSeawater
TDS Range2-10ppm100-1000ppm2000-20000ppm20000-40000ppm
Direct DrinkingYesYes/NoNoNo
Cooking, human
consumption, washing		YesYesNoNo
Irrigation, Industry,
Animal Drinking		YesYesNoNo

Specified configuration(Each part is optional based on feed water quality)
ItemMaterial/ModelFunction
Raw water pumpLingxiao/CNP, SUS-316Provide pressure for raw water
Quartz sand filterFRPGet rid of turbidity, suspended matter, colloid, etc.
Antis-calant dosing systemSEKO from ItalyRemove Calcium ion(Ca2+) and magnesium ion(Mg2+) of removing hardness from water.
Security filterPVC 1mircon/5mirconBlock impurities greater than 5micron(1micron)
High pressure pumpCNP/ SS316 Anti-corrosionProvide pressure for water into membrane
MembraneDomestic/Vontron / DuPont FilmTecRemove heavy mental ion, bacterial. Desalination rate is more than 97%



Replacement time of consumable parts
There are several kinds of consumables you need to replace regularly, please see below detail.
a. Quartz sand: replaced about every 15-18 months. 50kg/bag
b. Activated carbon: replaced about every 15-18 months. 25kg/bag
c. Resin: replaced about every 15-18 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month
e. Ro membrane: replaced about every 2 year

Features

The process of RO water treatment system (some process is option as per feed water quality)

Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→sodium-ion exchanger
(water softener)→ security filter→ high pressure pump →Reverse osmosis→ Ozone sterilizer (UV sterilizer).

RO Process steps introduction

Pre-treatmentFeed water pump, Stainless steel Provide pressure for filters;
Quartz sand filterRemove suspended particle and large impurity. In this system;
Active Carbon Filter (option)Remove the color, free chloride, organic matter, harmful matter, ect;
Anti-scalant systemTo add chemicals to remove some impurities and prolong thememebranes using/washing time(prevent membrane blocking)
Manual/Auto control valvesFlushing sand/carbon filter after some time
5micron filterRemove larger than 5 micro colloids in the water. In this system
1micron filterRemove larger than 1 micro colloids in the water. In this system
water RO Main PartHigh pressure pump, Stainless steel 316LProvide the high pressure to RO membrane;
Ro membranesMore than 98% desalination rate, can remove ions except H2O.
CIP systemTo washing the membranes when it is blocked after using for long time
Electronic control panelPC controller or PLC controller


RO process flow chart: (Carbon filter softener based on feed water quality opiton)

Underground Borehole Well Salt Water Seawater Desalination System Water Water Treatment Equipment

Product Parameters
ModelProductivityMotor powerRecovery rateOutlet water conductivity(us/cm)Raw water conductivity
HYRO-500L0.5T/H1.5kw50≤10≤300
HYRO-100L1T/H2.2kw50≤10≤300
HYRO-2000L2T/H3kw50-60≤10≤300
HYRO-3000L3T/H4.5kw55-65≤10≤300
HYRO-4000L4T/H6.5kw55-65≤10≤300
HYRO-5000L5T/H8kw60-70≤10≤300
HYRO-1000L10T/H15kw60-70≤10≤300
HYRO-2000L20T/H22kw65-75≤10≤300
HYRO-3000L30T/H26kw70-75≤10≤300
HYRO-50000L50T/H55kw70-75≤10≤300

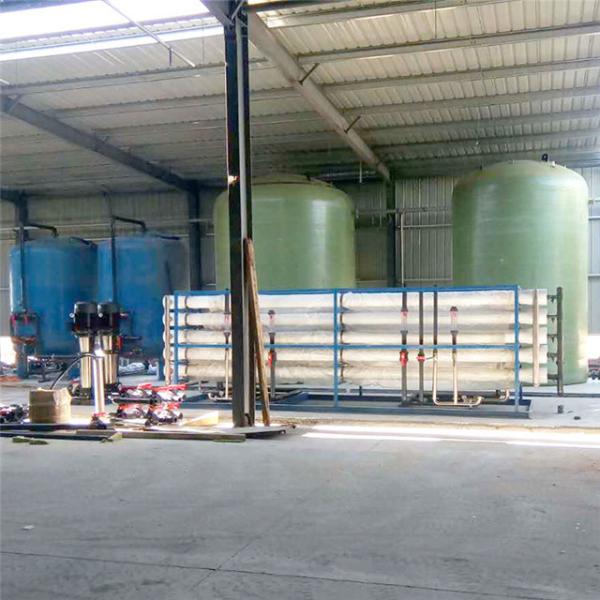

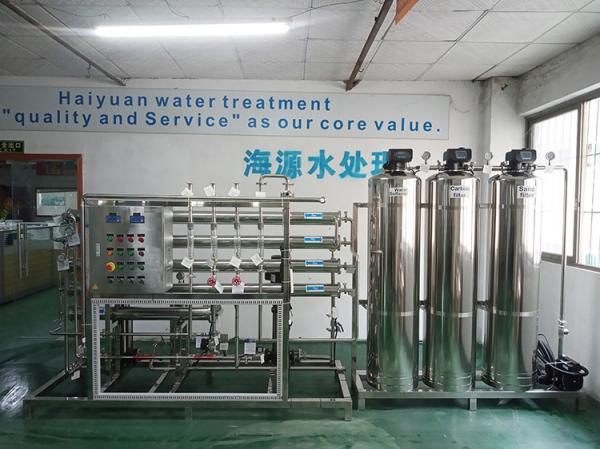

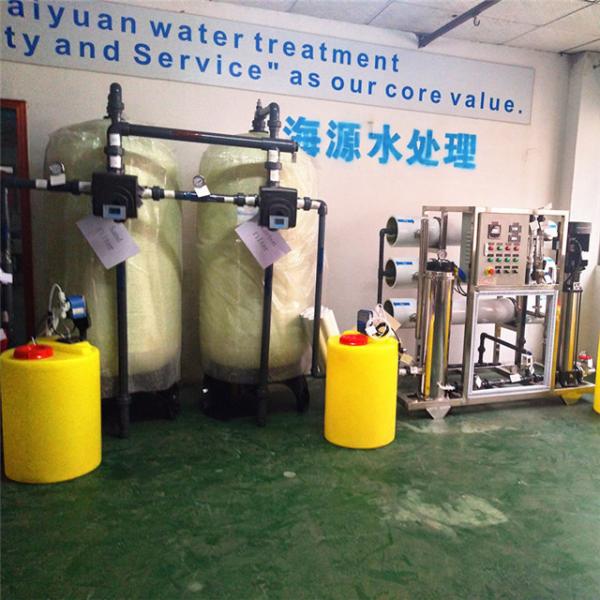

Detailed Photos

Underground Borehole Well Salt Water Seawater Desalination System Water Water Treatment Equipment
Underground Borehole Well Salt Water Seawater Desalination System Water Water Treatment Equipment

Underground Borehole Well Salt Water Seawater Desalination System Water Water Treatment Equipment Underground Borehole Well Salt Water Seawater Desalination System Water Water Treatment Equipment Underground Borehole Well Salt Water Seawater Desalination System Water Water Treatment Equipment

Underground Borehole Well Salt Water Seawater Desalination System Water Water Treatment Equipment

Company Profile

Underground Borehole Well Salt Water Seawater Desalination System Water Water Treatment Equipment

Underground Borehole Well Salt Water Seawater Desalination System Water Water Treatment Equipment Underground Borehole Well Salt Water Seawater Desalination System Water Water Treatment Equipment

exbition

Underground Borehole Well Salt Water Seawater Desalination System Water Water Treatment Equipment
Case

Underground Borehole Well Salt Water Seawater Desalination System Water Water Treatment Equipment
Buying Guides

In order to make the quote best fit your demand, kindly confirm as below:
1- Untreated water: from well water(send water test report),seawater or other?
2- Treated water purpose: Meet city tap water standard for humandaily use(TDS less than 500ppm) or other purposes?
3- Outpu capacity: How many liters/gallons per hour do you need?
4- Will the power supply 380v/50hz/3ph or others there?
I would like to introduce our company HaiYuan Water Treatment CO.,Limited.
Our advantages:
--We can give you what you the ideal price and quality.
- We are dedicated in water treatment since 2006
- Export experience over 100 countries, familiar with vary water quality.
- Customized water treatment solution for varied industries
- ISO9001 quality certification and CE certification & OEM service available.

Contact Us now get more info.
