Large Scale Water Filtration System For Iron And Manganese 2000L/Hour
Large Scale Water Filtration System For Iron And Manganese 2000L/Hour
Large Scale Water Filtration System For Iron And Manganese 2000L/Hour
Large Scale Water Filtration System For Iron And Manganese 2000L/Hour
Large Scale Water Filtration System For Iron And Manganese 2000L/Hour
Large Scale Water Filtration System For Iron And Manganese 2000L/Hour
Large Scale Water Filtration System For Iron And Manganese 2000L/Hour
Large Scale Water Filtration System For Iron And Manganese 2000L/Hour
Large Scale Water Filtration System For Iron And Manganese 2000L/Hour
Large Scale Water Filtration System For Iron And Manganese 2000L/Hour
Large Scale Water Filtration System For Iron And Manganese 2000L/Hour
Large Scale Water Filtration System For Iron And Manganese 2000L/Hour
Specifications
Place of Origin :
Guangdong, China
Brand Name :
JISHUI
Packaging Details :
standard plywood case Large Scale Well/Borehole Water Iron Manganese Remove Plant
Supply Ability :
150 Set/Sets per Month Iron Manganese Remove Plant
Price :
$3,000.00 - $50,000.00/sets
Condition :
New
Applicable Industries :
Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Other
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2019
Warranty of core components :
2 years
Core Components :
Pressure vessel, Pump, PLC
Material :
plywood case
Weight :
>1000KG
Size :
made by order, Well/Borehole Water Iron Manganese Remove Plant Customized
Power :
made by order
Warranty :
2 years
Productivity :
2000L/Hour
Application field :
Well water, Borehole water
Capacity :
Well/Borehole Water Iron Manganese Remove Plant Customized
Process :
Pre-treatment
Control method :
Full control or Semi control
Rejection efficiency :
99.7%
Recovery efficiency :
99%
Operation temperature :
1~45 degree
Operation pressure :
3bar~5 bar
After Warranty Service :
Video technical support, Online support, Field maintenance and repair service
Local Service Location :
None
After-sales Service Provided :
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Port :
Shenzhen
Description

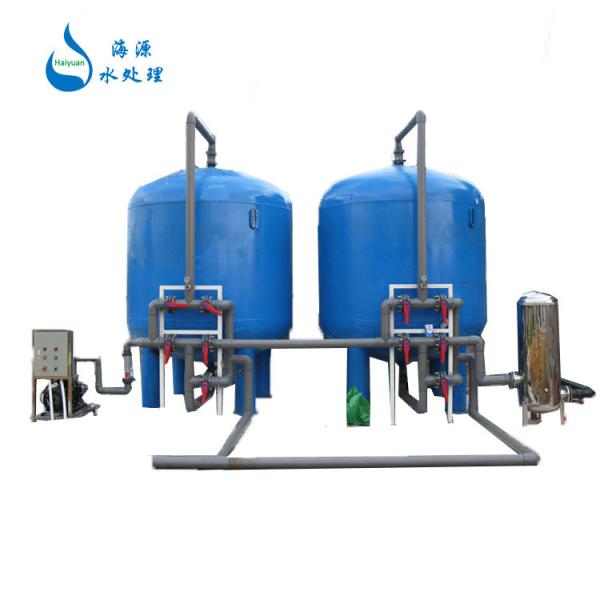

Large Scale Well/Borehole Water Iron Manganese Remove Plant

1.Process Flow:

Pumping underground water to→(air blower)Aeration+NaCIO disinfection tank→sedimentation tank→Feed water pump →Iron remove filter → active carbon filter → water softener(Optional)→ bag filter→UF system→ purified water tank.

NOS.

Items

Information

1. Pre-treatment

Source water tank

Store source water, let it have a sedimentation before entering the plant.

(air blower)Aeration+NaCIO disinfection tank

aeration oxidation. Let the Fe2 become Fe3. And add the

flocculant. Or add the NaCIO disinfection.

Booster pump

Provide power for pretreatment part.

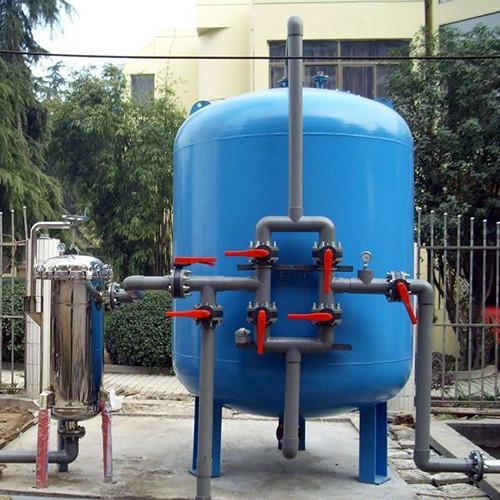

quartz sand +manganese sand

quartz sand,manganese sand, used to remove iron,colloid,silt etc, to make effluent water cleaning.

Active carbon filter

Remove color, free chloride, organic matter, harmful matter, etc.

Dosing system

Detail dosing system will be decided by: source quality & treated water quality requirements.

Normal including: inhibitor dosing, PH dosing, reducing dosing, germicide dosing.

2. UF system

PP filter

Prevent large particles, iron, dust, SS matter, impurity into the RO membrane.

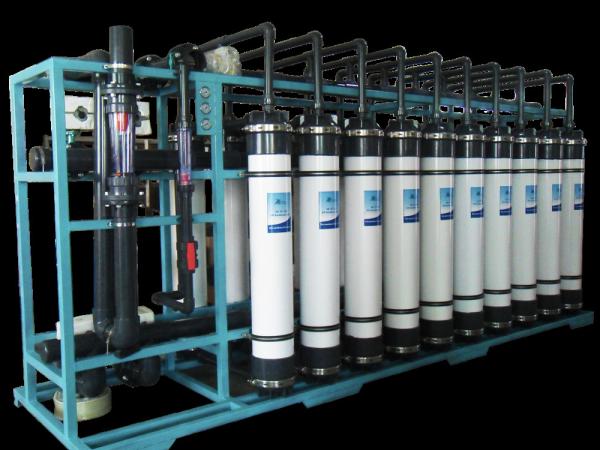

UF system

Remove high molecular-weight substance, micro organic, colloid

UF water tank

Store UF water and get ready for next treatment.

3. Control system

Control panel

Assembled by factory. Auto type.

PLC mode

Adopt Mitsubishi from Japan, good quality.

Touch screen

Make use of WeiNview from Taiwang. Convenience for user to operate.

Electricity components

Schneider/Omron from German.

Plant skid

Anti corrosion paited.
