Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine
Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine
Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine
Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine
Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine
Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine
Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine
Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine
Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine
Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine
Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine
Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine
Specifications
Place of Origin :
Guangdong
Brand Name :
Ronfin
Packaging Details :
pltwood
Price :
$1,884.00/Sets 1-4 Sets
Application :
Laser Marking, Laser Marking
Working Accuracy :
0.001mm
Graphic Format Supported :
PLT, DXF, BMP, Dwg
Laser Type :
Fiber Laser, Fiber laser
Condition :
New
CNC or Not :
Yes
Cooling Mode :
Air Cooling
Control Software :
EZ CAD
Laser Source Brand :
JPT, Raycus, IPG
Control System Brand :
EZCAD
Marking Head Brand :
video/1 year warranty, Fiber laser marking for metal, Co2 laser marking for nometal, sample available
Weight (KG) :
30 KG
Key Selling Points :
Multifunctional
Warranty :
2 years
Applicable Industries :
Printing Shops, Advertising Company, deep engraving mold coin jewelry
Marking Area :
110mm*110mm, 110*110mm
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided, Provided
Warranty of core components :
2 years
Core Components :
source, Laser Device, Galvonameter, Main board
Mode of Operation :
Pulsed
Configuration :
stand-alone, stand-alone
Feature :
MAX Laser source
Laser Marking :
30kg
After-sales Service Provided :
Engineers available to service machinery overseas
Working Accuracy: :
0.01mm
Laser Source :
MAX
Description

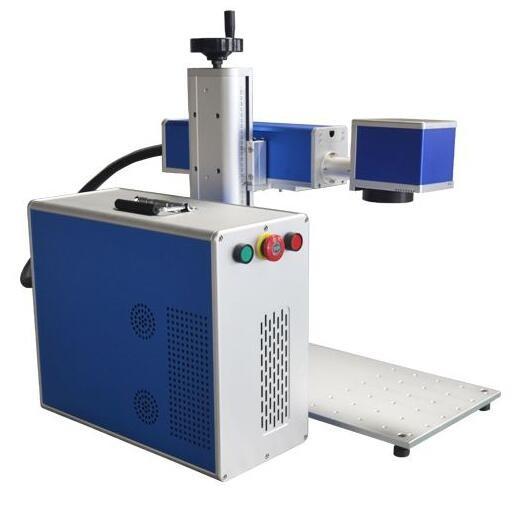

Galvo Hand Small Handheld Desktop Portable Mini MAX 20w 30w 50w 100W Fiber CO2 Laser Marking Machine

Product Description

Portable Type Fiber Co2 Laser Marking Machine with JPT/MAX/RAYCUS Source

1. Model: Fiber Laser Marking Machine
2. Applicable materials:
Applicable various metal, such as silver, alloy, aluminum, stainless steel, copper etc, and some non-metal materials, such as
PVC,PC, black acrylic.
3. Applicable industry:
They are widely applying for electronic, jewelry, automobiles, communication products, plastic buttons, IC etc.

Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking MachineMini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine

Fiber CO2 Laser Marking Machine Model Introduction

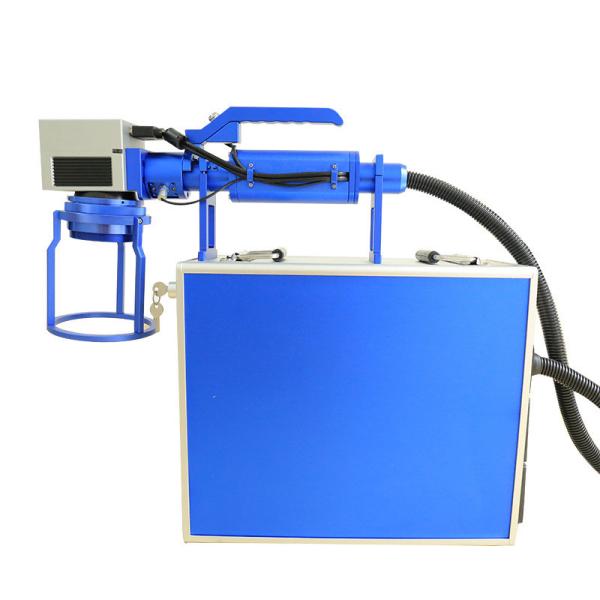

Small 20w Fiber Laser Marking Machine for Metal is especially outstanding in the aspect of portability. It is endowed with the features of small volume and easily making on the surface of big volume and heavy objects.

Small 20w Fiber Laser Marking Machine for Metal adopts advanced digital high speed scan galvanometer and module design, that can separate laser generator and lifter.

This kind of machines can satisfy marking applications,Such as food and beverage, pharmaceutical, tobacco, leather, packaging, building materials, lighting, accessories, cosmetics, mobile telephone shells, kitchen & bathroom hardwares, shells of watches, medical apparatus and instruments, tools’ fittings, electronics and other industries, auto spare parts and other industries.

Small 20w Fiber Laser Marking Machine for Metal has the advantages of low materials consumption, non-toxic, and pollution-free.

Technical Parameter

Model

F10

F20

F30

F50

Laser Power

10W

20W

30W

50W

Laser Type

Fiber Lasers

Wavelength

1064nm

F = Fiber, Customized Specification is Available

Processing Area

70*70MM,110*110MM,175*175MM, 200*200MM, 300*300MM (Optional)

Frequency Range

20-200Khz

Beam Quality

<1.6M2

Laser Source Lifetime

≤100000h

Marking Speed

≤8000MM/S

Marking Depth

≤2MM

Repetition Precision

±0.01MM

Min. Line Width

0.03MM

Min. Character

0.2MM

Cooling Mode

Air Cooling

Lifting Height

100~500MM (700MM)

Graphic Formats Supported

PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG

Power Source

AC 110/220V±10%, 50/60Hz

Gross Power

< 500W

Work Environment

Temp: 10~40 ℃,Humidity : 5 ~85 %, Clean, Less Dust

Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking MachineMini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine

Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine

Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine

Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine

Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine

Mini Desktop 20W 30W 50W 100W MAX CO2 Laser Marking Machine

FAQ

Q1: Do you provide after-sales service?

A1: The machine has a two-year warranty and provides door-to-door service.

Q2: How long is the delivery time?

A2: Ordinary machines will be delivered in 5-8 days, and customized machines will take 12-14 days.

Q3: Do you support customization?

A3: Yes, we will make customized service for you according to the different cutting materials and thickness.

Q4: I don't know how to use it after receiving it, or I have problems in the process of using it. What should I do?

A4: We have a detailed user manual and video materials, you can learn from that.
