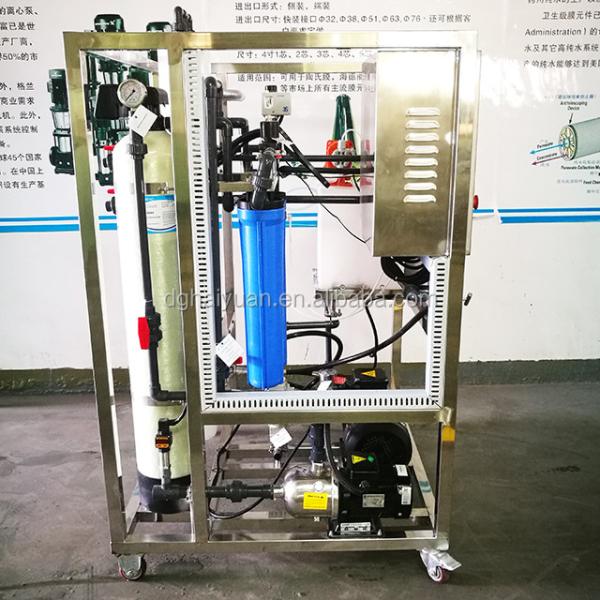

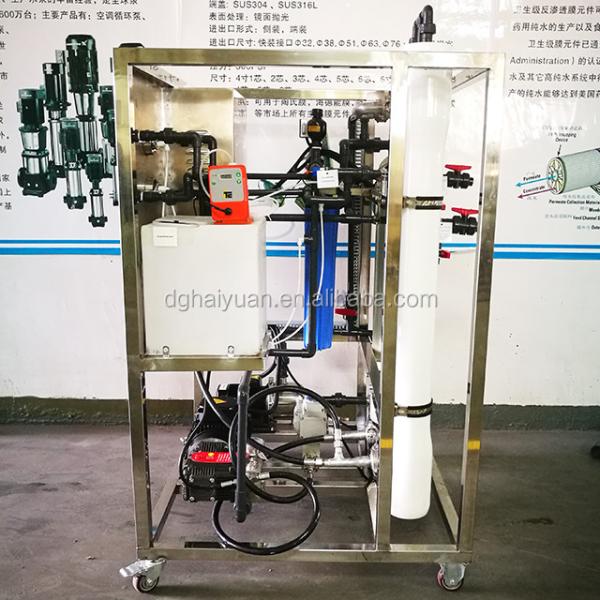

Reverse osmosis sea water ro seawater,seawater desalination machine for boat yacht
Reverse osmosis sea water ro seawater,seawater desalination machine for boat yacht
Reverse osmosis sea water ro seawater,seawater desalination machine for boat yacht
Reverse osmosis sea water ro seawater,seawater desalination machine for boat yacht
Reverse osmosis sea water ro seawater,seawater desalination machine for boat yacht
Reverse osmosis sea water ro seawater,seawater desalination machine for boat yacht
Reverse osmosis sea water ro seawater,seawater desalination machine for boat yacht
Reverse osmosis sea water ro seawater,seawater desalination machine for boat yacht
Reverse osmosis sea water ro seawater,seawater desalination machine for boat yacht
Reverse osmosis sea water ro seawater,seawater desalination machine for boat yacht
Reverse osmosis sea water ro seawater,seawater desalination machine for boat yacht
Reverse osmosis sea water ro seawater,seawater desalination machine for boat yacht
Reverse osmosis sea water ro seawater,seawater desalination machine for boat yacht
Reverse osmosis sea water ro seawater,seawater desalination machine for boat yacht
Specifications
Condition :
New
Applicable Industries :
Hotels, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
After Warranty Service :
Video technical support, Online support, Spare parts
Local Service Location :
None
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2019
Warranty of core components :
2 years
Core Components :
Pressure vessel, Pump, Motor, PLC
Place of Origin :
Guangdong, China
Brand Name :
JISHUI
Material :
PE winding film and plywood case
Weight :
200kg
Size :
900*860*1400mm
Power :
3kw
After-sales Service Provided :
Video technical support, Field installation, commissioning and training, Online support
Warranty :
2 years
Productivity :
5000L/Hour
Product name :
Seawater desalination machine
Application :
Water Purification
Function :
Water Purification Plant
Processing :
Pre-treatment+RO Desaliantion
RO membrane :
DOW Membrane USA Original
Operation :
24 Hours Automatic Running
Feedwater TDS :
<40000ppm
Freshwater TDS :
<600ppm
Operating temperature :
10-45
Packaging Details :
Seawater Desalination machine by plywood case
Port :
Shenzhen
Supply Ability :
20 Piece/Pieces per Month
Price :
USD4000-USD6000
Description

Reverse osmosis sea water ro seawater,seawater desalination machine for boat yacht

Inlet water index request:

PH: -

Color: Colorless

Turbidity:5NTU

Conductivity:-

TDS (assumed):<35000mg/l (ppm)

Total Hardness:<500mg/l (ppm)

Process Flow :

Source tank →Feed water pump→ muti-media filter→ inhibitor dosing →Cartridge/Security/Micro filter→ high-pressure pump→ Reverse Osmosis system→ RO purified tank →ultravioletsterilizer(for selection)→Ozone generator(for selection)

Product parameters

Seawater desalination-Single RO Water treatment

model

HYSWRO0.5-1000m3/D

Water production

0.5-1000m3/D

Operating temperature

5-45℃

Work pressure

Less than 1200 psi

Material

FRP+PVC

Desalination rate

99.7%

control method

Automatic, PLC+HMI (optional)

Voltage frequency

110V/220V/240V/380V/400V/440V 50HZ 60HZ

Use environment

Room temperature, level ground, drain

package

plywood case

transport

sea transportation

Whether to customize products

yes

Raw water

Seawater/brackish water/surface water

TDS<35000mg/l (ppm)

output water quality use

Hydroponics agriculture/industrial/Commercial/Drinking

TDS<500mg/l (ppm)

seawater desalination machine Specification model

Reverse osmosis sea water ro seawater,seawater desalination machine for boat yacht

Please Attention

HY FACTORY OFFER YOU :

1: FACTORY DIRECT PRICE.

2: NICE QUALITY.

3: ONLINE PAYMENT.

4: SUPPORT REFUND AFTER YOUR INSTALLED THE PLANT IF THERE ARE ANY PROBLME.

5: AFTER SALES SERVICES 24/7

6. Letters patent

7. ENGINNER CAN BE OVERSEA INSTALLNATION

We have 2 factories +300 workers+ Qualified engineer+ Engineer Overseas service

seawater desalination machine Process function description

1. use automatic control and semi-control .Pretreatment parts can adopt fiber glass or stainless steel material.

2.has protected when no power, poor power, larger electrical current, leakage, short circuit.

3. is compact, easy installation.

4.equipped with manual and auto control based on user needed.

5. produce as per ISO and SGS standard and main parts accessories have obtained CE certification.

6. All the plants will be commissioning well. Make sure don't have any problem when arrived site.

7.What we provide not only the good products, but also our whole team, the quality, experience, and service.

Please see more similar products, we can customzied capacity for you.

(1)Automatic inlet shut-off valve ,Perform cleaning at regular intervals without human intervention

(2).two flow meters,Digital display flow Online monitoring conductivity meter to determine whether the water quality meets the requirements.
(3).Programmable PLC controller,One-button operation is simple and convenient, and the actions of each component such as:water pump, valve, water tank liquid level, dynamic monitoring screen; humanized alarm recording and prompt function, etc.

(4).RO membranes manual wash with medicine

(5).Pure water high water level auto stop,low water auto start

(6).Multi-phases pump protected without water

(7).Protected when no power,poor power,larger electrical current,short circuit,Creepage of electricity.

(8).Combined system,easily install and maintain

(9).Environmental Friendly,The movement and service cost is low

(10).which can realize the area is small

(11).The water quality has the best stability

(12).Support customization, welcome to email to discuss order

Quality Assurance

(1).Pre-shipment testing and commissioning and machine inspection

(2).Non-destructive testing of welds according to specifications before delivery

(3).Warranty:2year
