RO system for sea water,SWRO Sea water desalination water system

Main technical parameters:

PH: -

Color: Colorless

Turbidity:5NTU

Water temperature range: 5.0-30.0℃

TDS (assumed):<35000mg/l (ppm)

Output water quality:<500mg/l (ppm)

Process Flow :

Source tank →Feed water pump→ muti-media filter→ inhibitor dosing →Cartridge/Security/Micro filter

→high-pressure pump→ Reverse Osmosis system→ RO purified tank →ultraviolet sterilizer(for selection)

Product parameters

Please see more similar products, there is always one that belongs to you. If there is no ,you can contact us now, you will get more information of your need product.

Standard Features

- Automatic inlet shut-off valve ,Perform cleaning at regular intervals without human intervention

two flow meters,Digital display flow.

- Online monitoring conductivity meter to determine whether the water quality meets the requirements.
- Programmable PLC controller,One-button operation is simple and convenient, and the actions of each.

- Component such as:water pump, valve, water tank liquid level, dynamic monitoring screen; humanized.

- Alarm recording and prompt function, etc.

- RO membranes manual wash with medicine.

- Pure water high water level auto stop,low water auto start.

- Multi-phases pump protected without water.

- Protected when no power,poor power,larger electrical current,short circuit,Creepage of electricity.

- Combined system,easily install and maintain.

- Environmental Friendly,The movement and service cost is low which can realize the area is small.

- The water quality has the best stability.

- Support customization, welcome to email to discuss order .

Quality Assurance

(1).Pre-shipment testing and commissioning and machine inspection

(2).Non-destructive testing of welds according to specifications before delivery

(3).Warranty:2year

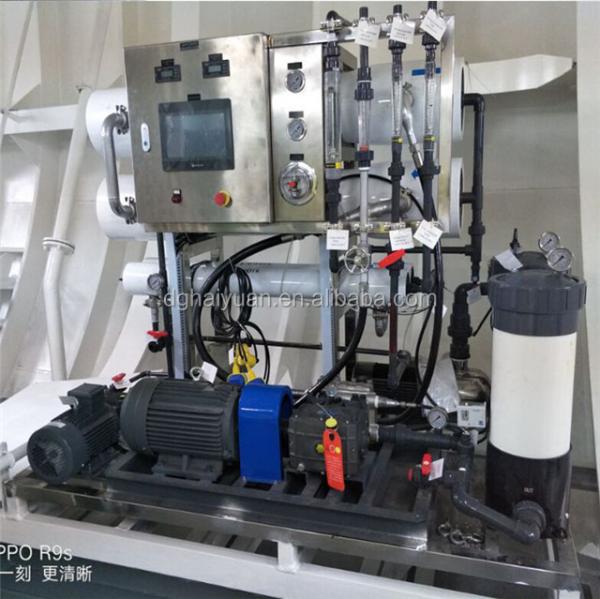

Haiyuan factory real photos
