6*19S IWR Ss 304 Wire Rope High Tension Traction Rope For Facility Pull
6*19S IWR Ss 304 Wire Rope High Tension Traction Rope For Facility Pull
6*19S IWR Ss 304 Wire Rope High Tension Traction Rope For Facility Pull
6*19S IWR Ss 304 Wire Rope High Tension Traction Rope For Facility Pull
Specifications
Brand Name :
Suyang
Model Number :
6*19S IWR
Certification :
QUALITY MANAGEMENT SYSTEM CERTIFICATE
Place of Origin :
Jiangsu
MOQ :
1000 Meters
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
1000000 Meters
Delivery Time :
7-14 Days
Packaging Details :
Wooden roll
HS Code :
731210000
Length :
Length
Material :
300series
Description

6*19S IWR 304 High Tension Stainless Steel Wire Rope For Facility Pull

Descriptions

1,Compact Design: Thin yet strong, saving space in installations.

2,Ease of Installation: Simple to install and secure.

3,Customizable Lengths: Can be cut to specific lengths as needed.

4,Low Stretch: Minimal elongation under load, ensuring precision.

5,Balanced Construction: Even distribution of load across strands

6,Twist Resistance: Maintains alignment under tension.

7,Non-Sparking: Safe for use in explosive or flammable environments.

8,Fire Resistance: Does not burn or melt easily.

Technical Specification

Structure Nominal Diameter/MM Minimum Breaking Force/KN Reference Weight (KG/1000M)
6×19S+IWR
6×19W+IWR
6×26WS+IWR
6×31WS+IWR		 AISI 304 06Cr19Ni10
6 23.9 148
8 42.6 262
9 54 332
10 63 410
12 85.6 590
13 106 693
14 123 804
16 161 1050
18 192 1328
20 237 1640
22 304 1984
24 342 2362
26 401 2772
28 466 3214
30 503 3690
32 572 4198
8×19S+IWR
8×19W+IWR
8×26WS+IWR
8×31WS+IWR		 8 42.6 262
9 54 332
10 61.2 410
12 83.3 590
13 103 693
14 120 804
16 156 1050
18 187 1328
20 231 1640
22 296 1984
24 332 2362
26 390 2772
28 453 3214
30 489 3690
32 556 4198

Concrete Attribute

Product name 6*19S IWR 304 High Tension Stainless Steel Wire Rope For Facility Pull
Diameter 6 mm
Color silver
Material stainless steel

Functions and Feature

1,The steel wire rope is a helical wire bundle made of steel wires with mechanical properties and geometric dimensions that meet the requirements.

2,A steel wire rope is a rope that is twisted into strands from multiple layers of steel wire, and then a certain number of strands are twisted into a spiral with the core as the center.

3,In material handling machinery, it is used for lifting, traction, tensioning and carrying.

4,The steel wire rope has high strength, light weight, stable work, not easy to be broken suddenly, and reliable work.

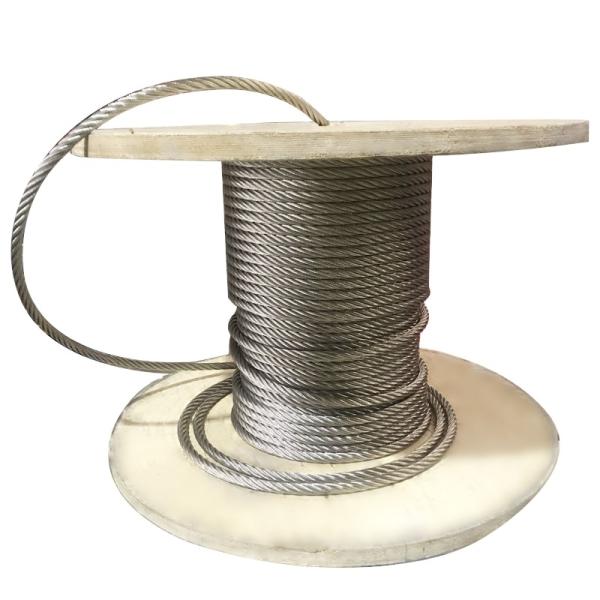

Details Photos 6*19S IWR Ss 304 Wire Rope High Tension Traction Rope For Facility Pull

6*19S IWR Ss 304 Wire Rope High Tension Traction Rope For Facility Pull

FAQ

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener, we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT, 30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI, pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
