7*7(6*7+IWS) 1.0mm 3 16 Stainless Wire Rope Silver For Dragline
7*7(6*7+IWS) 1.0mm 3 16 Stainless Wire Rope Silver For Dragline
7*7(6*7+IWS) 1.0mm 3 16 Stainless Wire Rope Silver For Dragline
7*7(6*7+IWS) 1.0mm 3 16 Stainless Wire Rope Silver For Dragline
Specifications
Brand Name :
Suyang
Model Number :
7*7(6*7+IWS
Certification :
IATF16949
Place of Origin :
Jiangsu,China
MOQ :
1000 Meters
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
1000000 Meters
Delivery Time :
7-14 Days
Packaging Details :
Wooden Roll
Processing Service :
Welding, Cutting
Nominal diameter :
1.0mm
Product name :
7*7(6*7+IWS) 1.0mm Stainless Steel Wire Rope Silver For Dragline
Advantage :
20 Years Manufacure
Description

7*7(6*7+IWS) 1.0mm Stainless Steel Wire Rope Silver For Dragline

Descriptions

1,A smooth surface finish is important to prevent wear and corrosion in service.

2,Packing: The coiled wire ropes are wrapped with protective materials, such as plastic films or kraft paper.​ This packaging protects the wire rope from moisture, dust, and mechanical damage during storage and transportation. Additional padding or bracing may be used to secure the wire rope on the reel.

3,Resistant to acids, alkalis, and other chemicals, ideal for industrial and chemical processing applications.

Technical Specification

Structure Nominal Diameter / MM Minimum Breaking Force / KN Reference Weight (KG/1000M)
AISI 304 06Cr19Ni10 AISI 316 06Cr17Ni12Mo2
7×7(6×7+IWS) 0.8 0.461 0.384 2.56
1.0 0.637 0.599 4.00
1.2 1.2 0.915 5.76
1.5 1.67 1.47 9.00
1.8 2.25 1.94 12.96
2.0 2.94 2.55 16.0
2.5 4.1 3.45 25.0
3.0 6.37 5.39 35.1
3.18 7.15 6.14 39.4
3.5 7.64 6.81 47.8
4.0 9.51 8.9 62.4
4.76 12.1 11.3 88.4
5.0 14.7 13.9 97.5
6.0 18.6 18.6 140
8.0 40.6 35.6 250
7×19(6×19+IWS) 1.5 1.63 1.37 9
2.0 2.94 2.55 16
2.5 4.1 3.52 25
3.18 7.85 6.08 39
4.0 10.7 9.51 62
4.76 16.5 13.69 88
5.0 17.4 14.9 98
6.0 23.5 20.8 140
6.35 28.5 23.7 157
8.0 40.1 36.1 250
9.53 53.4 47.9 354
10 63 55 390
12 85.6 75 562
14 123 108 764
16 161 142 998
18 192 169 1264
20 237 209 1560

Functions and Feature

1,The steel wire rope is a helical wire bundle made of steel wires with mechanical properties and geometric dimensions that meet the requirements.

2,Durable and long-lasting, reducing the need for frequent replacements and offering cost-effectiveness.

3,In material handling machinery, it is used for lifting, traction, tensioning and carrying.

4,Available in various sizes and constructions, suitable for lifting, marine, construction, aerospace, and more.

Details Photos

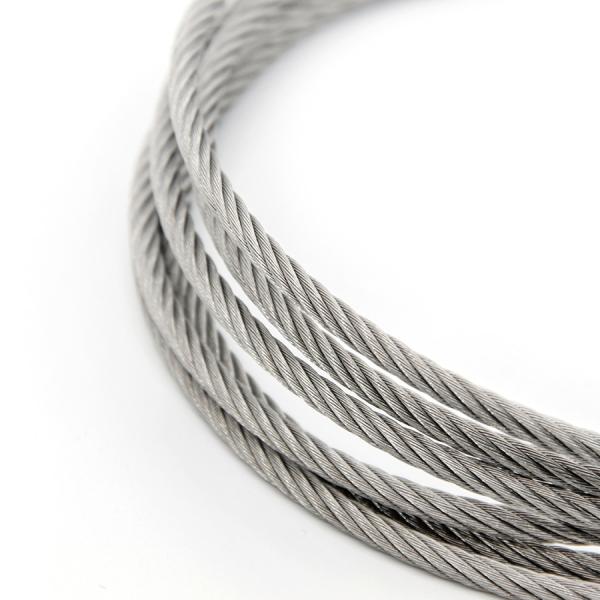

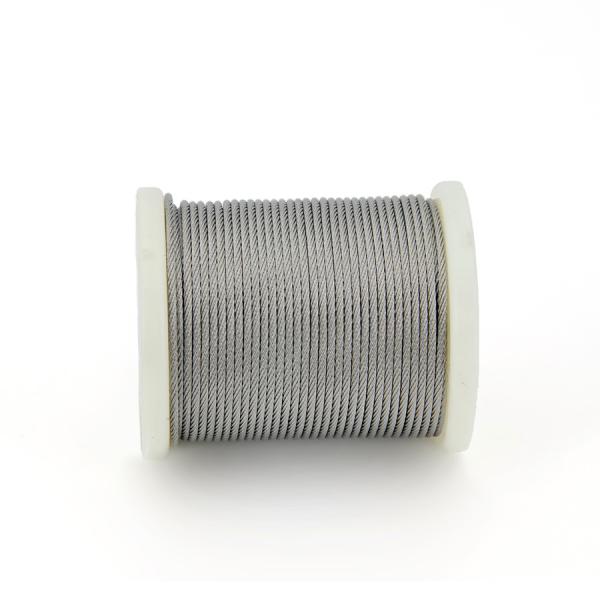

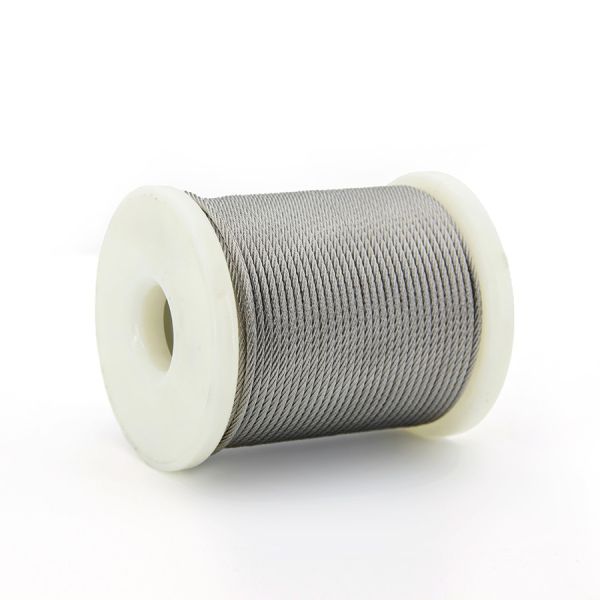

7*7(6*7+IWS) 1.0mm 3 16 Stainless Wire Rope Silver For Dragline

7*7(6*7+IWS) 1.0mm 3 16 Stainless Wire Rope Silver For Dragline

FAQ

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener, we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT, 30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI, pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
