7*7(6*7+iws) 0.8 Mm Easy Operation Durable Stainless Steel Wire Rope
Descriptions
1,High - grade stainless - steel wire rods are sourced from reliable suppliers with a reputation for consistent quality.
2,These wire rods are chosen based on their chemical composition, which should contain appropriate amounts of chromium, nickel, and other alloying elements to ensure excellent corrosion resistance.
3,The mechanical properties of the wire rods, such as tensile strength and elongation, are carefully evaluated to meet the requirements for 80 - strand wire ropes.
4,A comprehensive quality inspection is carried out on each batch of incoming wire rods, including chemical analysis and mechanical testing.
Technical Specification
Structure | Nominal Diameter / MM | Minimum Breaking Force / KN | Reference Weight (KG/1000M) | |
---|---|---|---|---|
AISI 304 06Cr19Ni10 | AISI 316 06Cr17Ni12Mo2 | |||
0.8 | 0.461 | 0.384 | 2.56 | |
1.0 | 0.637 | 0.599 | 4.00 | |
1.2 | 1.2 | 0.915 | 5.76 | |
1.5 | 1.67 | 1.47 | 9.00 | |
1.8 | 2.25 | 1.94 | 12.96 | |
2.0 | 2.94 | 2.55 | 16.0 | |
2.5 | 4.1 | 3.45 | 25.0 | |
3.0 | 6.37 | 5.39 | 35.1 | |
3.18 | 7.15 | 6.14 | 39.4 | |
3.5 | 7.64 | 6.81 | 47.8 | |
4.0 | 9.51 | 8.9 | 62.4 | |
4.76 | 12.1 | 11.3 | 88.4 | |
5.0 | 14.7 | 13.9 | 97.5 | |
6.0 | 18.6 | 18.6 | 140 | |
8.0 | 40.6 | 35.6 | 250 | |
1.5 | 1.63 | 1.37 | 9 | |
2.0 | 2.94 | 2.55 | 16 | |
2.5 | 4.1 | 3.52 | 25 | |
3.18 | 7.85 | 6.08 | 39 | |
4.0 | 10.7 | 9.51 | 62 | |
4.76 | 16.5 | 13.69 | 88 | |
5.0 | 17.4 | 14.9 | 98 | |
6.0 | 23.5 | 20.8 | 140 | |
6.35 | 28.5 | 23.7 | 157 | |
8.0 | 40.1 | 36.1 | 250 | |
9.53 | 53.4 | 47.9 | 354 | |
10 | 63 | 55 | 390 | |
12 | 85.6 | 75 | 562 | |
14 | 123 | 108 | 764 | |
16 | 161 | 142 | 998 | |
18 | 192 | 169 | 1264 | |
20 | 237 | 209 | 1560 |
Functions and Feature
1,The steel wire rope is a helical wire bundle made of steel wires with mechanical properties and geometric dimensions that meet the requirements.
2,A steel wire rope is a rope that is twisted into strands from multiple layers of steel wire, and then a certain number of strands are twisted into a spiral with the core as the center.
3,In material handling machinery, it is used for lifting, traction, tensioning and carrying.
4,The steel wire rope has high strength, light weight, stable work, not easy to be broken suddenly, and reliable work.

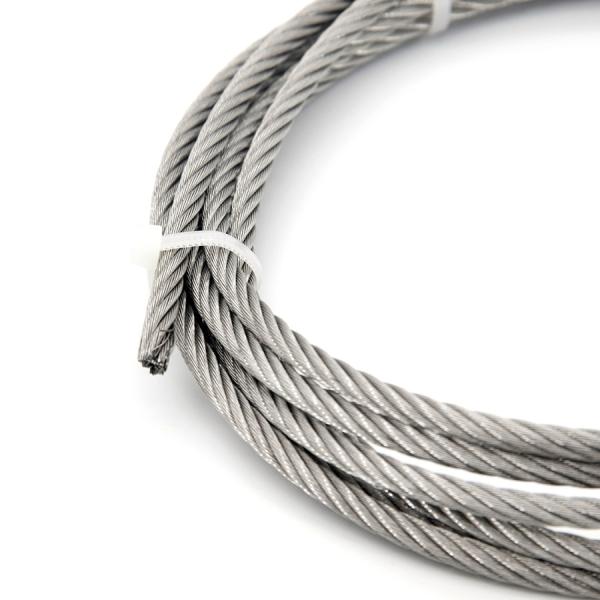

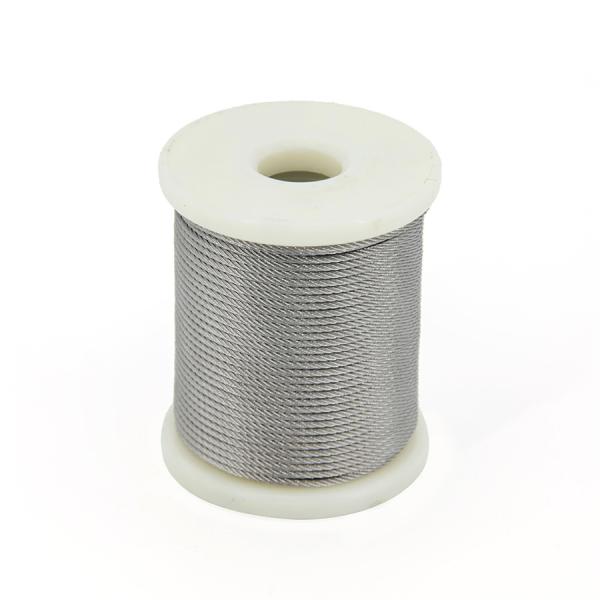

Details Photos
