Stainless Steel Wire Rope 7x19 4mm - 10mm With PVC Sheath For Rigging
Stainless Steel Wire Rope 7x19 4mm - 10mm With PVC Sheath For Rigging
Stainless Steel Wire Rope 7x19 4mm - 10mm With PVC Sheath For Rigging
Stainless Steel Wire Rope 7x19 4mm - 10mm With PVC Sheath For Rigging
Stainless Steel Wire Rope 7x19 4mm - 10mm With PVC Sheath For Rigging
Stainless Steel Wire Rope 7x19 4mm - 10mm With PVC Sheath For Rigging
Stainless Steel Wire Rope 7x19 4mm - 10mm With PVC Sheath For Rigging
Stainless Steel Wire Rope 7x19 4mm - 10mm With PVC Sheath For Rigging
Specifications
Brand Name :
Suyang
Model Number :
7*19
Certification :
IATF16949
Place of Origin :
Jiangsu,China
MOQ :
1000 Meters
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100000000 Meters
Delivery Time :
7-14 Days
Packaging Details :
Wooden roll
Material :
300series
Advantage :
20 Years Manufacure
Color :
customizable
Description

Stainless Steel Wire Rope 7*19 4mm - 10mm With PVC Sheath For Rigging

Descriptions

1,Trusted for hanging lighting, sound systems, or stage curtains in theaters and concerts, offering quiet operation and smooth movement.

2,Secures overhead cables or communication lines, with PVC providing electrical insulation and weatherproofing.

3,PVC layer shields against friction, wear, and sun damage, extending lifespan in outdoor or abrasive settings.

4,Dampens metallic clinking, making it suitable for noise-sensitive environments like theaters or hospitals.

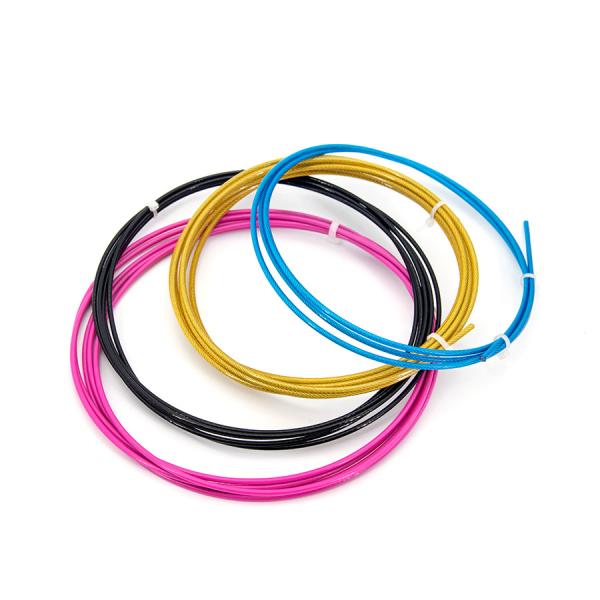

5,Available in multiple colors (e.g., yellow, black) for visibility, safety marking, or aesthetic integration.

Technical Specification

Structure Diameter Before Coating (MM) Diameter After Coating (MM) Minimum Breaking Force (KN) Reference Weight (KG/1000M)
AISI 304 06Cr19Ni10 AISI 316 06Cr17Ni12Mo2
1×7 0.60 0.80 0.382 0.333 2.2
0.80 1.00 0.667 0.588 3.7
1.00 1.20 1 0.91 5.6
1.20 1.50 1.32 1.21 8.2
1.50 2.00 2.26 2.05 13.4
2.00 2.50 4.02 3.63 22.8
1×19 1.00 1.20 0.95 0.814 5.6
1.20 1.50 1.27 1.17 8.2
1.50 2.00 2.25 1.81 13.4
2.00 2.50 3.82 3.24 22.8
2.50 3.00 5.58 5.1 34.7
3.00 4.00 8.03 7.31 53.8
4.00 5.00 13.9 12.2 91.3
7×7 0.80 1.00 0.461 0.384 3.0
1.00 1.20 0.637 0.599 4.6
1.20 1.50 1.2 0.915 6.8
1.50 2.00 1.67 1.47 11.2
2.00 2.50 2.94 2.55 18.8
2.50 3.00 4.1 3.45 28.4
3.00 4.00 6.37 5.39 44.8
4.00 5.00 9.51 8.9 75.3
7×19 2.00 3.00 2.94 2.55 22.3
3.00 4.00 6.37 5.39 44.8
4.00 5.00 10.7 9.51 75.3
5.00 6.00 17.4 14.9 113.8
6.00 8.00 23.5 20.8 179.0
8.00 10.00 40.1 36.1 301.0
10.00 12.00 63 55 455.0
12.00 14.00 85.6 75 641.0
14.00 16.00 123 108 859.0

Functions and Feature

1,High tensile strength due to its 7- strand structure for heavy - load applications.

2,Exceptional corrosion resistance with stainless steel and plastic coating for harsh environments.

3,Good flexibility allowing smooth bending around equipment components.

4,Enhanced wear resistance as the plastic layer reduces friction on steel wires.

Details Photos

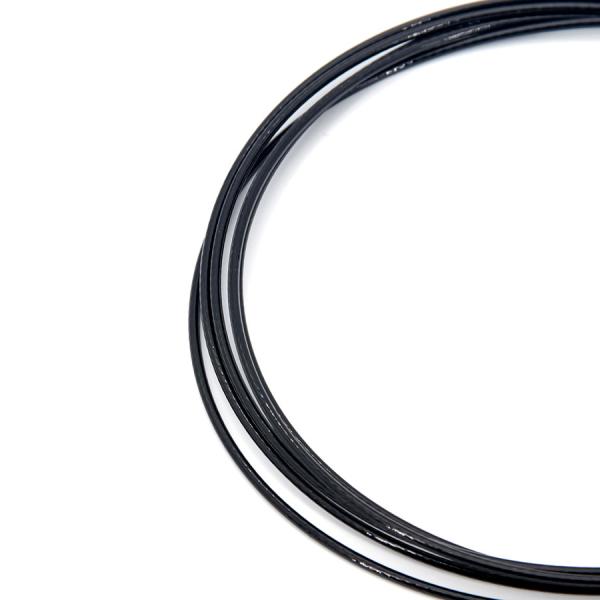

Stainless Steel Wire Rope 7x19 4mm - 10mm With PVC Sheath For Rigging

Stainless Steel Wire Rope 7x19 4mm - 10mm With PVC Sheath For Rigging

FAQ

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener, we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT, 30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI, pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
