0.8mm - 4mm Diameter 7x7 Stainless Steel Wire Rope Before Coating Pvc Coated Wire Rope
0.8mm - 4mm Diameter 7x7 Stainless Steel Wire Rope Before Coating Pvc Coated Wire Rope
0.8mm - 4mm Diameter 7x7 Stainless Steel Wire Rope Before Coating Pvc Coated Wire Rope
0.8mm - 4mm Diameter 7x7 Stainless Steel Wire Rope Before Coating Pvc Coated Wire Rope
0.8mm - 4mm Diameter 7x7 Stainless Steel Wire Rope Before Coating Pvc Coated Wire Rope
0.8mm - 4mm Diameter 7x7 Stainless Steel Wire Rope Before Coating Pvc Coated Wire Rope
Specifications
Brand Name :
Suyang
Model Number :
7*7
Certification :
IATF16949
Place of Origin :
Jiangsu,China
MOQ :
1000 Meters
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100000000 Meters
Delivery Time :
7-14 Days
Packaging Details :
Wooden roll
Standard :
AiSi
Packing :
Wooden reels, pallets
Description

Stainless Steel Wire Cable 7*7 0.8mm - 4mm Diameter Before Coating PVC Coated

Descriptions

1,Non-conductive PVC layer prevents electrical hazards, suitable for outdoor wiring or sensitive equipment.

2,Supports overhead cables or wiring in utility poles, with PVC providing electrical insulation and UV protection.

3,Integrated into patient lifts or wheelchair components for a hygienic, easy-to-clean surface.

4,Stainless steel core combined with PVC coating shields against rust, chemicals, and moisture in harsh environments.

5,PVC coating minimizes wear from friction and protects against sun degradation, ideal for long-term outdoor use.

Technical Specification

Structure Diameter Before Coating (MM) Diameter After Coating (MM) Minimum Breaking Force (KN) Reference Weight (KG/1000M)
AISI 304 06Cr19Ni10 AISI 316 06Cr17Ni12Mo2
1×7 0.60 0.80 0.382 0.333 2.2
0.80 1.00 0.667 0.588 3.7
1.00 1.20 1 0.91 5.6
1.20 1.50 1.32 1.21 8.2
1.50 2.00 2.26 2.05 13.4
2.00 2.50 4.02 3.63 22.8
1×19 1.00 1.20 0.95 0.814 5.6
1.20 1.50 1.27 1.17 8.2
1.50 2.00 2.25 1.81 13.4
2.00 2.50 3.82 3.24 22.8
2.50 3.00 5.58 5.1 34.7
3.00 4.00 8.03 7.31 53.8
4.00 5.00 13.9 12.2 91.3
7×7 0.80 1.00 0.461 0.384 3.0
1.00 1.20 0.637 0.599 4.6
1.20 1.50 1.2 0.915 6.8
1.50 2.00 1.67 1.47 11.2
2.00 2.50 2.94 2.55 18.8
2.50 3.00 4.1 3.45 28.4
3.00 4.00 6.37 5.39 44.8
4.00 5.00 9.51 8.9 75.3
7×19 2.00 3.00 2.94 2.55 22.3
3.00 4.00 6.37 5.39 44.8
4.00 5.00 10.7 9.51 75.3
5.00 6.00 17.4 14.9 113.8
6.00 8.00 23.5 20.8 179.0
8.00 10.00 40.1 36.1 301.0
10.00 12.00 63 55 455.0
12.00 14.00 85.6 75 641.0
14.00 16.00 123 108 859.0

Functions and Feature

1,High tensile strength due to its 7- strand structure for heavy - load applications.

2,Exceptional corrosion resistance with stainless steel and plastic coating for harsh environments.

3,Good flexibility allowing smooth bending around equipment components.

4,Enhanced wear resistance as the plastic layer reduces friction on steel wires.

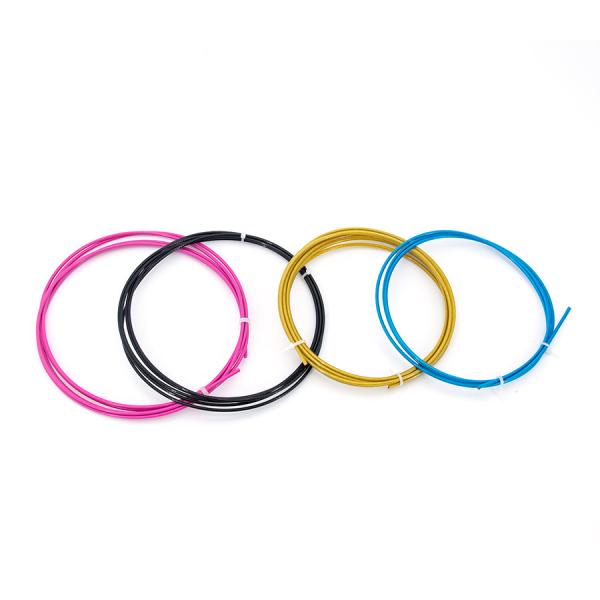

Details Photos

0.8mm - 4mm Diameter 7x7 Stainless Steel Wire Rope Before Coating Pvc Coated Wire Rope

0.8mm - 4mm Diameter 7x7 Stainless Steel Wire Rope Before Coating Pvc Coated Wire Rope

FAQ

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener, we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT, 30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI, pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
