Industries 316 5mm 7x7 Stainless Steel Wire Rope With PTFE Coated
Industries 316 5mm 7x7 Stainless Steel Wire Rope With PTFE Coated
Industries 316 5mm 7x7 Stainless Steel Wire Rope With PTFE Coated
Industries 316 5mm 7x7 Stainless Steel Wire Rope With PTFE Coated
Industries 316 5mm 7x7 Stainless Steel Wire Rope With PTFE Coated
Industries 316 5mm 7x7 Stainless Steel Wire Rope With PTFE Coated
Industries 316 5mm 7x7 Stainless Steel Wire Rope With PTFE Coated
Industries 316 5mm 7x7 Stainless Steel Wire Rope With PTFE Coated
Specifications
Brand Name :
Suyang
Model Number :
7*19
Certification :
QUALITY MANAGEMENT SYSTEM CERTIFICATE
Place of Origin :
Jiangsu, China
MOQ :
1000 Meters
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1 ton/month
Delivery Time :
25-30 days
Packaging Details :
Pallet、Wooden Cases
Material :
304 316 304L 316L
HS Code :
7312100000
Length :
As Required
Coating :
PTFE Teflon
Tensile Strength :
According To Customer Requirements
Description

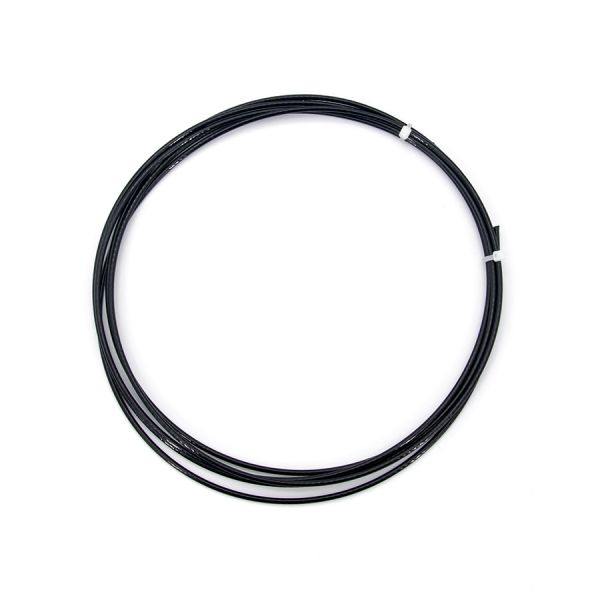

7*7 3mm Stainless Steel Wire Rope With Teflon Coating

Descriptions

  1. Material Composition: The Teflon-coated stainless steel wire rope is composed of high-quality stainless steel strands, providing excellent strength and corrosion resistance. The outer layer is uniformly coated with Teflon (PTFE), enhancing its durability and performance in harsh environments.
  2. Smooth Surface: The Teflon coating creates a smooth, non-stick surface, reducing friction and wear during operation. This makes it ideal for applications requiring minimal resistance and smooth movement.
  3. Chemical Resistance: Thanks to the Teflon coating, the wire rope exhibits exceptional resistance to a wide range of chemicals, including acids, alkalis, and solvents. This makes it suitable for use in chemically aggressive environments.
  4. Temperature Tolerance: The Teflon-coated stainless steel wire rope can withstand extreme temperatures, ranging from very low to high, without compromising its structural integrity or performance. This makes it versatile for both cold and hot working conditions.
  5. Applications: This wire rope is widely used in industries such as marine, aerospace, food processing, and chemical manufacturing. Its combination of strength, flexibility, and resistance to corrosion and chemicals makes it a reliable choice for demanding applications.

Technical Specification

Construction Diameter Before Coating (MM) Diameter After Coating (MM) Minimum Breaking Force (KN) Reference Weight (KG/1000M)

AISI 304

06Cr19Ni10

AISI 316

06Cr17Ni12Mo2
1×7 0.60 0.80 0.382 0.333 2.2
0.80 1.00 0.667 0.588 3.7
1.00 1.20 1 0.91 5.6
1.20 1.50 1.32 1.21 8.2
1.50 2.00 2.26 2.05 13.4
2.00 2.50 4.02 3.63 22.8
1×19 1.00 1.20 0.95 0.814 5.6
1.20 1.50 1.27 1.17 8.2
1.50 2.00 2.25 1.81 13.4
2.00 2.50 3.82 3.24 22.8
2.50 3.00 5.58 5.1 34.7
3.00 4.00 8.03 7.31 53.8
4.00 5.00 13.9 12.2 91.3
7×7 0.80 1.00 0.461 0.384 3.0
1.00 1.20 0.637 0.599 4.6
1.20 1.50 1.2 0.915 6.8
1.50 2.00 1.67 1.47 11.2
2.00 2.50 2.94 2.55 18.8
2.50 3.00 4.1 3.45 28.4
3.00 4.00 6.37 5.39 44.8
4.00 5.00 9.51 8.9 75.3
7×19 2.00 3.00 2.94 2.55 22.3
3.00 4.00 6.37 5.39 44.8
4.00 5.00 10.7 9.51 75.3
5.00 6.00 17.4 14.9 113.8
6.00 8.00 23.5 20.8 179.0
8.00 10.00 40.1 36.1 301.0
10.00 12.00 63 55 455.0
12.00 14.00 85.6 75 641.0
14.00 16.00 123 108 859.0

Details Photos

Industries 316 5mm 7x7 Stainless Steel Wire Rope With PTFE CoatedIndustries 316 5mm 7x7 Stainless Steel Wire Rope With PTFE Coated

FAQ

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us. In order to get more orders and give our clients more convener, we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT, 30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI, pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
