Sysolution IP Broadcasting Extend Function Board R56S Support State Secret Encryption Chip
Sysolution IP Broadcasting Extend Function Board R56S Support State Secret Encryption Chip
Specifications
Brand Name :
Sysolution
Model Number :
R56S
Certification :
FCC，CE certification
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,PayPal
Supply Ability :
30 units per week
Packaging Details :
carton box
Delivery Time :
2-3 working days
Power volatge detector :
4 line power voltage detectors
Power amplifier :
2 33W power amplifier
Sensor :
Smoke sensor
Description

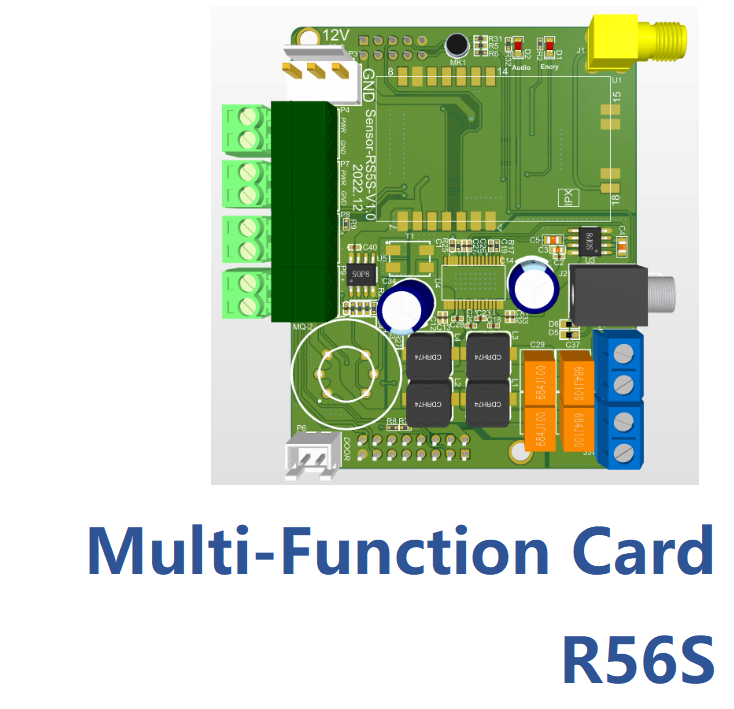

Sysolution IP Broadcasting Extend Function Board R56S

Product Images:

Sysolution IP Broadcasting Extend Function Board R56S Support State Secret Encryption Chip

Specifications :​

  1. Run indicator: checking the sensor working normal or not;
  2. Work together with Sysolution Y50 controller
  3. Standard 2 ways of remote power relay switch to control opening and closing of AC connectors to achieve remote hard power outage;
  4. Maximum support 4 ways of power voltage measurements.
  5. Standard smoke, door open/close sensors interfaces

Description
No. Type
①

10PIN interface: Microphone

Sysolution IP Broadcasting Extend Function Board R56S Support State Secret Encryption Chip

②

16PIN interface: connecting smoke, ADC measure, door open/close, USB

Sysolution IP Broadcasting Extend Function Board R56S Support State Secret Encryption Chip
③ Power interface: 12V power supply
④ 4 ways of power voltage measurement
⑤ 3.5mm audio input
⑥ Amplifier audio output port
⑦ Door open / close sensor interface
⑧ smoke modem
⑨ microphone

Product name &Type Parameters

Multiple function board R56S
  • 1. The radius of synchronous radiation is 2KM (the distance affected by the actual use environment may have deviation);
  • Reserved interfaces for smoke, door opening and closing detection, and power voltage detection;
  • Work with the Y50 sending card, there is no need for additional holes for fixation.

Dimension:

Sysolution IP Broadcasting Extend Function Board R56S Support State Secret Encryption Chip

Cautions:

  1. Pay attention to waterproof ;
  2. Try not to contact the chip and pin to prevent electrostatic damage.
