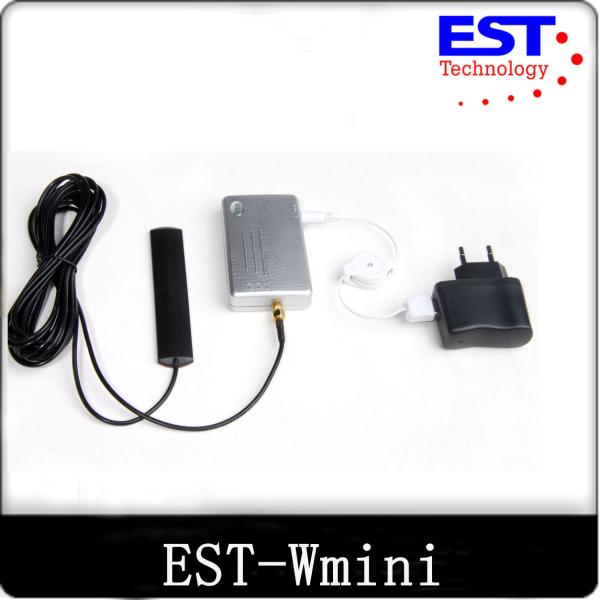

Portable Mini 3G Repeaters EST-W , Cell Phone Signal Repeater for Office

1. Introduction

Portable mini Pico mobile phone signal repeater is a new product which is to solve the inconvenience of mobile phone repeater installation. Therefore, there is an immediate solution to amplify mobile phone signal in a small coverage, it is good choice to have one this portable repeater, without installation and carry-on. This is the necessary device in signal blind area of business trip, traveling, home and office etc.

2. Advantage

1. Exquisite appearance:

Adopting disposable molding and injection appearance, beautiful as crafts, small size and easy-taking.

2. Powerful function:

amplifying all kinds of mobile phone signal within 1-30m²and the best assistant for calling.

3. Automatically amplifying mobile phone signal and no testing instrument

1. Automatically adjusting the uplink and downlink gain

The device will automatically check input power and control output power when connection with power supply, it will automatically calculate the gain of downlink to adjust the uplink gain after 5 minutes, keeping the performance of the device system and amplifying balance to achieve adjusting uplink and downlink gain function.

2. Isolation checking function

The device will checking the antenna isolation after connecting with power supply, if the antenna isolation does not meet the device installation requirement, the indication light will indicate timely and automatically control the device to reduce gain until the device does not cause self-excitation, it will protect the safety of repeater and no interference of mobile phone network.

3. Power indication function

The device will automatically check the output power after connecting with power supply and timely indicate to achieve good communication and largest coverage.

4. Automatically installation indication

The device will timely and accurately display isolation, power etc information to guide the user without any testing instrument to smoothly operate and amplify coverage.

• Technology index

  specification				Function condition
  				Uplink	Downlink
  Model	Wmini		white	1920-1980	2110-2170
  Pass band ripple				＜6.0dB
  Max gain				45±2dB
  Gain Adjust Range				43dB~47dB
  Max Export power		Uplink		5±2dBm
  		Downlink		5±2dBm
  AGC				Automatic gain adjustment range 20dB
  Noise figure(reverse)				<7dB(Max Gain)
  Inter-Modulation Attenuation				9KHz~1GHz ≤-36dBm @ 3KHz
  				1GHz~12.75GHz ≤-36dBm@ 3KHz
  Out-of-band spurious emission				9KHz~1GHz ≤-36dBm @ 3KHz
  				1GHz~12.75GHz ≤-36dBm@ 3KHz
  Transmission delay				<5us
  VSWR				<1:2
  Ambient temperature				-10~+50℃
  Indicator				ISO red(Isolation testing)
  				UP green(uplink power)
  				DN green(downlink power)

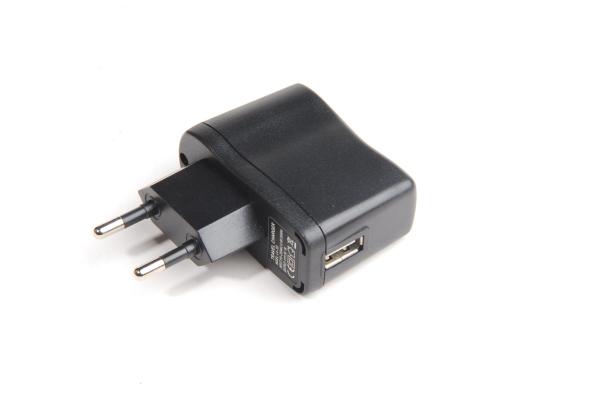

  Power supply				DC+5V
  I/O Impedance				50Ω

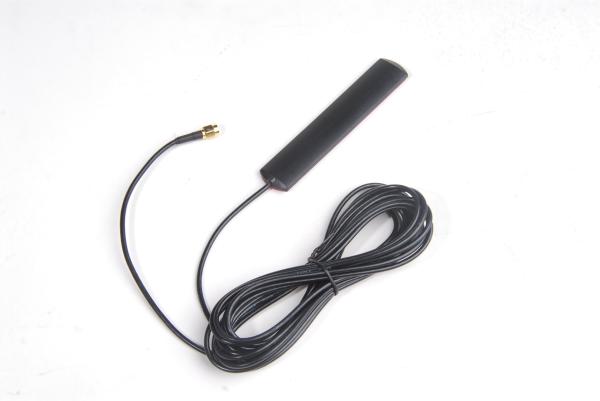

  input/output connector				Base station:SMA
  				Built-in

  Application

  1. Residential areas
  2. Villas
  3. All kinds of entertainments, e.g. KTV
  4. Underground bar and coffee house
  5. Small conference room
  6. Signal blind spot of business trip, traveling, home and offices etc.
